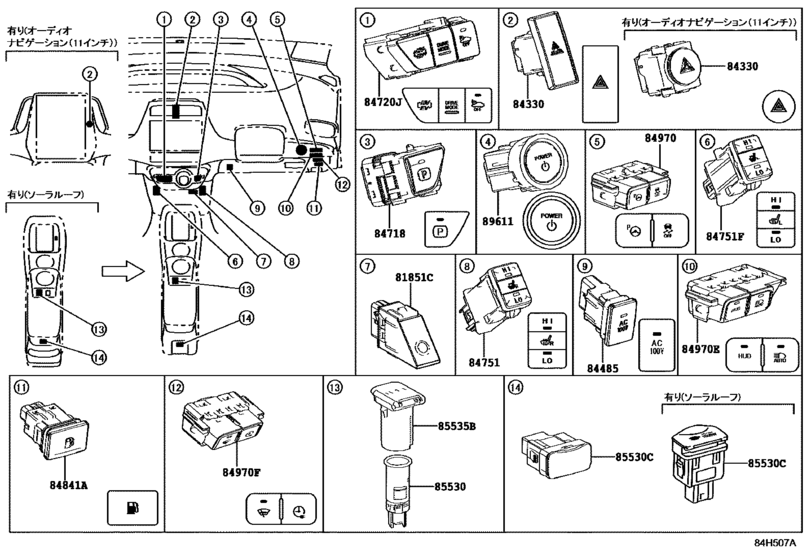

Switch & Relay & Computer ([09.2016 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81851C
|
81851C
81850-47030 Lamp Assy, Indicator[09.2016 -] ZVW52..CBU; ZVW52..S..CBU フロントシート−運転席（マニュアルシート） ＆ 助手席（ウェルキャブ） |
81850-47030 |
US $15.14 |
||
|
84330
|
84330
84332-47050 Switch Assy, Hazard Warning Signal[09.2016 -] ZVW52..S..CBU |
84332-47050 |
US $35.96 |
||
|
84330
|
84330
84332-47060 Switch Assy, Hazard Warning Signal[09.2016 -] ZVW52..A,PREM; ZVW52..S..CBU オーディオ−ＡＶＮ（１１インチ），Ｗｉ−Ｆｉ，＊ＢＴ，ＵＳＢ ＆ ６スピーカ |
84332-47060 |
US $35.96 |
||
|
84485
|
84485
84485-47020 Switch, Power Outlet(Ac100V Accessory Socket)[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
84485-47020 |
US $40.77 |
||
|
84718
|
84718
84718-47090 Switch, Transmission Shift Main[09.2016 -] ZVW52..CBU |
84718-47090 |
US $60.80 |
||
|
84720J
|
84720J
84010-47430 Switch Assy, Pattern Select[09.2016 -] ZVW52..CBU |
84010-47430 |
US $80.08 |
||
|
84751
|
84751
84751-47070 Switch, Seat Heater[09.2016 -] ZVW52..CBU |
84751-47070 |
US $55.18 |
||
|
84751F
|
84751F
84751-47060 Switch, Seat Heater[09.2016 -] ZVW52..CBU |
84751-47060 |
US $55.18 |
||
|
84841A
|
84841A
84841-47020 Switch, Fuel Lid Opener[09.2016 -] ZVW52..CBU |
84841-47020 |
US $31.16 |
||
|
84970
|
84970
84010-47270 Switch Assy, Combination[09.2016 -] ZVW52..A,PREM; ZVW52..S..CBU クリアランス＆バックソナー−有り（クリアランスソナー）＆（＊ＩＣＳ）＆（＊ＩＰＡ） |
84010-47270 |
US $63.63 |
||
|
84970
|
84970
84010-47280 Switch Assy, Combination[09.2016 -] ZVW52..S..CBU |
84010-47280 |
US $47.76 |
||
|
84970E
|
84970E
84010-47250 Switch Assy, Combination No.2[09.2016 -] ZVW52..(A,S)..CBU; ZVW52..S..CBU プリクラッシュセーフティシステム−無し |
84010-47250 |
US $79.92 |
||
|
84970F
|
84970F
84010-47360 Switch Assy, Combination, No.3[09.2016 -] ZVW52..CBU |
84010-47360 |
US $47.76 |
||
|
84970F
|
84970F
84010-47370 Switch Assy, Combination, No.3[09.2016 -] ZVW52..CBU 寒冷地仕様 |
84010-47370 |
US $70.03 |
||
|
85530
|
85530
85530-42010 Socket Assy, Power Outlet, No.1[09.2016 -] ZVW52..CBU |
85530-42010 |
from US $26.60 |
||
|
85530C
|
85530C
85530-75010-C0 Socket Assy, Power Outlet, Rear No.1[09.2016 -] ZVW52..PREM BLACK; ZVW52..(A,S)..CBU アクセサリーコンセント−有り,BLACK |
85530-75010-C0 |
US $26.60 |
||
|
85535B
|
85535B
85535-47030 Cover, Power Outlet Socket, No.1[09.2016 -] ZVW52..CBU |
85535-47030 |
US $8.32 |
||
|
89611
|
89611
89611-30142 Switch, Push Start[09.2016 -] ZVW52..CBU |
89611-30142 |
US $122.30 |
