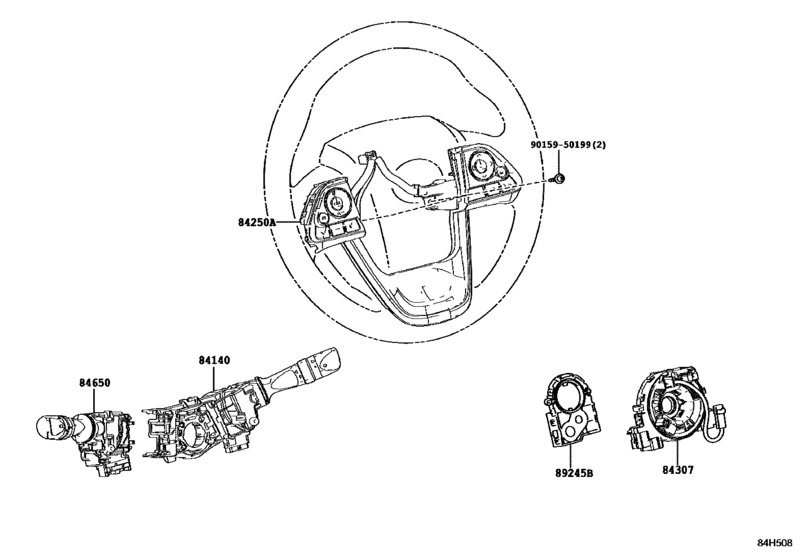

Switch & Relay & Computer ([09.2016 - ] ｽﾃｱﾘﾝｸﾞ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-12A11 Switch Assy, Headlamp Dimmer[09.2016 -] ZVW52..S..CBU |
84140-12A11 |
US $97.68 |
||
|
84140
|
84140
84140-12A21 Switch Assy, Headlamp Dimmer[09.2016 -] ZVW52..S..CBU 寒冷地仕様 |
84140-12A21 |
US $90.27 |
||
|
84140
|
84140
84140-33221 Switch Assy, Headlamp Dimmer[09.2016 -] ZVW52..A,PREM 寒冷地仕様; ZVW52..S..CBU 寒冷地仕様＆フロントフォグランプ−有り |
84140-33221 |
US $121.36 |
||
|
84140
|
84140
84140-33231 Switch Assy, Headlamp Dimmer[09.2016 -] ZVW52..A,PREM; ZVW52..S..CBU フロントフォグランプ−有り |
84140-33231 |
US $111 |
||
|
84250A
|
84250A
84250-47590-C0 Switch Assy, Steering Pad[09.2016 -] ZVW52..S..CBU プリクラッシュセーフティシステム−無し,BLACK,TRIM1#,2#,4# |
84250-47590-C0 |
US $231.50 |
||
|
84250A
|
84250A
84250-47600-C0 Switch Assy, Steering Pad[09.2016 -] ZVW52..(A,S)..CBU BLACK,TRIM1#,2#,4#; ZVW52..PREM BLACK,TRIM1#,2# |
84250-47600-C0 |
US $244.61 |
||
|
84307
|
84307
84307-47170 Cable Sub-Assy, Spiral W/sensor[09.2016 -] ZVW52..CBU |
84307-47170 |
US $342.16 |
||
|
84650
|
84650
84652-47060 Switch Assy, Windshield Wiper[09.2016 -] ZVW52..(A,S)..CBU |
84652-47060 |
US $81.54 |
||
|
89245B
|
89245B
8924B-47010 Sensor, Steering[09.2016 -] ZVW52..CBU |
8924B-47010 |
US $210.24 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
