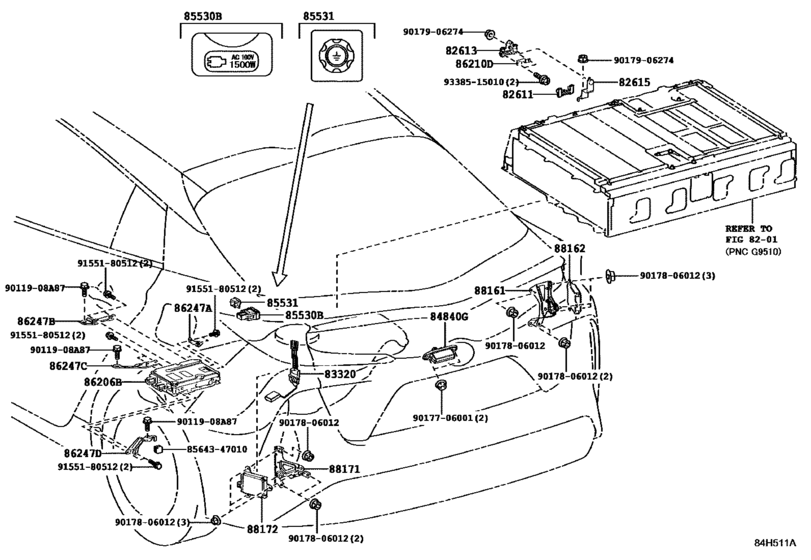

Switch & Relay & Computer ([09.2016 - ] ﾄﾞｱ, ﾙｰﾌ, ﾌﾛｱｰ & ﾗｯｹﾞｰｼﾞ (1609- )CBU) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- ZVW52
- grade
- S
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82611
|
82611
82611-47060 Cover, Fuse Block[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
82611-47060 |
US $4.08 |
||
|
82613
|
82613
82613-47030 Cover, Fuse Block[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
82613-47030 |
US $9.03 |
||
|
82615
|
82615
82615-47010 Bracket, Fuse[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
82615-47010 |
US $6.99 |
||
|
83320
|
83320
83320-47120 Gage Assy, Fuel Sender[09.2016 -] ZVW52..CBU |
83320-47120 |
US $60.72 |
||
|
84840G
|
84840G
84840-47060 Switch Assy, Back Door Opener[09.2016 -] ZVW52..CBU |
84840-47060 |
from US $48.79 |
||
|
85530B
|
85530B
85530-75010-C0 Socket Assy, Power Outlet, Rear No.1[09.2016 -] ZVW52..PREM BLACK; ZVW52..(A,S)..CBU アクセサリーコンセント−有り,BLACK |
85530-75010-C0 |
US $26.60 |
||
|
85531
|
85531
85530-28050-C0 Socket Assy, Power Outlet, No.1[09.2016 -] ZVW52..PREM BLACK,TRIM1#,2#; ZVW52..(A,S)..CBU アクセサリーコンセント−有り,BLACK,TRIM1#,2#,4# |
85530-28050-C0 |
US $26.60 |
||
|
86206B
|
86206B
8624A-47030 Inverter Sub-Assy, Voltage[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
8624A-47030 |
US $1,080.35 |
||
|
86210D
|
86210D
90982-11051 Fuse, High Voltage[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
90982-11051 |
US $8.12 |
||
|
86247A
|
86247A
86247-47210 Bracket, Voltage Inverter[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
86247-47210 |
US $3.93 |
||
|
86247B
|
86247B
86247-47020 Bracket, Voltage Inverter[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
86247-47020 |
US $14.56 |
||
|
86247C
|
86247C
86247-47060 Bracket, Voltage Inverter, No.2[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
86247-47060 |
US $12.23 |
||
|
86247D
|
86247D
86247-47200 Bracket, Voltage Inverter, No.3[09.2016 -] ZVW52..PREM; ZVW52..(A,S)..CBU アクセサリーコンセント−有り |
86247-47200 |
US $11.94 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.94 |
||
|
8564347010
|
8564347010
85643-47010 Cushion, Auto Door Bracket Stopper |
85643-47010 |
US $2.48 |
||
|
9017706001
|
9017706001
90177-06001 New Genuine Part |
90177-06001 |
US $0.96 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.82 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155180512
|
9155180512
91551-80512 New Genuine Part |
91551-80512 |
US $1.76 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
