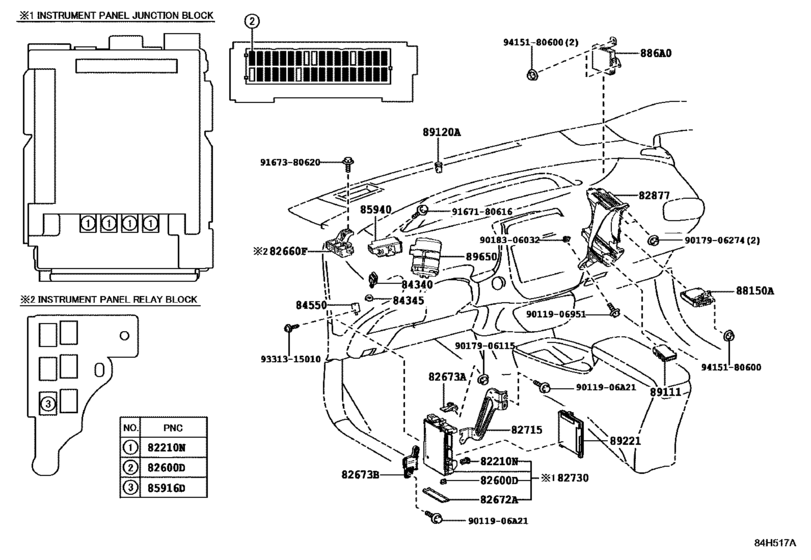

Switch & Relay & Computer ([09.2016 - ] COWL (1609- )) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW52
- grade
- BASE
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
886A0
|
886A0
886A0-47010
Computer Assy, Heat Pump
[09.2016 -] ZVW52 |
886A0-47010 |
— | ||
|
82210N
|
82210N
90982-08306 Fusible Link[09.2016 -] ZVW52 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[09.2016 -] ZVW52 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[09.2016 -] ZVW52 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[09.2016 -] ZVW52 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[09.2016 -] ZVW52 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[09.2016 -] ZVW52 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82660F
|
82660F
82660-47050
Block Assy, Relay
[09.2016 -] ZVW52..L HAWAII SPEC&W(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-K OREA SPEC(*BT, USB & 6 SPEAKER); ZVW52..L CANADA SPEC&W(*ICS & *IP |
82660-47050 |
— | ||
|
82672A
|
82672A
82672-47150 Cover, Junction Block[09.2016 -] ZVW52 |
82672-47150 |
US $3.49 |
||
|
82673A
|
82673A
82673-47110
Bracket, Junction Block
[09.2016 -] ZVW52 |
82673-47110 |
— | ||
|
82673B
|
82673B
82673-47200
Bracket, Junction Block
[09.2016 -] ZVW52 |
82673-47200 |
— | ||
|
82715
|
82715
82715-47700
Bracket,wiring Harness Clamp
[09.2016 -] ZVW52 |
82715-47700 |
— | ||
|
82730
|
82730
82730-47530 Block Assy, Instrument Panel Junction[09.2016 -] ZVW52 |
82730-47530 |
US $176.18 |
||
|
82877
|
82877
82877-47040
Box, Computer Integration, Rh
[09.2016 -] ZVW52 |
82877-47040 |
— | ||
|
84340
|
84340
84340-49075 Switch Assy, Stop Lamp[09.2016 -] ZVW52 |
84340-49075 |
from US $22.21 |
||
|
84340
|
84340
84340-49085 Switch Assy, Stop Lamp[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY) |
84340-49085 |
US $18.64 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[09.2016 -] ZVW52 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[09.2016 -] ZVW52 |
84550-30080 |
from US $18.39 |
||
|
85916D
|
85916D
90987-02027 Relay[09.2016 -] ZVW52..BASE KOREA SPEC; ZVW52..L W(*ICS & *IPA) |
90987-02027 |
from US $31.43 |
||
|
85940
|
85940
85940-47060 Relay Assy, Windshield Wiper[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; ZVW52..L W(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
85940-47060 |
US $139.78 |
||
|
88150A
|
88150A
88150-47140 Computer Assy, Driving Support[09.2016 -] ZVW52; ZVW52..BASE KOREA SPEC; ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY) |
88150-47140 |
US $937.66 |
||
|
89111
|
89111
89111-47070 Computer, Network Gateway[09.2016 -] ZVW52 |
89111-47070 |
US $174.72 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[09.2016 -] ZVW52..L; ZVW52..BASE KOREA SPEC; ZVW52..BASE CANADA SPEC |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-4EM40
Computer, Multiplex Network Body
[09.2016 -] ZVW52..BASE KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT |
89220-4EM40 |
— | ||
|
89221
|
89221
89220-4EM50
Computer, Multiplex Network Body
[09.2016 -] ZVW52 CANADA SPEC |
89220-4EM50 |
— | ||
|
89221
|
89221
89220-4EM70
Computer, Multiplex Network Body
[09.2016 -] ZVW52..BASE HAWAII SPEC |
89220-4EM70 |
— | ||
|
89221
|
89221
89220-4EM90
Computer, Multiplex Network Body
[09.2016 -] ZVW52..BASE |
89220-4EM90 |
— | ||
|
89650
|
89650
89650-47640 Computer Assy, Power Steering[09.2016 -] ZVW52 |
89650-47640 |
US $535.81 |
||
|
9011906A21
|
9011906A21
90119-06A21 New Genuine Part |
90119-06A21 |
US $1.28 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018306032
|
9018306032
90183-06032 New Genuine Part |
90183-06032 |
US $1.12 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
