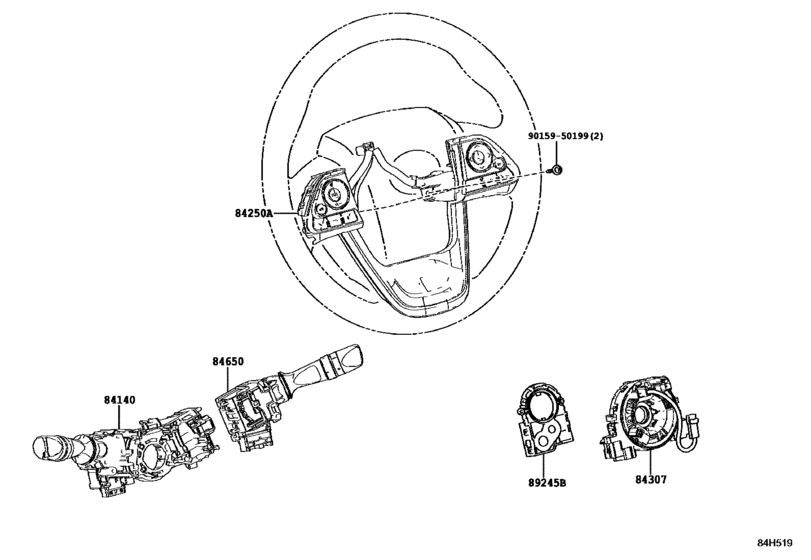

Switch & Relay & Computer ([09.2016 - ] STEERING (1609- )) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- U.S.A.
- Frame
- ZVW52
- grade
- BASE
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- DESTINATION
- USA
- Model
- PRIUS
- From
- 09.2016
- Vehicle Model
- PRIUS PHV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33240
Switch Assy, Headlamp Dimmer
[09.2016 -] ZVW52..BASE KOREA SPEC; ZVW52..L CANADA SPEC&W(*ICS & *IPA) |
84140-33240 |
— | ||
|
84140
|
84140
84140-42160
Switch Assy, Headlamp Dimmer
[09.2016 -] ZVW52..BASE |
84140-42160 |
— | ||
|
84140
|
84140
84140-47180
Switch Assy, Headlamp Dimmer
[09.2016 -] ZVW52 CANADA SPEC |
84140-47180 |
— | ||
|
84250A
|
84250A
84250-47590-C0 Switch Assy, Steering Pad[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT,BLACK,TRIM1#,2#,4# |
84250-47590-C0 |
US $231.50 |
||
|
84250A
|
84250A
84250-47600-C0 Switch Assy, Steering Pad[09.2016 -] ZVW52 CANADA SPEC,BLACK,TRIM1#,2#,4#; ZVW52..L CANADA SPEC&W(*ICS & *IPA),BLACK,TRIM1#,2#,4#; ZVW52..L W(*ICS & *IPA),BLACK,TRIM1#,2#,4# |
84250-47600-C0 |
US $244.61 |
||
|
84250A
|
84250A
84250-47610-C0
Switch Assy, Steering Pad
[09.2016 -] ZVW52 BLACK & WHITE,TRIM1#,2#,4# |
84250-47610-C0 |
— | ||
|
84307
|
84307
84307-47161
Cable Sub-Assy, Spiral W/sensor
[09.2016 -] ZVW52 |
84307-47161 |
— | ||
|
84307
|
84307
84307-47180
Cable Sub-Assy, Spiral W/sensor
[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITHOUT; ZVW52 CANADA SPEC; ZVW52..L CANADA SPEC&W(*ICS & *IPA); ZVW52..L W(*ICS & *IPA) |
84307-47180 |
— | ||
|
84650
|
84650
84652-33480
Switch Assy, Windshield Wiper
[09.2016 -] ZVW52 CANADA SPEC |
84652-33480 |
— | ||
|
84650
|
84650
84652-33490
Switch Assy, Windshield Wiper
[09.2016 -] ZVW52..BASE KOREA SPEC&W(HEAD UP DISPLAY)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; ZVW52..L CANADA SPEC&W(*ICS & *IPA)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
84652-33490 |
— | ||
|
84650
|
84650
84652-62010
Switch Assy, Windshield Wiper
[09.2016 -] ZVW52 |
84652-62010 |
— | ||
|
89245B
|
89245B
8924B-47010 Sensor, Steering[09.2016 -] ZVW52 |
8924B-47010 |
from US $210.24 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
