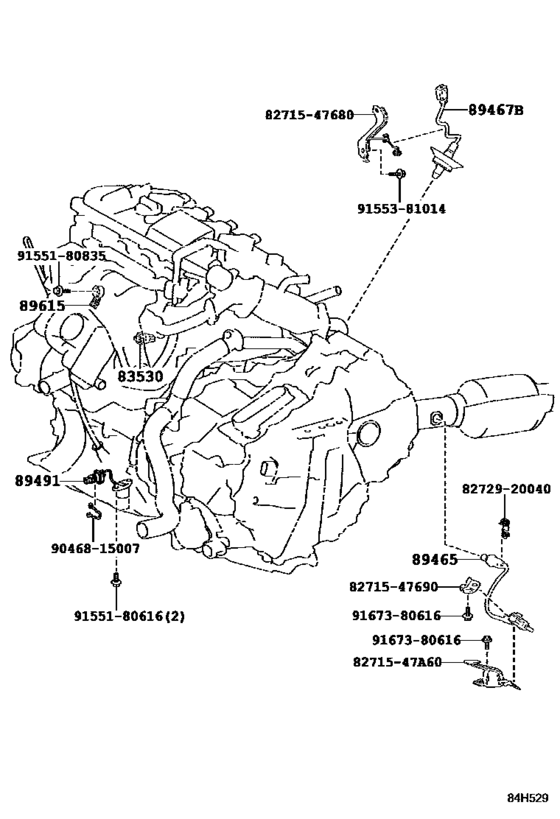

Switch & Relay & Computer ([09.2016 - ] ENGINE (1609- )) Diagram Toyota PRIUS
- Year
- 2016 - 2018
- Sales region
- Europe
- Frame
- ZVW52
- grade
- BASE
- ENGINE
- 2ZRFXE
- DESTINATION
- EUR
- Model
- PRIUS
- From
- 09.2016
- Gear Shift Type
- CVT
- Vehicle Model
- PRIUS PHV
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-12060 Switch Assy, Oil Pressure (For Engine)[09.2016 -] ZVW52 YAZAKI |
83530-12060 |
from US $25.82 |
||
|
89465
|
89465
89465-47090 Sensor, Oxygen[09.2016 -] ZVW52 |
89465-47090 |
from US $94.72 |
||
|
89467B
|
89467B
89467-47030 Sensor, Air Fuel Ratio[09.2016 -] ZVW52 |
89467-47030 |
from US $146.52 |
||
|
89491
|
89491
89491-47010 Sensor, Engine Oil Level[09.2016 -] ZVW52 |
89491-47010 |
US $44.84 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[09.2016 -] ZVW52 |
89615-20090 |
from US $36.02 |
||
|
8271547A60
|
8271547A60
82715-47A60 Bracket,wiring Harness Clamp |
82715-47A60 |
US $12.08 |
||
|
8271547680
|
8271547680
82715-47680 Bracket,wiring Harness Clamp |
82715-47680 |
US $7.57 |
||
|
8271547690
|
8271547690
82715-47690 Bracket,wiring Harness Clamp |
82715-47690 |
US $3.49 |
||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9046815007
|
9046815007
90468-15007 New Genuine Part |
90468-15007 |
US $1.28 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.72 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $1.28 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
