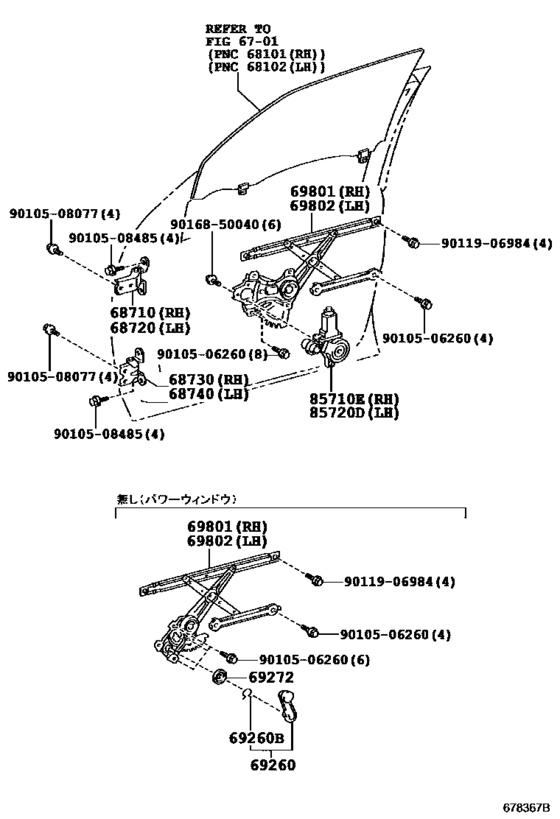

Front Door Window Regulator & Hinge ([09.2014 - ] (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[09.2014 -] NCP16#,NSP160 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[09.2014 -] NCP16#,NSP160 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[09.2014 -] NCP16#,NSP160 |
68730-52010 |
from US $31.16 |
||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[09.2014 -] NCP16#,NSP160 |
68740-52010 |
from US $28.72 |
||
|
69260
|
69260
69260-52070-C0 Handle Assy, Front Door Window Regulator[09.2014 -] NCP16#,NSP160..DXCOM,UL BLACK,TRIM1# |
69260-52070-C0 |
US $15.35 |
||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL |
90520-01274 |
from US $1.11 |
||
|
69272
|
69272
69285-22010
Escutcheon, Door Regulator Handle(For Front Door)
[09.2014 -] NCP16#,NSP160..DXCOM,UL |
69285-22010 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[09.2014 -] NCP16#,NSP160..DXCOM,UL |
69285-22010-08 |
from US $3.20 |
||
|
69801
|
69801
69801-52080 Regulator Sub-Assy, Front Door Window, Rh[09.2014 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
69801-52080 |
US $59.89 |
||
|
69802
|
69802
69820-52190 Regulator Sub-Assy, Front Door Window, Lh[09.2014 -] NCP16#,NSP160..DX,DXCOM,U,UL |
69820-52190 |
US $59.89 |
||
|
85710E
|
85710E
85710-42080 Motor Assy, Power Window Regulator, Rh[09.2014 -] NCP16#,NSP160..DXCOM,F,GL,TX,UL,ULX |
85710-42080 |
US $292.60 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.74 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
