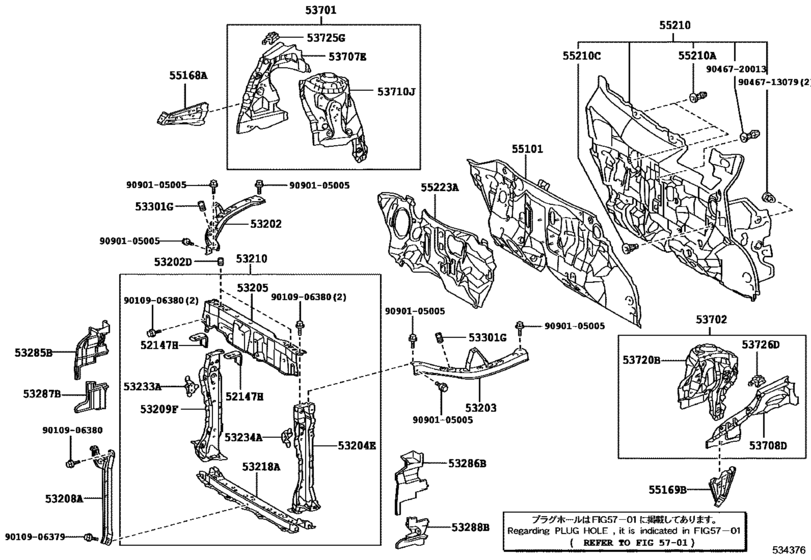

Front Fender Apron & Dash Panel ([09.2014 - ] (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52147H
|
52147H
52147-52120 Bracket, Front Bumper Mounting[09.2014 -] NCP16#,NSP160 |
52147-52120 |
US $10.40 |
||
|
53202
|
53202
53202-52220 Support Sub-Assy, Radiator, Rh[09.2014 -] NCP16#,NSP160 |
53202-52220 |
US $51.83 |
||
|
53202D
|
53202D
90541-15111 Cushion, Radiator Support[09.2014 -] NCP16#,NSP160 |
90541-15111 |
from US $2.13 |
||
|
53203
|
53203
53203-52210 Support Sub-Assy, Radiator, Lh[09.2014 -] NCP16#,NSP160 |
53203-52210 |
US $51.83 |
||
|
53204E
|
53204E
53204-52020 Brace Sub-Assy, Radiator Support To Cross Member[09.2014 -] NCP16#,NSP160 |
53204-52020 |
US $85.84 |
||
|
53205
|
53205
53205-52170 Support Sub-Assy, Radiator, Upper[09.2014 -] NCP16#,NSP160 |
53205-52170 |
US $97.68 |
||
|
53208A
|
53208A
53208-52150 Support Sub-Assy, Hood Lock[09.2014 -] NCP16#,NSP160 |
53208-52150 |
US $33.44 |
||
|
53209F
|
53209F
53209-52030 Brace Sub-Assy, Radiator Support To Cross Member, Rh[09.2014 -] NCP16#,NSP160 |
53209-52030 |
US $85.84 |
||
|
53210
|
53210
53210-52210 Support Assy, Radiator[09.2014 -] NCP16#,NSP160 |
53210-52210 |
US $358.40 |
||
|
53218A
|
53218A
53028-52091 Support Sub-Assy, Radiator, Lower[09.2014 -] NCP16#,NSP160 |
53028-52091 |
US $119.88 |
||
|
53233A
|
53233A
53233-52070 Bracket, Headlamp, No.1 Rh[09.2014 -] NCP16#,NSP160 |
53233-52070 |
US $6.08 |
||
|
53234A
|
53234A
53234-52080 Bracket, Headlamp, No.1 Lh[09.2014 -] NCP16#,NSP160 |
53234-52080 |
US $6.08 |
||
|
53285B
|
53285B
53285-52480 Seal, Radiator Side Air, No.1[09.2014 -] NCP16#,NSP160 |
53285-52480 |
US $22.19 |
||
|
53286B
|
53286B
53286-52400 Seal, Radiator Side Air, No.2[09.2014 -] NCP16#,NSP160 |
53286-52400 |
US $22.19 |
||
|
53287B
|
53287B
53287-52240 Extension, Radiator Support, Rh[09.2014 -] NCP16#,NSP160 |
53287-52240 |
US $16.57 |
||
|
53288B
|
53288B
53288-52230 Extension, Radiator Support, Lh[09.2014 -] NCP16#,NSP160 |
53288-52230 |
US $17.18 |
||
|
53301G
|
53301G
90541-15037 Cushion, Radiator SupportRADIATOR SUPPORT [09.2014 -] NCP16#,NSP160 |
90541-15037 |
from US $3.20 |
||
|
53701
|
53701
53701-52240 Apron Sub-Assy, Front Fender, Rh[09.2014 -] NCP16#,NSP160 |
53701-52240 |
US $190.74 |
||
|
53702
|
53702
53702-52240 Apron Sub-Assy, Front Fender, Lh[09.2014 -] NCP16#,NSP160 |
53702-52240 |
US $190.74 |
||
|
53707E
|
53707E
53707-52070 Apron Sub-Assy, Fender Side, Rh[09.2014 -] NCP16#,NSP160 |
53707-52070 |
US $97.55 |
||
|
53708D
|
53708D
53708-52070 Apron Sub-Assy, Fender Side, Lh[09.2014 -] NCP16#,NSP160 |
53708-52070 |
US $87.36 |
||
|
53710J
|
53710J
53710-52020 Apron Assy, Front Fender, Rh[09.2014 -] NCP16#,NSP160 |
53710-52020 |
US $97.55 |
||
|
53720B
|
53720B
53720-52030 Apron Assy, Front Fender, Lh[09.2014 -] NCP16#,NSP160 |
53720-52030 |
US $97.55 |
||
|
53725G
|
53725G
53725-52020 Apron, Front Fender No.2 Side, Rh[09.2014 -] NCP16#,NSP160 |
53725-52020 |
US $25.54 |
||
|
53726D
|
53726D
53726-52020 Apron, Front Fender No.2 Side, Lh[09.2014 -] NCP16#,NSP160 |
53726-52020 |
US $25.54 |
||
|
55101
|
55101
55101-52630 Panel Sub-Assy, Dash[09.2014 -] NCP16#,NSP160 |
55101-52630 |
US $173.26 |
||
|
55168A
|
55168A
55168-52150 Bracket, Front Fender Mounting, Rh[09.2014 -] NCP16#,NSP160 |
55168-52150 |
US $20.06 |
||
|
55169B
|
55169B
55169-52150 Bracket, Front Fender Mounting, Lh[09.2014 -] NCP16#,NSP160 |
55169-52150 |
US $20.52 |
||
|
55210
|
55210
55210-52410 Insulator Assy, Dash Panel[09.2014 -] NCP16#,NSP160 |
55210-52410 |
US $84.45 |
||
|
55210A
|
55210A
90467-11122 Clip[09.2014 -] NCP16#,NSP160 |
90467-11122 |
US $1.60 |
||
|
55210C
|
55210C
90467-11123 Clip[09.2014 -] NCP16#,NSP160 |
90467-11123 |
US $1.51 |
||
|
55223A
|
55223A
55223-52101 Insulator, Dash Panel, Outer[09.2014 -] NCP16#,NSP160 |
55223-52101 |
US $51.83 |
||
|
9010906379
|
9010906379
90109-06379 New Genuine Part |
90109-06379 |
US $0.96 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046713079
|
9046713079
90467-13079 Clip |
90467-13079 |
US $1.92 |
||
|
9046720013
|
9046720013
90467-20013 Clip |
90467-20013 |
US $1.51 |
||
|
9090105005
|
9090105005
90901-05005 New Genuine Part |
90901-05005 |
US $1.44 |
