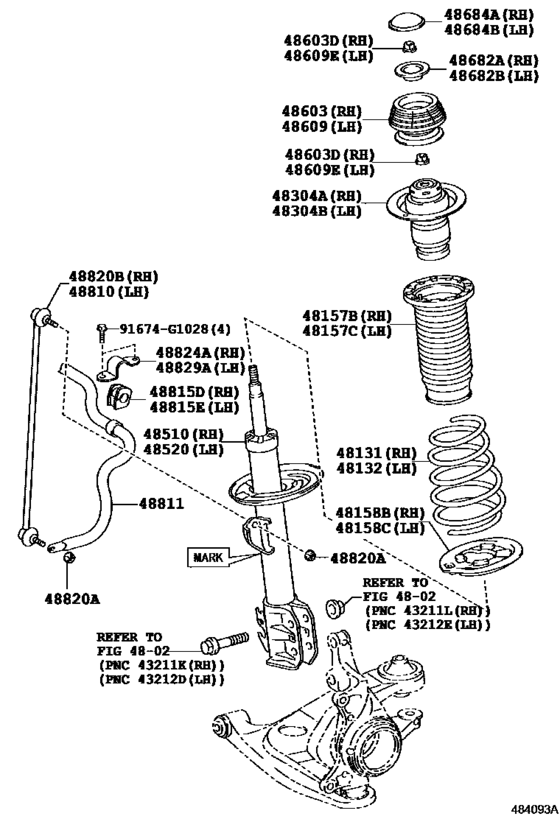

Front Spring & Shock Absorber ([09.2014 - ] (1409- )) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-52M80 Spring, Front Coil, Rh[09.2014 -] NCP165 |
48131-52M80 |
US $78.62 |
||
|
48132
|
48132
48131-52M80 Spring, Front Coil, Rh[09.2014 -] NCP165 |
48131-52M80 |
US $78.62 |
||
|
48157B
|
48157B
48157-52040 Insulator, Front Coil Spring, Upper[09.2014 - 05.2016] NCP16#,NSP160 |
48157-52040 |
US $24.17 |
||
|
48157B
|
48157B
48157-52050 Insulator, Front Coil Spring, Upper[05.2016 -] NCP16#,NSP160 |
48157-52050 |
US $15.84 |
||
|
48157C
|
48157C
48157-52040 Insulator, Front Coil Spring, Upper[09.2014 - 05.2016] NCP16#,NSP160 |
48157-52040 |
US $24.17 |
||
|
48157C
|
48157C
48157-52050 Insulator, Front Coil Spring, Upper[05.2016 -] NCP16#,NSP160 |
48157-52050 |
US $15.84 |
||
|
48158B
|
48158B
48158-52010 Insulator, Front Coil Spring, Lower[09.2014 - 05.2016] NCP16#,NSP160 |
48158-52010 |
US $17.48 |
||
|
48158B
|
48158B
48158-52020 Insulator, Front Coil Spring, Lower[05.2016 -] NCP16#,NSP160 |
48158-52020 |
US $11.84 |
||
|
48158C
|
48158C
48158-52010 Insulator, Front Coil Spring, Lower[09.2014 - 05.2016] NCP16#,NSP160 |
48158-52010 |
US $17.48 |
||
|
48158C
|
48158C
48158-52020 Insulator, Front Coil Spring, Lower[05.2016 -] NCP16#,NSP160 |
48158-52020 |
US $11.84 |
||
|
48304A
|
48304A
48304-52101 Bumper Sub-Assy, Front Spring, No.1[09.2014 -] NCP165 |
48304-52101 |
US $31.46 |
||
|
48304B
|
48304B
48304-52101 Bumper Sub-Assy, Front Spring, No.1[09.2014 -] NCP165 |
48304-52101 |
US $31.46 |
||
|
48510
|
48510
48510-52K20 Absorber Assy, Shock, Front Rh[09.2014 - 05.2016] NCP165 マーク ４８５１０−５２Ｋ２０ |
48510-52K20 |
US $358.40 |
||
|
48510
|
48510
48510-52N70 Absorber Assy, Shock, Front Rh[05.2016 -] NCP165 マーク ４８５１０−５２Ｎ７０ |
48510-52N70 |
US $266.56 |
||
|
48520
|
48520
48520-52720 Absorber Assy, Shock, Front Lh[09.2014 - 05.2016] NCP165 マーク ４８５２０−５２７２０ |
48520-52720 |
US $358.40 |
||
|
48520
|
48520
48520-52B70 Absorber Assy, Shock, Front Lh[05.2016 -] NCP165 マーク ４８５２０−５２Ｂ７０ |
48520-52B70 |
US $296.80 |
||
|
48603
|
48603
48609-52100 Support Sub-Assy, Front Suspension[09.2014 -] NCP16#,NSP160 |
48609-52100 |
from US $55.94 |
||
|
48603D
|
48603D
90179-12145 Nut[09.2014 -] NCP16#,NSP160 |
90179-12145 |
from US $0.92 |
||
|
48609
|
48609
48609-52100 Support Sub-Assy, Front Suspension[09.2014 -] NCP16#,NSP160 |
48609-52100 |
from US $55.94 |
||
|
48609E
|
48609E
90179-12145 Nut[09.2014 -] NCP16#,NSP160 |
90179-12145 |
from US $0.92 |
||
|
48682A
|
48682A
48682-52040 Support, Front Suspension, No.2[09.2014 -] NCP16#,NSP160 |
48682-52040 |
from US $6.56 |
||
|
48682B
|
48682B
48682-52040 Support, Front Suspension, No.2[09.2014 -] NCP16#,NSP160 |
48682-52040 |
from US $6.56 |
||
|
48684A
|
48684A
48684-52020 Cover, Bearing Dust[09.2014 -] NCP16#,NSP160 |
48684-52020 |
from US $8 |
||
|
48684B
|
48684B
48684-52020 Cover, Bearing Dust[09.2014 -] NCP16#,NSP160 |
48684-52020 |
from US $8 |
||
|
48810
|
48810
48820-52030 Link Assy, Front Stabilizer[09.2014 -] NCP16#,NSP160 |
48820-52030 |
from US $66.12 |
||
|
48811
|
48811
48811-52280 Bar, Stabilizer, Front[09.2014 -] NCP165 |
48811-52280 |
US $105.60 |
||
|
48815D
|
48815D
48815-52090 Bush, Front Stabilizer Bar, No.1[09.2014 -] NCP16#,NSP160 |
48815-52090 |
from US $8.80 |
||
|
48815E
|
48815E
48815-52090 Bush, Front Stabilizer Bar, No.1[09.2014 -] NCP16#,NSP160 |
48815-52090 |
from US $8.80 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[09.2014 -] NCP16#,NSP160 |
90179-12151 |
from US $0.92 |
||
|
48820B
|
48820B
48820-52030 Link Assy, Front Stabilizer[09.2014 -] NCP16#,NSP160 |
48820-52030 |
from US $66.12 |
||
|
48824A
|
48824A
48824-52060 Bracket, Front Stabilizer, No.1[09.2014 -] NCP16#,NSP160 |
48824-52060 |
US $15.96 |
||
|
48829A
|
48829A
48824-52060 Bracket, Front Stabilizer, No.1[09.2014 -] NCP16#,NSP160 |
48824-52060 |
US $15.96 |
||
|
91674G1028
|
91674G1028
91674-G1028 BOLT FLANGE |
91674-G1028 |
US $1.92 |
