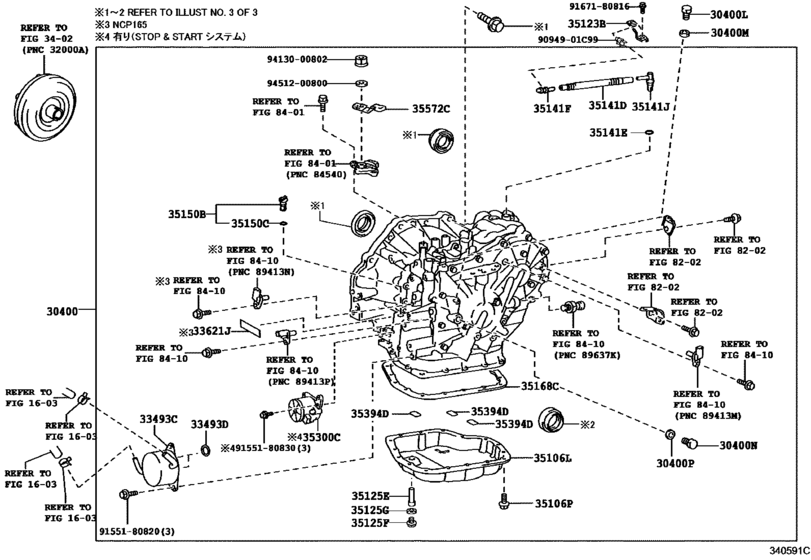

Transaxle Assy(Cvt) ([09.2014 - ] K310F,K312 (1409- )NCP16#) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NCP165
- grade
- DXCOM
- body
- VAN
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- Model
- PROBOX
- From
- 09.2014
- Vehicle Model
- PROBOX
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-52251 Transaxle Assy, Continuously Variable[09.2014 -] NCP165 Ｋ３１０Ｆ |
30400-52251 |
US $4,236.96 |
||
|
30400L
|
30400L
90341-12025 Plug, No.4[09.2014 -] NCP16# |
90341-12025 |
from US $3.04 |
||
|
30400M
|
30400M
90430-12221 Gasket[09.2014 -] NCP16# |
90430-12221 |
from US $1.07 |
||
|
30400N
|
30400N
90341-18077 Plug , Filler(CVT FE)[09.2014 -] NCP16#,NSP160 |
90341-18077 |
from US $3.04 |
||
|
30400P
|
30400P
90430-18008 Gasket[09.2014 -] NCP16#,NSP160 |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
30400P
|
30400P
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.2014 -] NCP16#,NSP160 |
90430-T0021 |
US $0.99 |
||
|
33493C
|
33493C
33493-52040 Cooler, Transmission Oil[09.2014 -] NCP165 |
33493-52040 |
US $137.64 |
||
|
33493D
|
33493D
90301-20012 Ring, O (For Transmission Oil Cooler)[09.2014 -] NCP16#,NSP160 |
90301-20012 |
from US $2.55 |
||
|
33621J
|
33621J
33621-12150 Label, Transaxle Oil Information[09.2014 -] NCP165 |
33621-12150 |
US $1.60 |
||
|
35106L
|
35106L
35106-12130 Pan Sub-Assy, Transaxle Oil(Cvt)[09.2014 - 12.2015] NCP165 |
35106-12130 |
US $47.17 |
||
| replacement | |||||
|
35106L
|
35106L
35106-12131 Pan Sub-Assy, Transaxle Oil(Cvt)[09.2014 - 12.2015] NCP165 |
35106-12131 |
US $48.34 |
||
|
35106L
|
35106L
35106-12131 Pan Sub-Assy, Transaxle Oil(Cvt)[01.2016 -] NCP165 |
35106-12131 |
US $48.34 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[09.2014 -] NCP16# |
90119-06173 |
from US $0.82 |
||
|
35123B
|
35123B
35123-52030 Skirt,transmission Breather[09.2014 -] NCP16# |
35123-52030 |
US $4.08 |
||
|
35125E
|
35125E
35125-12400 Tube, Transmission Oil Filler, No.1[09.2014 -] NCP165 |
35125-12400 |
from US $1.29 |
||
|
35125F
|
35125F
90341-12034 Plug Sub-Assy, Drain (Atm)[09.2014 -] NCP16#,NSP160 |
90341-12034 |
from US $3.04 |
||
|
35125G
|
35125G
90430-12008 Gasket (For Shift Inter Lock Plate)[09.2014 -] NCP16#,NSP160 |
90430-12008 |
from US $0.88 |
||
|
35141D
|
35141D
35121-52020 Hose(For Breather Plug)[09.2014 -] NCP16# |
35121-52020 |
US $7.86 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[09.2014 - 04.2016] NCP16# |
90301-06005 |
from US $2.32 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[05.2016 -] NCP16# |
90301-06021 |
US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[09.2014 -] NCP16#,NSP160 |
90930-03149 |
from US $3.52 |
||
|
35141J
|
35141J
90930-03191 Plug, Breather, No.1(Cvt)[09.2014 -] NCP16# |
90930-03191 |
US $4.16 |
||
|
35150B
|
35150B
35150-48010 Plug, Transaxle Hole[09.2014 -] NCP16# |
35150-48010 |
US $4.48 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[09.2014 -] NCP16# |
90301-09173 |
from US $2.11 |
||
|
35168C
|
35168C
35168-12091 Gasket, Transaxle Oil Pan(Cvt)[09.2014 -] NCP16# |
35168-12091 |
from US $5.92 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[09.2014 -] NCP16# |
35394-30011 |
from US $5.69 |
||
|
35572C
|
35572C
35572-12160 Lever, Transmission Control Shaft[09.2014 -] NCP165 |
35572-12160 |
US $5.24 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
