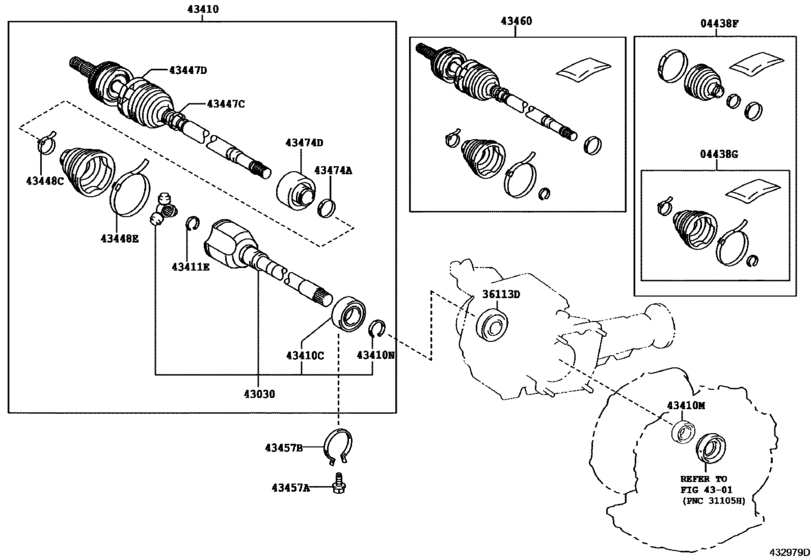

Front Drive Shaft ([06.2002 - ] ﾗｲﾄ (0206- )NCP55,59) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2013
- Sales region
- Japan
- Frame
- NCP59
- grade
- TX
- body
- WG
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- Model
- SUCCEED
- From
- 06.2002
- To
- 10.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- SUCCEED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-52530 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2006 - 09.2009] NCP55,59 |
04427-52530 |
US $120.85 |
||
| replacement | |||||
|
04438F
|
04438F
04427-52872 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2006 - 09.2009] NCP55,59 |
04427-52872 |
US $117.06 |
||
|
04438F
|
04438F
04427-52531
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2009 - 11.2009] NCP55,59 |
04427-52531 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-52872 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2009 - 11.2009] NCP55,59 |
04427-52872 |
US $117.06 |
||
|
04438F
|
04438F
04427-52540
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[12.2003 - 03.2006] NCP55,59 |
04427-52540 |
— | ||
|
04438F
|
04438F
04427-52870 Boot Kit, Front Drive Shaft, In & Outboard, RhFRONT DRIVE SHAFT, IN & OUTBOARD, RH [11.2009 - 03.2010] NCP55,59 |
04427-52870 |
US $120.85 |
||
| replacement | |||||
|
04438F
|
04438F
04427-52872 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.2009 - 03.2010] NCP55,59 |
04427-52872 |
US $117.06 |
||
|
04438F
|
04438F
04427-52871 Boot Kit, Front Drive Shaft, In & Outboard, Rh[03.2010 - 08.2014] NCP55,59 |
04427-52871 |
US $100.46 |
||
| replacement | |||||
|
04438F
|
04438F
04427-52872 Boot Kit, Front Drive Shaft, In & Outboard, Rh[03.2010 - 08.2014] NCP55,59 |
04427-52872 |
US $117.06 |
||
|
04438F
|
04438F
04438-52063 Boot Kit, Front Drive Shaft, In & Outboard, Rh[06.2002 - 04.2003] NCP55,59 |
04438-52063 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04427-52540
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[06.2002 - 04.2003] NCP55,59 |
04427-52540 |
— | ||
|
04438F
|
04438F
04438-52080 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2003 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
04438-52080 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04427-52540
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[04.2003 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
04427-52540 |
— | ||
|
04438G
|
04438G
04437-52441 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [09.2009 -] NCP55,59 |
04437-52441 |
US $61.59 |
||
|
04438G
|
04438G
04438-32231 Boot Kit, Front Drive Shaft Inboard Joint, Rh[06.2002 - 04.2003] NCP55,59 |
04438-32231 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[06.2002 - 04.2003] NCP55,59 |
04438-32290 |
US $87.36 |
||
|
04438G
|
04438G
04438-52230 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2003 - 09.2009] NCP55,59..DX,F,GL,TX,U,UL |
04438-52230 |
US $74.26 |
||
| replacement | |||||
|
04438G
|
04438G
04437-12400 Boot Kit, Front Drive Shaft Inboard Joint, Lh[04.2003 - 09.2009] NCP55,59..DX,F,GL,TX,U,UL |
04437-12400 |
from US $67.74 |
||
|
36113D
|
36113D
90311-36006 Seal, Oil (For Transfer Case Rh)[06.2002 - 09.2014] NCP55,59 |
90311-36006 |
from US $8 |
||
|
43030
|
43030
43030-52010
Joint Assy, Front Drive Inboard, Rh
[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL |
43030-52010 |
— | ||
|
43410
|
43410
43410-52030 Shaft Assy, Front Drive, Rh[06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
43410-52030 |
US $1,070.16 |
||
| replacement | |||||
|
43410
|
43410
43410-52031 Shaft Assy, Front Drive, Rh[06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
43410-52031 |
US $744.02 |
||
|
43410
|
43410
43410-52031 Shaft Assy, Front Drive, Rh[12.2003 -] NCP55,59 |
43410-52031 |
US $744.02 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL |
90363-36006 |
from US $23.58 |
||
|
43410M
|
43410M
90316-28003 Oil Seal, Front Drive Shaft, Rh[06.2002 - 09.2014] NCP55,59 |
90316-28003 |
from US $7.20 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL |
90520-33008 |
from US $1.76 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL |
90520-22005 |
from US $1.24 |
||
|
43447C
|
43447C
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447C
|
43447C
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
42345-52260 |
US $3.52 |
||
|
43447D
|
43447D
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447D
|
43447D
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[06.2002 -] NCP5#,NLP51..DX,F,GL,TX,U,UL |
42345-52250 |
US $5.28 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
90949-01078 |
US $0.61 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
42345-12160 |
from US $4.64 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL ＊１０−１．２５ＰＸ２８．５−１４．８ |
90901-19060 |
from US $2.08 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[06.2002 -] NCP55,59..DX,F,GL,TX,U,UL |
90521-75002 |
from US $2.11 |
||
|
43460
|
43460
43460-59076 Shaft Assy, Front Drive Outboard Joint, Rh[06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
43460-59076 |
US $637.73 |
||
| replacement | |||||
|
43460
|
43460
43460-59398 Shaft Assy, Front Drive Outboard Joint, Rh[06.2002 - 12.2003] NCP55,59..DX,F,GL,TX,U,UL |
43460-59398 |
US $553.28 |
||
|
43460
|
43460
43460-59185 Shaft Assy, Front Drive Outboard Joint, Rh[12.2003 - 03.2005] NCP55,59 |
43460-59185 |
US $617.34 |
||
| replacement | |||||
|
43460
|
43460
43460-59398 Shaft Assy, Front Drive Outboard Joint, Rh[12.2003 - 03.2005] NCP55,59 |
43460-59398 |
US $553.28 |
||
|
43460
|
43460
43460-59355 Shaft Assy, Front Drive Outboard Joint, Rh[03.2005 - 09.2009] NCP55,59 |
43460-59355 |
US $634.82 |
||
| replacement | |||||
|
43460
|
43460
43460-59398 Shaft Assy, Front Drive Outboard Joint, Rh[03.2005 - 09.2009] NCP55,59 |
43460-59398 |
US $553.28 |
||
|
43460
|
43460
43460-59397 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [09.2009 - 08.2014] NCP55,59 |
43460-59397 |
US $553.28 |
||
| replacement | |||||
|
43460
|
43460
43460-59398 Shaft Assy, Front Drive Outboard Joint, Rh[09.2009 - 08.2014] NCP55,59 |
43460-59398 |
US $553.28 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[12.2003 - 09.2014] NCP55,59 |
42345-14010 |
US $11.20 |
||
|
43474D
|
43474D
43474-52050 Damper, Front Drive Shaft, Rh[12.2003 - 09.2014] NCP55,59 |
43474-52050 |
US $39.31 |
||
