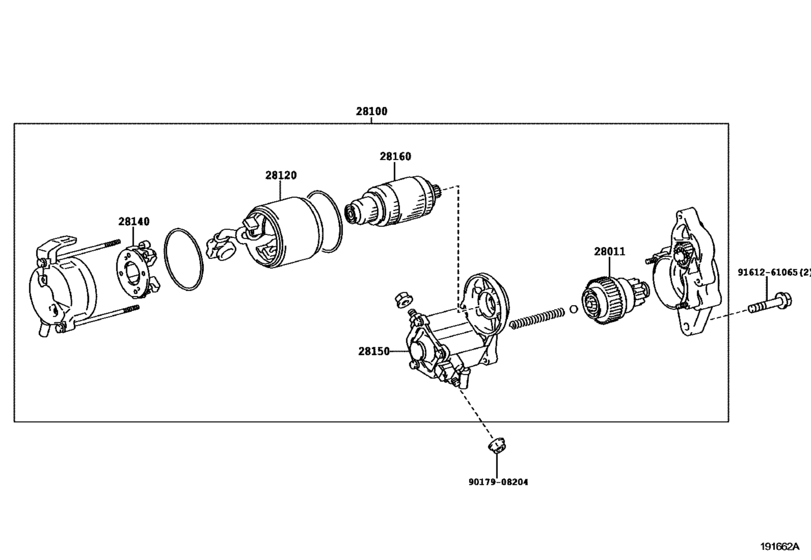

Starter ([06.2002 - ] 12V 1.4KW (0206- )1NDTV) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- NLP51
- grade
- DX
- body
- VAN
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- PROBOX
- From
- 06.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-55050 Clutch Sub-Assy, Starter[06.2002 - 08.2007] 1NDTV..NLP51 |
28011-55050 |
US $286.83 |
||
|
28011
|
28011
28011-55060 Clutch Sub-Assy, Starter[06.2002 - 08.2007] 1NDTV..NLP51 寒冷地仕様 |
28011-55060 |
US $345.07 |
||
|
28100
|
28100
28100-33040 Starter Assy[06.2002 - 08.2007] 1NDTV..NLP51 １２Ｖ ２．０ＫＷ,寒冷地仕様 |
28100-33040 |
US $1,820 |
||
|
28100
|
28100
28100-33050 Starter Assy[06.2002 - 08.2007] 1NDTV..NLP51 １２Ｖ １．４ＫＷ |
28100-33050 |
US $1,415.23 |
||
|
28120
|
28120
28120-54380
Yoke Assy, Starter
[06.2002 - 08.2007] 1NDTV..NLP51 寒冷地仕様 |
28120-54380 |
— | ||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[06.2002 - 08.2007] 1NDTV..NLP51 |
28120-66040 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[06.2002 - 08.2007] 1NDTV..NLP51 寒冷地仕様 |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-76070 Holder Assy, Starter Brush[06.2002 - 08.2007] 1NDTV..NLP51 |
28140-76070 |
from US $17.65 |
||
|
28150
|
28150
28150-33040 Switch Assy, Magnet Starter[06.2002 - 08.2007] 1NDTV..NLP51 寒冷地仕様 |
28150-33040 |
US $283.92 |
||
|
28150
|
28150
28150-46220 Switch Assy, Magnet Starter[06.2002 - 08.2007] 1NDTV..NLP51 |
28150-46220 |
US $215.49 |
||
|
28160
|
28160
28160-54380 Armature Assy, Starter[06.2002 - 08.2007] 1NDTV..NLP51 寒冷地仕様 |
28160-54380 |
US $164.35 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[06.2002 - 08.2007] 1NDTV..NLP51 |
28160-74070 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
