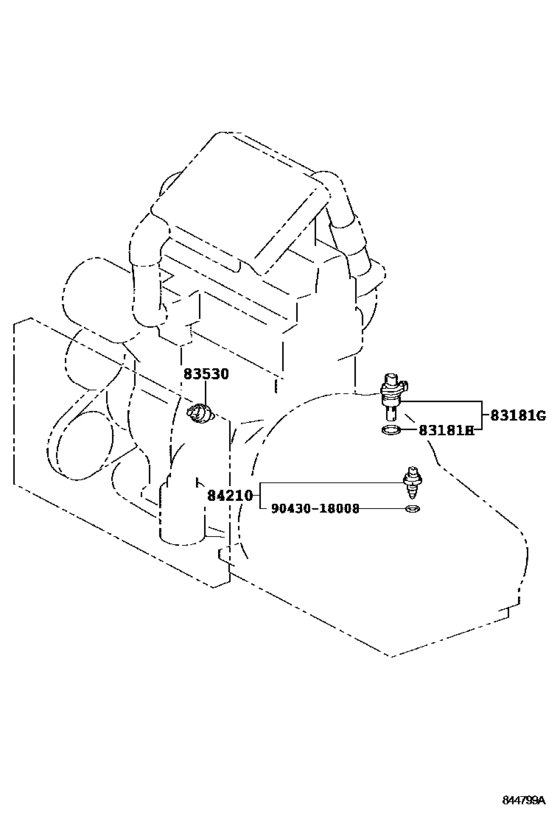

Switch & Relay & Computer ([06.2002 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (0206- )NLP51) Diagram Toyota PROBOX/ SUCCEED
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- NLP51
- grade
- DX
- body
- VAN
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- Model
- PROBOX
- From
- 06.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- PROBOX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-12020 Sensor, Speedometer[06.2002 - 09.2014] NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し（ＡＢＳ） |
83181-12020 |
from US $169.48 |
||
|
83181H
|
83181H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[06.2002 - 09.2014] NLP51;NCP50..4FC;NCP50,55..5F..DXJ 無し（ＡＢＳ） |
96711-24030 |
from US $2.22 |
||
|
83530
|
83530
83530-28010 Switch Assy, Oil Pressure (For Engine)[06.2002 - 08.2007] NLP51 ＤＥＮＳＯ |
83530-28010 |
US $25.68 |
||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[06.2002 - 08.2007] NLP51 ＤＥＮＳＯ |
83530-60010 |
from US $27.12 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[06.2002 - 08.2007] NLP51 ＹＡＺＡＫＩ |
83530-60010 |
from US $27.12 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[06.2002 - 06.2012] NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[06.2002 - 06.2012] NCP50,51,55,58,59,NLP51..5F..(DX,F,GL,U,UL) |
84210-52050 |
from US $20.67 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.99 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
