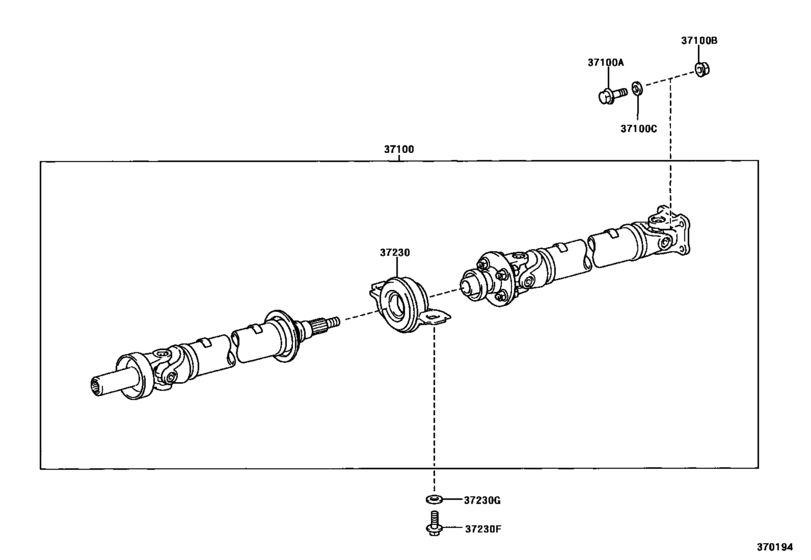

Propeller Shaft & Universal Joint ([04.2001 - ] (0104- )JCG10,11) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-30770 Shaft Assy, Propeller W/center Bearing[04.2001 -] JCG10 |
37100-30770 |
US $1,400.67 |
||
|
37100A
|
37100A
90105-10466 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90105-10466 |
US $2.24 |
||
|
37100B
|
37100B
90178-10007 Nut, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90178-10007 |
from US $0.90 |
||
|
37100C
|
37100C
90560-10102 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.2001 -] JCG1# |
90560-10102 |
from US $1.12 |
||
|
37230
|
37230
37230-59015 Bearing Assy, Center Support, No.1[04.2001 -] JCG1# |
37230-59015 |
US $168.48 |
||
|
37230F
|
37230F
90119-10902 Bolt, No.1 (For Center Support Bearing)[04.2001 -] JCG1# 長さ＝３３ |
90119-10902 |
US $1.92 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝４．５ |
90201-10008 |
US $1.76 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝９．０ |
90201-10017 |
US $2.62 |
||
|
37230G
|
37230G
90201-10033 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝６．５ |
90201-10033 |
US $2.61 |
||
|
37230G
|
37230G
90201-10034 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝１１．０ |
90201-10034 |
US $3.52 |
||
|
37230G
|
37230G
90201-10035 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝１３．５ |
90201-10035 |
US $2.91 |
||
|
37230G
|
37230G
90201-10106 Washer, No.2 (For Center Support Bearing)[04.2001 -] JCG10,11 厚さ＝２．０ |
90201-10106 |
US $0.87 |
