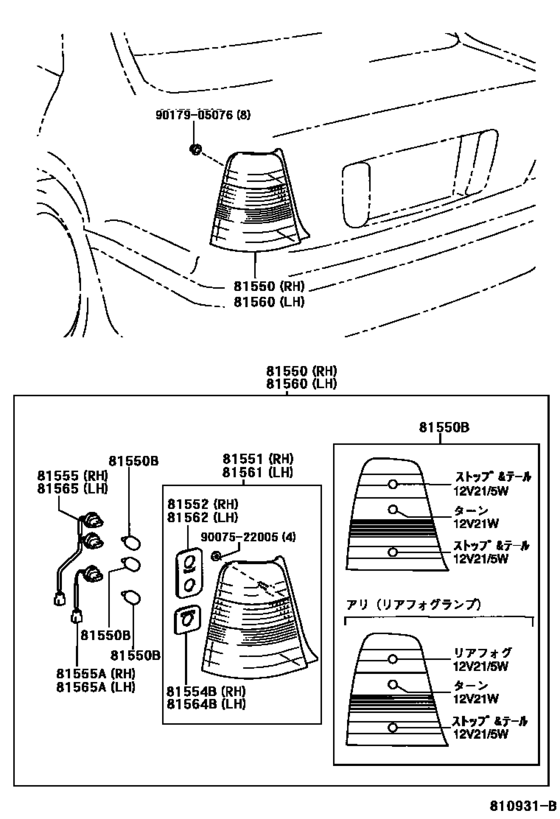

Rear Combination Lamp ([05.1998 - 04.2001] (9805-0104)) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-51010 Lamp Assy, Rear Combination, Rh[05.1998 - 04.2001] JCG1# |
81550-51010 |
US $429.52 |
||
| replacement | |||||
|
81550
|
81550
81550-51011 Lamp Assy, Rear Combination, Rh[05.1998 - 04.2001] JCG1# |
81550-51011 |
US $429.52 |
||
|
81550
|
81550
81550-51020 Lamp Assy, Rear Combination, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-51020 |
US $429.52 |
||
| replacement | |||||
|
81550
|
81550
81550-51021 Lamp Assy, Rear Combination, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81550-51021 |
US $429.52 |
||
|
81550
|
81550
81550-51030 Lamp Assy, Rear Combination, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81550-51030 |
US $454.27 |
||
| replacement | |||||
|
81550
|
81550
81550-51031 Lamp Assy, Rear Combination, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81550-51031 |
US $454.27 |
||
|
81550
|
81550
81550-51040 Lamp Assy, Rear Combination, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81550-51040 |
US $454.27 |
||
| replacement | |||||
|
81550
|
81550
81550-51041 Lamp Assy, Rear Combination, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81550-51041 |
US $454.27 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[05.1998 - 04.2001] JCG1# １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.1998 - 04.2001] JCG1# １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81551
|
81551
81551-51010 Lens, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81551-51010 |
US $385.84 |
||
| replacement | |||||
|
81551
|
81551
81551-51011 Lens, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81551-51011 |
from US $117.78 |
||
|
81551
|
81551
81551-51020 Lens, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-51020 |
US $385.84 |
||
| replacement | |||||
|
81551
|
81551
81551-51021 Lens, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81551-51021 |
US $385.84 |
||
|
81551
|
81551
81551-51030 Lens, Rear Combination Lamp, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81551-51030 |
US $410.59 |
||
| replacement | |||||
|
81551
|
81551
81551-51031 Lens, Rear Combination Lamp, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81551-51031 |
US $410.59 |
||
|
81551
|
81551
81551-51040 Lens, Rear Combination Lamp, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81551-51040 |
US $410.59 |
||
| replacement | |||||
|
81551
|
81551
81551-51041 Lens, Rear Combination Lamp, Rh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81551-51041 |
US $410.59 |
||
|
81552
|
81552
81552-51010 Gasket, Rear Combination Lamp Lens, Rh[05.1998 - 04.2001] JCG1# |
81552-51010 |
US $10.19 |
||
|
81554B
|
81554B
81554-51010 Gasket, Rear Combination Lamp Body, No.2 Rh[05.1998 - 04.2001] JCG1# |
81554-51010 |
US $7.72 |
||
|
81555
|
81555
81555-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81555-51010 |
US $27.37 |
||
|
81555
|
81555
81555-51020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81555-51020 |
US $27.37 |
||
|
81555A
|
81555A
81559-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81559-51010 |
US $21.55 |
||
|
81560
|
81560
81560-51010 Lamp Assy, Rear Combination, Lh[05.1998 - 04.2001] JCG1# |
81560-51010 |
US $429.52 |
||
| replacement | |||||
|
81560
|
81560
81560-51011 Lamp Assy, Rear Combination, Lh[05.1998 - 04.2001] JCG1# |
81560-51011 |
US $429.52 |
||
|
81560
|
81560
81560-51020 Lamp Assy, Rear Combination, Lh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81560-51020 |
US $429.52 |
||
| replacement | |||||
|
81560
|
81560
81560-51021 Lamp Assy, Rear Combination, Lh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81560-51021 |
US $429.52 |
||
|
81560
|
81560
81560-51030 Lamp Assy, Rear Combination, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81560-51030 |
US $454.27 |
||
| replacement | |||||
|
81560
|
81560
81560-51031 Lamp Assy, Rear Combination, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81560-51031 |
US $454.27 |
||
|
81560
|
81560
81560-51040 Lamp Assy, Rear Combination, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81560-51040 |
US $454.27 |
||
| replacement | |||||
|
81560
|
81560
81560-51041 Lamp Assy, Rear Combination, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81560-51041 |
US $454.27 |
||
|
81561
|
81561
81561-51010 Lens, Rear Combination Lamp, Lh[05.1998 - 04.2001] JCG1# |
81561-51010 |
US $385.84 |
||
| replacement | |||||
|
81561
|
81561
81561-51011 Lens, Rear Combination Lamp, Lh[05.1998 - 04.2001] JCG1# |
81561-51011 |
from US $227.08 |
||
|
81561
|
81561
81561-51020 Lens, Rear Combination Lamp, Lh[05.1998 - 04.2001] JCG10,11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81561-51020 |
US $385.84 |
||
| replacement | |||||
|
81561
|
81561
81561-51021 Lens, Rear Combination Lamp, Lh[05.1998 - 04.2001] JCG10,11 ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81561-51021 |
US $385.84 |
||
|
81561
|
81561
81561-51030 Lens, Rear Combination Lamp, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81561-51030 |
US $410.59 |
||
| replacement | |||||
|
81561
|
81561
81561-51031 Lens, Rear Combination Lamp, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) |
81561-51031 |
US $410.59 |
||
|
81561
|
81561
81561-51040 Lens, Rear Combination Lamp, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81561-51040 |
US $410.59 |
||
| replacement | |||||
|
81561
|
81561
81561-51041 Lens, Rear Combination Lamp, Lh[05.1999 - 04.2001] JCG10,11 IR ﾊﾞ-ｼﾞﾖﾝ *(S) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) OR IR ﾊﾞ-ｼﾞﾖﾝ *(X) & ｱﾘ(ﾘﾔ ﾌｵｸﾞ ﾗﾝﾌﾟ) |
81561-51041 |
US $410.59 |
||
|
81562
|
81562
81552-51010 Gasket, Rear Combination Lamp Lens, Rh[05.1998 - 04.2001] JCG1# |
81552-51010 |
US $10.19 |
||
|
81564B
|
81564B
81554-51010 Gasket, Rear Combination Lamp Body, No.2 Rh[05.1998 - 04.2001] JCG1# |
81554-51010 |
US $7.72 |
||
|
81565
|
81565
81555-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81555-51010 |
US $27.37 |
||
|
81565
|
81565
81555-51020 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
81555-51020 |
US $27.37 |
||
|
81565A
|
81565A
81559-51010 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1998 - 04.2001] JCG1# |
81559-51010 |
US $21.55 |
||
|
9007522005
|
9007522005
90075-22005 New Genuine Part |
90075-22005 |
US $2.18 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
