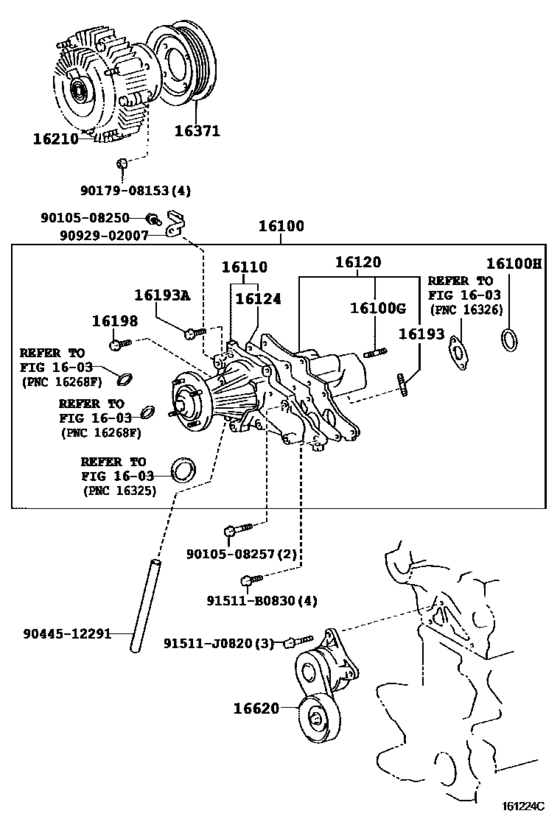

Water Pump ([05.1998 - ] (9805- )1JZ#..JCG10) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG10
- body
- SED
- ENGINE
- 1JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-49865
Pump Assy, Engine Water
[05.1998 - 11.1999] 1JZGE..JCG10 |
16100-49865 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[05.1998 - 11.1999] 1JZGE..JCG10 |
16100-80009 |
US $216 |
||
|
16100
|
16100
16100-49866
Pump Assy, Engine Water
[11.1999 - 06.2000] 1JZGE,2JZGE..JCG10,11 |
16100-49866 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[11.1999 - 06.2000] 1JZGE,2JZGE..JCG10,11 |
16100-80009 |
US $216 |
||
|
16100
|
16100
16100-49867 Pump Assy, Engine Water[06.2000 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
16100-49867 |
US $219.86 |
||
| replacement | |||||
|
16100
|
16100
16100-80009 Pump Assy, Engine Water[06.2000 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
16100-80009 |
US $216 |
||
|
16100G
|
16100G
92122-60816 Bolt, Stud(For Water Pump Set)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
92122-60816 |
US $1.31 |
||
|
16100H
|
16100H
96761-24040 Ring, O(For Water Pump)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
96761-24040 |
from US $2.93 |
||
|
16110
|
16110
16110-49145 Pump Assy, Water, W/o Coupling[05.1998 - 11.1999] 1JZGE..JCG10 |
16110-49145 |
US $195.10 |
||
| replacement | |||||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[05.1998 - 11.1999] 1JZGE..JCG10 |
16110-49148 |
US $192.96 |
||
|
16110
|
16110
16110-49146 Pump Assy, Water, W/o Coupling[11.1999 - 06.2000] 1JZGE,2JZGE..JCG10,11 |
16110-49146 |
US $195.10 |
||
| replacement | |||||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[11.1999 - 06.2000] 1JZGE,2JZGE..JCG10,11 |
16110-49148 |
US $192.96 |
||
|
16110
|
16110
16110-49147 Pump Assy, Water, W/o Coupling[06.2000 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
16110-49147 |
US $195.10 |
||
| replacement | |||||
|
16110
|
16110
16110-49148 Pump Assy, Water, W/o Coupling[06.2000 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
16110-49148 |
US $192.96 |
||
|
16120
|
16120
16102-46072 Cover Assy, Water Pump[06.2000 - 04.2001] 1JZGE,2JZGE..JCG1# |
16102-46072 |
US $37.56 |
||
| replacement | |||||
|
16120
|
16120
16102-46073 Cover Assy, Water Pump[06.2000 - 04.2001] 1JZGE,2JZGE..JCG1# |
16102-46073 |
US $37.56 |
||
|
16120
|
16120
16120-46080 Cover Assy, Water Pump[11.1999 - 06.2000] 1JZGE,2JZGE..JCG1# |
16120-46080 |
US $54.45 |
||
| replacement | |||||
|
16120
|
16120
16102-46073 Cover Assy, Water Pump[11.1999 - 06.2000] 1JZGE,2JZGE..JCG1# |
16102-46073 |
US $37.56 |
||
|
16124
|
16124
16124-46070 Gasket, Water Pump Cover[05.1998 - 11.1999] 1JZGE..JCG10 |
16124-46070 |
US $9.92 |
||
|
16193
|
16193
16193-46030 Bolt, Stud(For Water Pump Cover)[05.1998 - 11.1999] 1JZGE..JCG10 |
16193-46030 |
US $4.80 |
||
|
16193A
|
16193A
90029-00002 Bolt(For Water Pump Cover)[05.1998 - 11.1999] 1JZGE..JCG10 |
90029-00002 |
US $4.96 |
||
|
16198
|
16198
16198-46031 Bolt, Stud(For Water Pump Pulley Seat)[05.1998 - 11.1999] 1JZGE..JCG10 |
16198-46031 |
US $4 |
||
|
16210
|
16210
16210-46051 Coupling Assy, Fluid[05.1998 - 11.1999] 1JZGE..JCG10 |
16210-46051 |
US $509.60 |
||
| replacement | |||||
|
16210
|
16210
16210-46052 Coupling Assy, Fluid[05.1998 - 11.1999] 1JZGE..JCG10 |
16210-46052 |
from US $277.25 |
||
|
16210
|
16210
16210-46052 Coupling Assy, Fluid[11.1999 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
16210-46052 |
from US $277.25 |
||
|
16371
|
16371
16371-46030
Pulley, Fan
[05.1998 - 11.1999] 1JZGE..JCG10 |
16371-46030 |
— | ||
|
16620
|
16620
16620-0W014 Tensioner Assy, V-Ribbed Belt[05.1998 - 06.2000] 1JZGE..JCG10,15 |
16620-0W014 |
US $393.12 |
||
| replacement | |||||
|
16620
|
16620
16620-0W016 Tensioner Assy, V-Ribbed Belt[05.1998 - 06.2000] 1JZGE..JCG10,15 |
16620-0W016 |
US $407.40 |
||
|
16620
|
16620
16620-0W015 Tensioner Assy, V-Ribbed Belt[06.2000 - 04.2001] 1JZGE..JCG10,15 |
16620-0W015 |
US $391.66 |
||
| replacement | |||||
|
16620
|
16620
16620-0W016 Tensioner Assy, V-Ribbed Belt[06.2000 - 04.2001] 1JZGE..JCG10,15 |
16620-0W016 |
US $407.40 |
||
|
91511B0830
|
91511B0830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.99 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
|
9010508250
|
9010508250
90105-08250
Bolt, Flange
|
90105-08250 |
— | ||
|
9010508257
|
9010508257
90105-08257 New Genuine Part |
90105-08257 |
US $2.56 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.88 |
||
|
9044512291
|
9044512291
90445-12291 GUM HOSE |
90445-12291 |
US $5.12 |
||
|
9092902007
|
9092902007
90929-02007 New Genuine Part |
90929-02007 |
US $3.35 |
||
