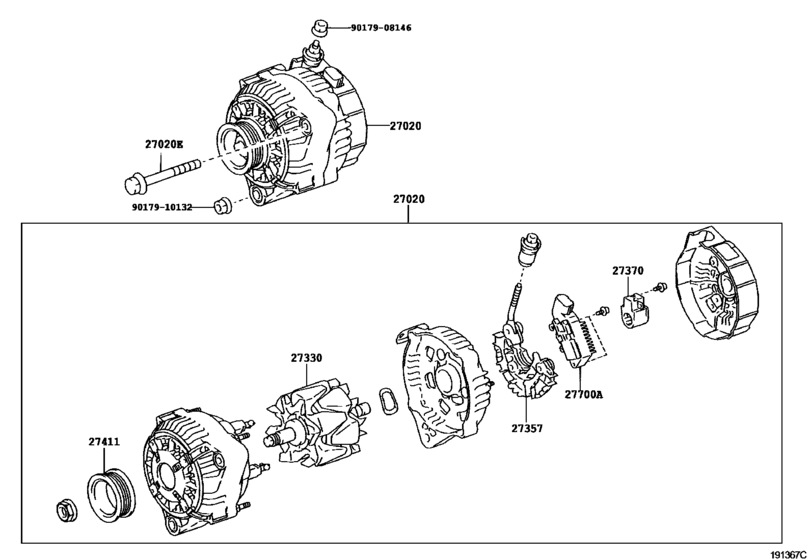

Alternator ([04.2001 - ] 12V 100A (0104- )2JZFSE) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG11
- body
- SED
- ENGINE
- 2JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-46300 Alternator Assy[04.2001 -] 2JZFSE..JCG11 １２Ｖ １００Ａ |
27060-46300 |
US $1,820 |
||
|
27020E
|
27020E
91512-61050 Bolt(For Alternator)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
91512-61050 |
US $1.92 |
||
|
27330
|
27330
27330-62180
Rotor Assy, Alternator
[08.2001 -] 2JZFSE..JCG11 |
27330-62180 |
— | ||
|
27357
|
27357
27357-46310
Holder, Alternator, W/rectifier
[08.2001 -] 2JZFSE..JCG11 |
27357-46310 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.2001 -] 2JZFSE..JCG11 |
27370-75060 |
from US $16.22 |
||
|
27411
|
27411
27411-46080
Pulley, Alternator
[08.2001 -] 2JZFSE..JCG11 |
27411-46080 |
— | ||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[04.2001 -] 2JZFSE..JCG11 |
27700-46060 |
US $279.55 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910132
|
9017910132
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
