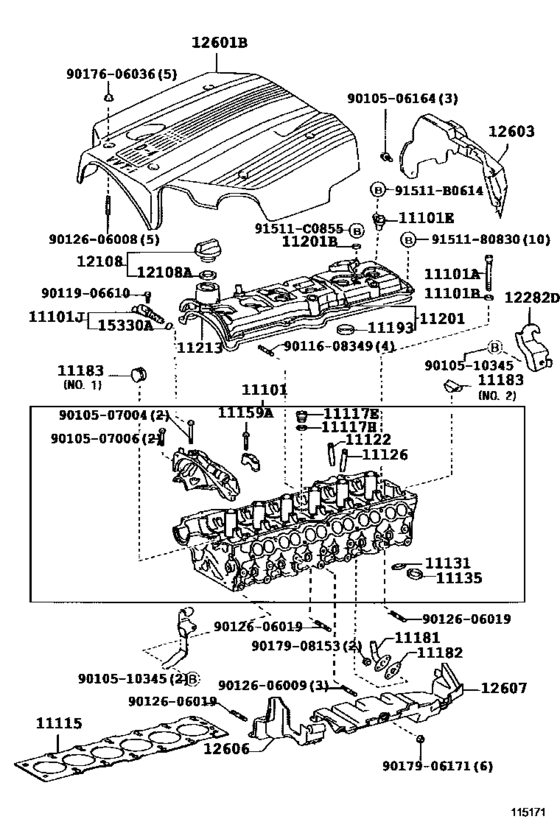

Cylinder Head ([04.2001 - ] (0104- )2JZFSE) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG11
- body
- SED
- ENGINE
- 2JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49425 Head Sub-Assy, Cylinder[04.2001 - 08.2001] 2JZFSE..JCG11 |
11101-49425 |
US $2,475.20 |
||
| replacements | |||||
|
11101
|
11101
11101-49426 Head Sub-Assy, Cylinder[04.2001 - 08.2001] 2JZFSE..JCG11 |
11101-49426 |
US $2,489.76 |
||
|
11101
|
11101
23807-46051 Pipe Sub-Assy, Fuel Delivery[04.2001 - 08.2001] 2JZFSE..JCG11 |
23807-46051 |
US $346.53 |
||
|
11101
|
11101
11101-49426 Head Sub-Assy, Cylinder[08.2001 -] 2JZFSE..JCG11 |
11101-49426 |
US $2,489.76 |
||
|
11101A
|
11101A
90910-02102 Bolt(For Cylinder Head Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90910-02102 |
from US $14.88 |
||
|
11101B
|
11101B
90201-11018
Washer, Plate(For Cylinder Head Set)
[04.2001 - 10.2001] 1JZFSE,2JZFSE..JCG1# |
90201-11018 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[04.2001 - 10.2001] 1JZFSE,2JZFSE..JCG1# |
90201-11034 |
US $1.76 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[10.2001 -] 1JZFSE,2JZFSE..JCG1# |
90201-11034 |
US $1.76 |
||
|
11101E
|
11101E
90919-05026 Sensor, Position[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90919-05026 |
from US $75.48 |
||
|
11101J
|
11101J
15330-46020 Valve Assy, Camshaft Timing Oil Control[04.2001 - 12.2001] 1JZFSE,2JZFSE..JCG1# |
15330-46020 |
US $199.47 |
||
| replacement | |||||
|
11101J
|
11101J
15330-46021 Valve Assy, Camshaft Timing Oil Control[04.2001 - 12.2001] 1JZFSE,2JZFSE..JCG1# |
15330-46021 |
US $214.56 |
||
|
11101J
|
11101J
15330-46021 Valve Assy, Camshaft Timing Oil Control[12.2001 -] 1JZFSE,2JZFSE..JCG1# |
15330-46021 |
US $214.56 |
||
|
11115
|
11115
11115-46060 Gasket, Cylinder Head[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
11115-46060 |
from US $84.55 |
||
|
11117E
|
11117E
90341-24010 Plug, W/head Taper Screw, No.1[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90341-24010 |
US $4.72 |
||
|
11117H
|
11117H
90430-24010 Gasket(For Cylinder Head Screw Plug)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90430-24010 |
US $3.20 |
||
|
11122
|
11122
11122-46020 Bush, Intake Valve Guide[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＳＴＤ |
11122-46020 |
US $12.08 |
||
|
11122
|
11122
11123-46020 Bush, Intake Valve Guide[04.2001 -] 1JZFSE,2JZFSE..JCG1# Ｏ／Ｓ ０．０５ |
11123-46020 |
US $12.08 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＳＴＤ |
11122-16020 |
from US $9.73 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[04.2001 -] 1JZFSE,2JZFSE..JCG1# Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11131
|
11131
11131-46040 Seat, Intake Valve[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＳＴＤ |
11131-46040 |
US $15.43 |
||
|
11131
|
11131
11132-46040 Seat, Intake Valve[04.2001 -] 1JZFSE,2JZFSE..JCG1# Ｏ／Ｓ ０．０３ |
11132-46040 |
US $15.43 |
||
|
11135
|
11135
11135-46040 Seat, Exhaust Valve[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＳＴＤ |
11135-46040 |
US $16.60 |
||
|
11135
|
11135
11136-46040 Seat, Exhaust Valve[04.2001 -] 1JZFSE,2JZFSE..JCG1# Ｏ／Ｓ ０．０３ |
11136-46040 |
US $16.60 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90119-07009 |
from US $0.86 |
||
|
11181
|
11181
11181-46040 Plate, Cylinder Head, Rear[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
11181-46040 |
US $13.69 |
||
|
11182
|
11182
11182-46020 Gasket, Cylinder Head Rear Plate[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
11182-46020 |
US $1.60 |
||
|
11183
|
11183
11183-46010 Plug, Semicircular[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＮＯ．１ |
11183-46010 |
US $12.48 |
||
|
11183
|
11183
11183-50020 Plug, Semicircular[04.2001 -] 1JZFSE,2JZFSE..JCG1# ＮＯ．２ |
11183-50020 |
US $9.44 |
||
|
11193
|
11193
11193-46010 Gasket, Spark Plug Tube[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
11193-46010 |
US $6.24 |
||
|
11201
|
11201
11201-46072 Cover Sub-Assy, Cylinder Head[04.2001 -] 2JZFSE..JCG11 |
11201-46072 |
US $378.56 |
||
|
11201B
|
11201B
90210-07008 Washer, Seal(For Cylinder Head Cover)[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
90210-07008 |
US $1.76 |
||
|
11213
|
11213
11213-46040 Gasket, Cylinder Head Cover[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
11213-46040 |
US $25.08 |
||
|
12108
|
12108
12180-20030 Cap Sub-Assy, Oil Filler[04.2001 -] 2JZFSE..JCG11 |
12180-20030 |
from US $15.05 |
||
|
12108A
|
12108A
12195-20020 Gasket(For Oil Filler Cap)[04.2001 -] 2JZFSE..JCG11 |
12195-20020 |
from US $3.84 |
||
|
12282D
|
12282D
12282-46050 Hanger, Engine, No.2[04.2001 - 08.2001] 1JZFSE,2JZFSE..JCG1# |
12282-46050 |
US $22.57 |
||
| replacement | |||||
|
12282D
|
12282D
12282-46060 Hanger, Engine, No.2[04.2001 - 08.2001] 1JZFSE,2JZFSE..JCG1# |
12282-46060 |
US $22.71 |
||
|
12282D
|
12282D
12282-46060 Hanger, Engine, No.2[08.2001 -] 1JZFSE,2JZFSE..JCG1# |
12282-46060 |
US $22.71 |
||
|
12601B
|
12601B
12601-46060 Cover Sub-Assy, Engine, No.1[04.2001 -] 2JZFSE..JCG11 |
12601-46060 |
US $340.70 |
||
|
12603
|
12603
12603-46021 Cover Sub-Assy, Engine, Rear[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
12603-46021 |
US $82.99 |
||
|
12606
|
12606
12606-46012 Cover Sub-Assy, Engine, Lh No.1[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
12606-46012 |
US $46.16 |
||
|
12607
|
12607
12607-46013 Cover Sub-Assy, Engine, Lh No.2[04.2001 -] 1JZFSE,2JZFSE..JCG1# |
12607-46013 |
US $157.25 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[04.2001 - 06.2007] 1JZFSE,2JZFSE..JCG1# |
90099-14137 |
from US $2.15 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
91511C0855
|
91511C0855
91511-C0855 New Genuine Part |
91511-C0855 |
US $0.87 |
||
|
9010506164
|
9010506164
90105-06164 New Genuine Part |
90105-06164 |
US $1.92 |
||
|
9010507004
|
9010507004
90105-07004 Bolt(For Head To Camshaft Bearing Cap) |
90105-07004 |
US $1.31 |
||
|
9010507006
|
9010507006
90105-07006 Bolt(For Head To Camshaft Bearing Cap) |
90105-07006 |
US $1.75 |
||
|
9010510345
|
9010510345
90105-10345 New Genuine Part |
90105-10345 |
US $3.20 |
||
|
9011608349
|
9011608349
90116-08349 New Genuine Part |
90116-08349 |
US $0.61 |
||
|
9011906610
|
9011906610
90119-06610
New Genuine Part
|
90119-06610 |
— | ||
| replacement | |||||
|
9011906610
|
9011906610
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $1.92 |
||
|
9012606008
|
9012606008
90126-06008 STUD HEX LOBULAR |
90126-06008 |
US $2.08 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.08 |
||
|
9012606019
|
9012606019
90126-06019 New Genuine Part |
90126-06019 |
US $2.08 |
||
|
9017606036
|
9017606036
90176-06036 NUT |
90176-06036 |
from US $0.92 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.94 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
