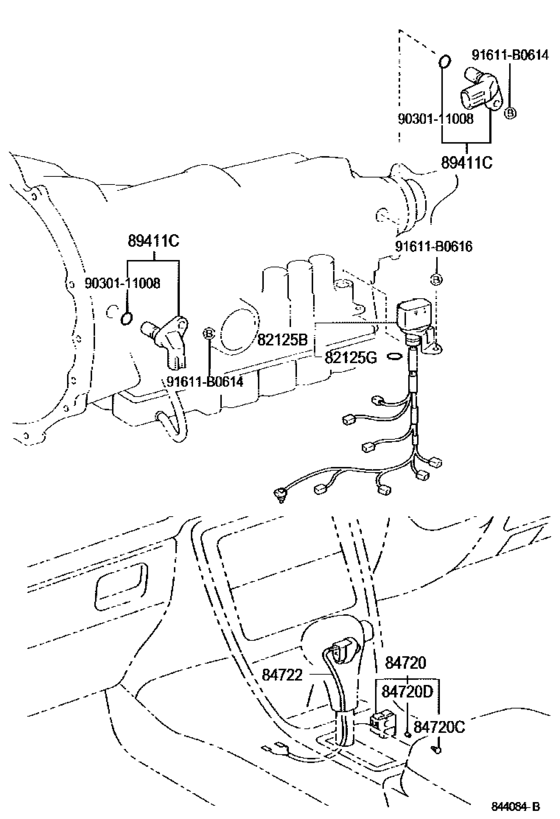

Overdrive & Electronic Controlled Transmission ([04.2001 - ] (0104- )JCG11) Diagram Toyota PROGRES
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- JCG11
- body
- SED
- ENGINE
- 2JZFSE
- Model
- PROGRES
- From
- 04.2001
- To
- 06.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- PROGRES
- Fuel Induction
- D4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125B
|
82125B
82125-50040 Wire, Transmission[04.2001 - 06.2007] JCG11 |
82125-50040 |
US $48.22 |
||
|
82125G
|
82125G
96721-24018 Ring, O[04.2001 - 06.2007] JCG1# |
96721-24018 |
from US $4.11 |
||
|
84720
|
84720
84720-51010 Switch Assy, Pattern Select[04.2001 - 06.2007] JCG1# |
84720-51010 |
US $61.44 |
||
|
84720C
|
84720C
84999-10710 Bulb, Throttle Position Switch[04.2001 - 06.2007] JCG1# １４Ｖ ０．５６Ｗ |
84999-10710 |
from US $6.40 |
||
|
84720D
|
84720D
84998-10670 Cap, Throttle Position Switch Bulb[04.2001 - 06.2007] JCG1# |
84998-10670 |
US $3.68 |
||
|
84722
|
84722
84722-51010-C0 Switch, Transmission Control[04.2001 - 06.2007] JCG1# BLACK,TRIM2# |
84722-51010-C0 |
US $49.65 |
||
|
84722
|
84722
84722-51010-E0 Switch, Transmission Control[04.2001 - 06.2007] JCG1# SANDAL WOOD,TRIM0# |
84722-51010-E0 |
US $49.65 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[04.2001 - 06.2007] JCG1# |
89411-50010 |
from US $67.18 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
