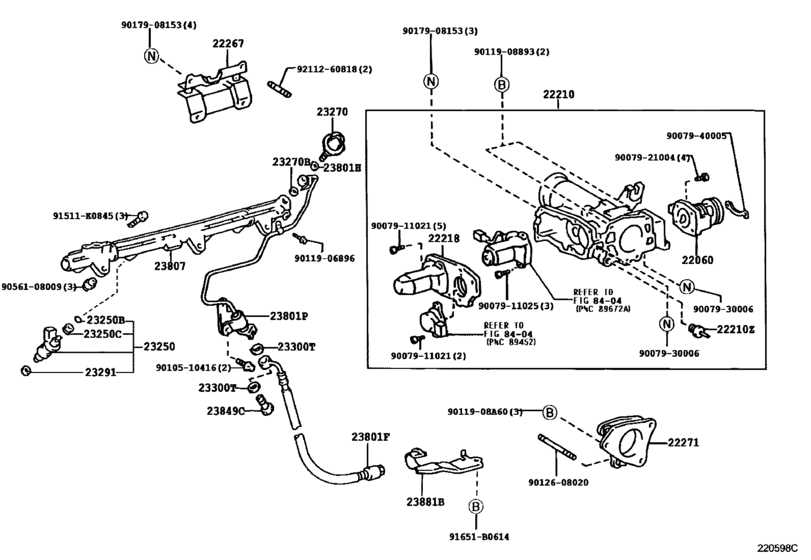

Fuel Injection System ([05.1998 - 04.2001] (9805-0104)2JZGE) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG11
- body
- SED
- ENGINE
- 2JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22060
|
22060
22060-46010 Lever Assy, Throttle W/sensor[05.1998 - 04.2001] 2JZGE..JCG11 |
22060-46010 |
from US $274.52 |
||
|
22210
|
22210
22030-46130
Body Assy, Throttle
[05.1998 - 04.2001] 2JZGE..JCG11 |
22030-46130 |
— | ||
|
22210Z
|
22210Z
90916-03104 Thermostat, Manifold[05.1998 - 04.2001] 2JZGE..JCG11 |
90916-03104 |
US $43.42 |
||
|
22218
|
22218
22218-46120 Cover(For Throttle Body)[05.1998 - 04.2001] 2JZGE..JCG11 |
22218-46120 |
US $9.90 |
||
|
22267
|
22267
22267-46030 Bracket, Throttle Body[05.1998 - 04.2001] 2JZGE..JCG11 |
22267-46030 |
US $19.74 |
||
|
22271
|
22271
22271-46070 Gasket, Throttle Body[05.1998 - 04.2001] 2JZGE..JCG11 |
22271-46070 |
from US $41.18 |
||
|
23250
|
23250
23209-46090 Injector Assy, Fuel[05.1998 - 04.2001] 2JZGE..JCG11 |
23209-46090 |
US $281.40 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[05.1998 - 04.2001] 2JZGE..JCG11 |
90301-07024 |
from US $2.65 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.1998 - 04.2001] 2JZGE..JCG11 |
90480-13005 |
from US $2.46 |
||
|
23270
|
23270
23207-46021 Damper Assy, Fuel Pressure Pulsation[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
23207-46021 |
US $104.83 |
||
|
23270B
|
23270B
90430-12026 Gasket[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90430-12026 |
from US $0.88 |
||
|
23291
|
23291
23291-62010 Insulator, Injector Vibration[05.1998 - 04.2001] 2JZGE..JCG11 |
23291-62010 |
from US $3.59 |
||
|
23300T
|
23300T
90430-12026 Gasket[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90430-12026 |
from US $0.88 |
||
|
23801F
|
23801F
90923-01422 Hose, Fuel, No.1[05.1998 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
90923-01422 |
US $118.81 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90430-14008 |
from US $0.94 |
||
|
23801P
|
23801P
23801-46031 Pipe Sub-Assy, Fuel, No.1[05.1998 - 04.2001] 2JZGE..JCG11 |
23801-46031 |
US $116.48 |
||
|
23807
|
23807
23807-46030 Pipe Sub-Assy, Fuel Delivery[05.1998 - 04.2001] 2JZGE..JCG11 |
23807-46030 |
US $244.61 |
||
| replacement | |||||
|
23807
|
23807
23807-46031 Pipe Sub-Assy, Fuel Delivery[05.1998 - 04.2001] 2JZGE..JCG11 |
23807-46031 |
US $221.31 |
||
|
23849C
|
23849C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
90401-12097 |
from US $2.98 |
||
|
23881B
|
23881B
23881-46030 Bracket, Fuel Hose[05.1998 - 04.2001] 1JZGE,2JZGE..JCG10,11 |
23881-46030 |
US $9.32 |
||
|
91511K0845
|
91511K0845
91511-K0845 New Genuine Part |
91511-K0845 |
US $2.72 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011908A60
|
9011908A60
90119-08A60 New Genuine Part |
90119-08A60 |
US $0.87 |
||
|
9007911021
|
9007911021
90079-11021 New Genuine Part |
90079-11021 |
US $1.92 |
||
|
9007911025
|
9007911025
90079-11025 New Genuine Part |
90079-11025 |
US $1.05 |
||
|
9007921004
|
9007921004
90079-21004 New Genuine Part |
90079-21004 |
US $1.46 |
||
|
9007930006
|
9007930006
90079-30006 New Genuine Part |
90079-30006 |
US $1.05 |
||
|
9007940005
|
9007940005
90079-40005 New Genuine Part |
90079-40005 |
US $1.75 |
||
|
9010510416
|
9010510416
90105-10416 New Genuine Part |
90105-10416 |
US $2.24 |
||
|
9011906896
|
9011906896
90119-06896
New Genuine Part
|
90119-06896 |
— | ||
| replacement | |||||
|
9011906896
|
9011906896
90119-06493 BOLT WITH WASHER |
90119-06493 |
US $1.92 |
||
|
9011908893
|
9011908893
90119-08893 New Genuine Part |
90119-08893 |
US $3.32 |
||
|
9012608020
|
9012608020
90126-08020 New Genuine Part |
90126-08020 |
US $20.53 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9056108009
|
9056108009
90561-08009 Spacer, No.1(For Delivery Pipe) |
90561-08009 |
US $3.20 |
||
|
9211260818
|
9211260818
92112-60818 Bolt, Stud(For Water Pump Coupling) |
92112-60818 |
US $3.20 |
||
