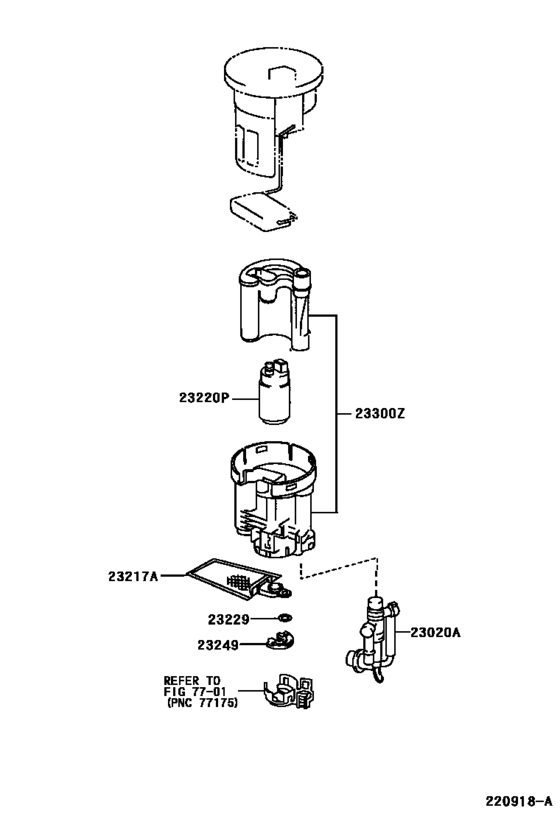

Fuel Injection System ([12.1999 - 04.2001] (9912-0104)2JZGE) Diagram Toyota PROGRES
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- JCG11
- body
- SED
- ENGINE
- 2JZGE
- Model
- PROGRES
- From
- 05.1998
- To
- 04.2001
- Gear Shift Type
- 4FC
- Vehicle Model
- PROGRES
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23020A
|
23020A
23020-46010
Regulator Assy, Fuel Pressure W/jet Pump
[05.1998 - 04.1999] 2JZGE..JCG11 |
23020-46010 |
— | ||
|
23020A
|
23020A
23020-46030 Regulator Assy, Fuel Pressure W/jet Pump[04.1999 - 04.2001] 2JZGE..JCG11 |
23020-46030 |
from US $83.42 |
||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[05.1998 - 04.2001] 2JZGE..JCG11 |
23217-46090 |
from US $7.49 |
||
|
23220P
|
23220P
23221-46120 Pump Assy, Fuel[05.1998 - 04.2001] 2JZGE..JCG11 |
23221-46120 |
US $520.80 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[05.1998 - 04.2001] 1JZGE,2JZGE..JCG1# |
23219-03010 |
US $2.55 |
||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[12.1999 - 04.2001] 1JZGE,2JZGE..JCG1# |
23249-46180 |
from US $9.56 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[05.1998 - 11.1998] 1JZGE,2JZGE..JCG1# |
23249-74610 |
from US $10.36 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[12.1999 - 04.2001] 2JZGE..JCG11 |
23300-21010 |
from US $63.43 |
||
|
23300Z
|
23300Z
23300-74330 Filter, Fuel(For Fuel Tank)[05.1998 - 12.1999] 2JZGE..JCG11 |
23300-74330 |
US $83.64 |
||
