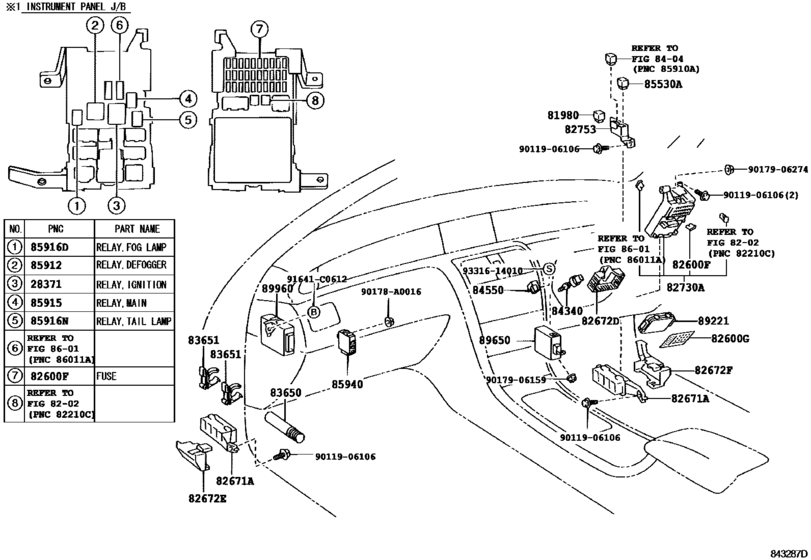

Switch & Relay & Computer ([02.2000 - 01.2003] ｶｳﾙ (0002-0301)) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02011 Relay, Ignition, No.1[02.2000 - 07.2002] 1MZFE..MCX20 |
90987-02011 |
US $57.22 |
||
|
81980
|
81980
81980-02030
Flasher Assy, Turn Signal
[07.2002 - 01.2003] MCX20 |
81980-02030 |
— | ||
|
81980
|
81980
81980-AC030 Flasher Assy, Turn Signal[02.2000 - 07.2002] MCX20 |
81980-AC030 |
US $101.92 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[02.2000 - 07.2002] MCX20 ７．５Ａ，ミニ ヒューズ |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[02.2000 - 07.2002] MCX20 １０Ａ，ミニ ヒューズ |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[02.2000 - 07.2002] MCX20 １５Ａ，ミニ ヒューズ |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[02.2000 - 07.2002] MCX20 ２０Ａ，ミニ ヒューズ |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[02.2000 - 07.2002] MCX20 ３０Ａ，ミニ ヒューズ |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82031 Instrument Panel Fuse[02.2000 - 07.2002] MCX20 ５Ａ，ミニ ヒューズ |
90080-82031 |
US $1.16 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[02.2000 - 07.2002] MCX20 ２５Ａ，ミニ ヒューズ |
90080-82033 |
— | ||
|
82600G
|
82600G
82683-07040 Plate, Caution(For Fuse)[02.2000 - 07.2002] MCX20 |
82683-07040 |
US $3.35 |
||
|
82671A
|
82671A
82671-07010 Block, Junction[02.2000 - 07.2002] MCX20 |
82671-07010 |
from US $33.74 |
||
|
82672D
|
82672D
82672-07100 Cover, Junction Block[02.2000 - 07.2002] MCX20 |
82672-07100 |
US $24.61 |
||
|
82672E
|
82672E
82672-07140 Cover, Junction Block[02.2000 - 07.2002] MCX20 |
82672-07140 |
US $9.46 |
||
|
82672F
|
82672F
82672-07120 Cover, Junction Block[02.2000 - 07.2002] MCX20 |
82672-07120 |
US $9.46 |
||
|
82730A
|
82730A
82730-07040 Block Assy, Driver Side Junction[02.2000 - 07.2002] MCX20 |
82730-07040 |
US $768.77 |
||
|
82753
|
82753
82753-07010 Block, Passenger Side Relay[02.2000 - 07.2002] MCX20 |
82753-07010 |
US $31.01 |
||
|
83650
|
83650
90986-01005
Fusee
[02.2000 - 07.2002] MCX20 |
90986-01005 |
— | ||
|
83651
|
83651
90084-46012 Clamp, Fusee[07.2002 - 01.2003] MCX20 |
90084-46012 |
US $3.35 |
||
|
83651
|
83651
90084-46012-C0 Clamp, Fusee[02.2000 - 07.2002] MCX20 BLACK,TRIM0# |
90084-46012-C0 |
US $3.35 |
||
| replacement | |||||
|
83651
|
83651
90084-46012 Clamp, Fusee[02.2000 - 07.2002] MCX20 BLACK,TRIM0# |
90084-46012 |
US $3.35 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[02.2000 - 07.2002] MCX20 |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[02.2000 - 07.2002] MCX20 |
84340-42010 |
from US $21.26 |
||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[07.2002 - 01.2003] MCX20 |
84340-42010 |
from US $21.26 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[02.2000 - 07.2002] MCX20 |
84550-33010 |
from US $18.39 |
||
|
85530A
|
85530A
90084-98031 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 |
90084-98031 |
US $63.48 |
||
|
85912
|
85912
90987-02016
Relay Assy, Starter
[02.2000 - 07.2002] MCX20 |
90987-02016 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02025 Relay[02.2000 - 07.2002] MCX20 |
90987-02025 |
from US $44.54 |
||
|
85915
|
85915
90084-98031 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 |
90084-98031 |
US $63.48 |
||
|
85916D
|
85916D
90084-98031 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
90987-02012 |
from US $26.99 |
||
|
85916N
|
85916N
90084-98031 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[02.2000 - 07.2002] MCX20 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=90987-02012 |
90987-02012 |
from US $26.99 |
||
|
85940
|
85940
85940-41020 Relay Assy, Windshield Wiper[07.2002 - 01.2003] MCX20 |
85940-41020 |
US $151.42 |
||
|
89221
|
89221
89221-07010 Computer, Multiplex Network Body[02.2000 - 07.2002] MCX20 |
89221-07010 |
US $409.14 |
||
|
89221
|
89221
89221-AC080 Computer, Multiplex Network Body[07.2002 - 01.2003] MCX20 |
89221-AC080 |
US $455.73 |
||
|
89650
|
89650
89650-41010 Computer Assy, Power Steering[02.2000 - 07.2002] MCX20 |
89650-41010 |
US $294.11 |
||
|
89960
|
89960
89960-41010 Computer Assy, Headlamp LevelingHEADLAMP LEVELING [07.2002 - 01.2003] MCX20 |
89960-41010 |
US $430.98 |
||
|
90178A0016
|
90178A0016
90178-A0016
New Genuine Part
|
90178-A0016 |
— | ||
|
91641C0612
|
91641C0612
91641-C0612 New Genuine Part |
91641-C0612 |
US $1.60 |
||
|
9011906106
|
9011906106
90119-06106 New Genuine Part |
90119-06106 |
from US $0.64 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9331614010
|
9331614010
93316-14010
New Genuine Part
|
93316-14010 |
— | ||
