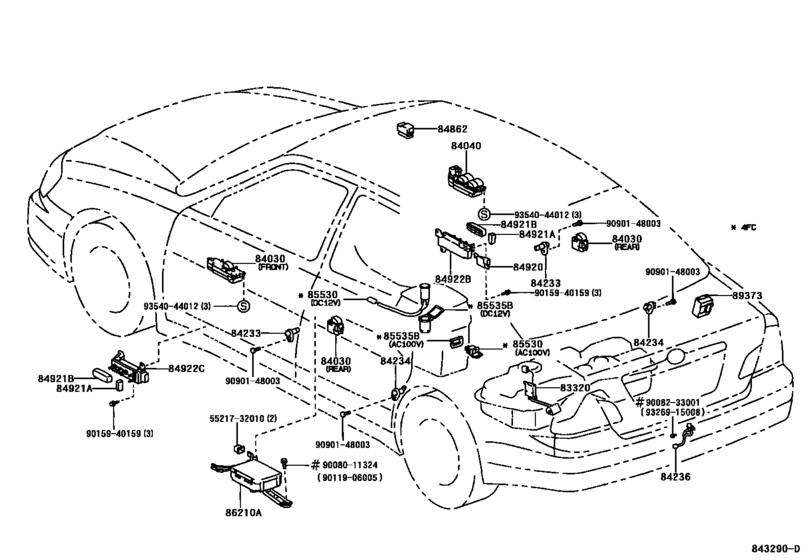

Switch & Relay & Computer ([02.2000 - 01.2003] ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ (0002-0301)) Diagram Toyota PRONARD
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- MCX20
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- Model
- PRONARD
- From
- 02.2000
- To
- 01.2003
- Gear Shift Type
- 4HC
- Vehicle Model
- PRONARD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-06010
Gage Assy, Fuel Sender
[07.2002 - 01.2003] MCX20 （Ｌ） |
83320-06010 |
— | ||
|
83320
|
83320
83320-33070 Gage Assy, Fuel Sender[07.2001 - 10.2001] MCX20 |
83320-33070 |
from US $64.37 |
||
|
83320
|
83320
83320-41020 Gage Assy, Fuel Sender[02.2000 - 07.2001] MCX20 |
83320-41020 |
US $58.39 |
||
|
84030
|
84030
84030-07010 Switch Assy,multiplex Network[02.2000 - 06.2002] MCX20 |
84030-07010 |
US $282.46 |
||
| replacement | |||||
|
84030
|
84030
84030-07011 Switch Assy,multiplex Network[02.2000 - 06.2002] MCX20 |
84030-07011 |
US $282.46 |
||
|
84030
|
84030
84030-07011 Switch Assy,multiplex Network[06.2002 - 07.2002] MCX20 フロント |
84030-07011 |
US $282.46 |
||
|
84030
|
84030
84030-AC030 Switch Assy,multiplex Network[02.2000 - 07.2002] MCX20 リヤ |
84030-AC030 |
US $47.90 |
||
|
84040
|
84040
84040-07010 Master Switch Assy,multiplex Network[02.2000 - 06.2002] MCX20 |
84040-07010 |
US $412.05 |
||
| replacement | |||||
|
84040
|
84040
84040-07011 Master Switch Assy,multiplex Network[02.2000 - 06.2002] MCX20 |
84040-07011 |
US $412.05 |
||
|
84040
|
84040
84040-07011 Master Switch Assy,multiplex Network[06.2002 - 07.2002] MCX20 |
84040-07011 |
US $412.05 |
||
|
84233
|
84233
84231-08010 Switch Assy, Courtesy Lamp (For Front Door)[02.2000 - 02.2002] MCX20 |
84231-08010 |
US $8.88 |
||
|
84233
|
84233
84231-08030 Switch Assy, Courtesy Lamp (For Front Door)[02.2002 - 07.2002] MCX20 |
84231-08030 |
US $10.56 |
||
|
84234
|
84234
84231-AA030 Switch Assy, Courtesy Lamp (For Rear Door)[02.2000 - 07.2002] MCX20 |
84231-AA030 |
US $8.56 |
||
|
84236
|
84236
84231-41020 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[02.2000 - 07.2002] MCX20 |
84231-41020 |
US $14.41 |
||
|
84921A
|
84921A
84921-32020-A0 Knob, Power Seat Switch (For Reclining)[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
84921-32020-A0 |
US $6.84 |
||
| replacement | |||||
|
84921A
|
84921A
84921-32020-C0 Knob, Power Seat Switch (For Reclining)[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
84921-32020-C0 |
US $6.99 |
||
|
84921A
|
84921A
84921-32020-E0 Knob, Power Seat Switch (For Reclining)[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
84921-32020-E0 |
US $6.99 |
||
| replacement | |||||
|
84921A
|
84921A
84921-32020-C0 Knob, Power Seat Switch (For Reclining)[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
84921-32020-C0 |
US $6.99 |
||
|
84921B
|
84921B
84921-32030-A0 Knob, Power Seat Switch (For Slide & Vertical)[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
84921-32030-A0 |
US $20.38 |
||
| replacement | |||||
|
84921B
|
84921B
84921-32030-C0 Knob, Power Seat Switch (For Slide & Vertical)[02.2000 - 07.2002] MCX20 IVORY,TRIM0# |
84921-32030-C0 |
US $27.43 |
||
|
84921B
|
84921B
84921-32030-E0 Knob, Power Seat Switch (For Slide & Vertical)[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
84921-32030-E0 |
US $20.09 |
||
| replacement | |||||
|
84921B
|
84921B
84921-32030-C0 Knob, Power Seat Switch (For Slide & Vertical)[07.2002 - 01.2003] MCX20 FAWN,TRIM4# |
84921-32030-C0 |
US $27.43 |
||
|
84922B
|
84922B
84922-AC020 Switch, Front Power Seat, Rh[02.2000 - 07.2002] MCX20 |
84922-AC020 |
US $147.06 |
||
|
84922C
|
84922C
84922-AC050 Switch, Front Power Seat, Lh[02.2000 - 07.2002] MCX20 |
84922-AC050 |
US $147.06 |
||
|
85530
|
85530
85530-41010 Socket Assy, Power Outlet, No.1[02.2000 - 07.2002] MCX20..4HC DC12V |
85530-41010 |
US $37.56 |
||
| replacement | |||||
|
85530
|
85530
85530-53010 Socket Assy, Power Outlet, No.1[02.2000 - 07.2002] MCX20..4HC DC12V |
85530-53010 |
US $37.56 |
||
|
85530
|
85530
85530-41020 Socket Assy, Power Outlet, No.1[02.2000 - 07.2002] MCX20 AC100V |
85530-41020 |
US $37.56 |
||
|
85535B
|
85535B
85535-41010-A0 Cover, Power Outlet Socket, No.1[02.2000 - 07.2002] MCX20 AC100V,IVORY,TRIM0# |
85535-41010-A0 |
US $9.92 |
||
|
85535B
|
85535B
85535-41010-E0 Cover, Power Outlet Socket, No.1[07.2002 - 01.2003] MCX20 AC100V,FAWN,TRIM4# |
85535-41010-E0 |
US $9.92 |
||
|
85535B
|
85535B
85535-41020 Cover, Power Outlet Socket, No.1[02.2000 - 07.2002] MCX20..4HC DC12V |
85535-41020 |
US $8.30 |
||
| replacement | |||||
|
85535B
|
85535B
85535-33060 Cover, Power Outlet Socket, CenterPOWER POINT SOCKET [02.2000 - 07.2002] MCX20..4HC DC12V |
85535-33060 |
US $6.88 |
||
|
86210A
|
86210A
86210-41010 Inverter Assy, Voltage[02.2000 - 07.2002] MCX20 |
86210-41010 |
US $384.38 |
||
|
89373
|
89373
89373-AC030 Sensor, Lamp Failure Indicator[02.2000 - 07.2002] MCX20 |
89373-AC030 |
US $235.87 |
||
|
5521732010
|
5521732010
55217-32010 Retainer, Dash Panel Silencer |
55217-32010 |
US $1.60 |
||
|
9008011324
|
9008011324
90080-11324
New Genuine Part
|
90080-11324 |
— | ||
|
9008233001
|
9008233001
90082-33001 New Genuine Part |
90082-33001 |
US $2.62 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9015940159
|
9015940159
90159-40159 SCREW WWASHER |
90159-40159 |
from US $1.92 |
||
| replacement | |||||
|
9015940159
|
9015940159
90159-A0028 SCREW WWASHER |
90159-A0028 |
US $2.46 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
