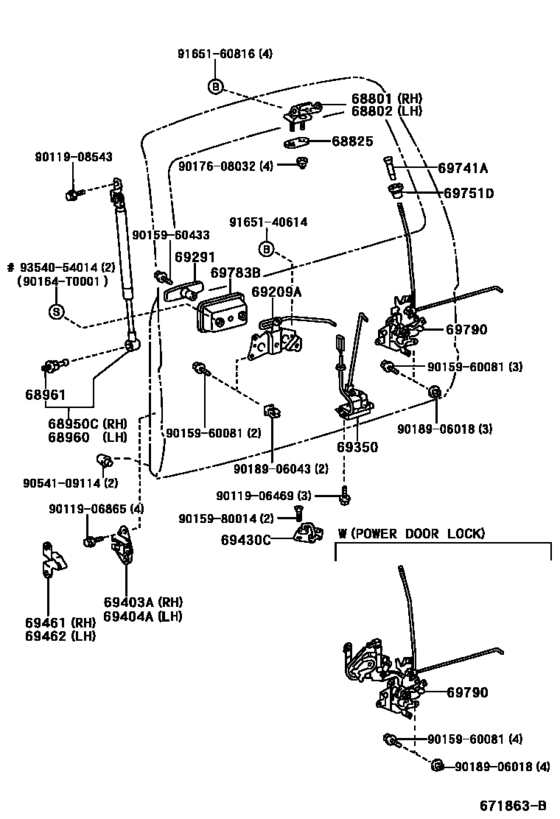

Back Door Lock & Hinge ([12.1999 - ] (9912- )) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68801
|
68801
68801-90P51
Hinge Sub-Assy, Back Door, Upper Rh
[12.1999 -] LF50,RZF50 |
68801-90P51 |
— | ||
|
68802
|
68802
68802-90P50
Hinge Sub-Assy, Back Door, Upper Lh
[12.1999 -] LF50,RZF50 |
68802-90P50 |
— | ||
|
68825
|
68825
68825-95700 Plate, Back Door Hinge[12.1999 -] LF50,RZF50 |
68825-95700 |
US $5.07 |
||
|
68950C
|
68950C
68950-39335
Stay Assy, Back Door, Rh
[12.1999 - 09.2002] LF50,RZF50..DLX,GL W(REAR WIPER) |
68950-39335 |
— | ||
|
68950C
|
68950C
68950-39365
Stay Assy, Back Door, Rh
[09.2002 -] LF50,RZF50..DLX,GL W(REAR WIPER) |
68950-39365 |
— | ||
|
68960
|
68960
68960-39175
Stay Assy, Back Door, Lh
[12.1999 - 09.2002] LF50,RZF50..DLX,GL W(REAR WIPER) |
68960-39175 |
— | ||
|
68960
|
68960
68960-39205
Stay Assy, Back Door, Lh
[09.2002 -] LF50,RZF50..DLX,GL W(REAR WIPER) |
68960-39205 |
— | ||
|
68961
|
68961
68961-28010 Bolt, Back Door Stay[12.1999 -] LF50,RZF50 |
68961-28010 |
US $5.97 |
||
|
69209A
|
69209A
69209-0B020
Handle Sub-Assy, Back Door, Inside
[12.1999 -] LF50,RZF50 |
69209-0B020 |
— | ||
|
69291
|
69291
69291-0B010-B0
Handle Assy, Back Door Inside
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
69291-0B010-B0 |
— | ||
|
69350
|
69350
69350-0B020
Lock Assy, Back Door
[12.1999 -] LF50,RZF50 |
69350-0B020 |
— | ||
|
69403A
|
69403A
69403-38060 Stopper Sub-Assy, Back Door Side Female, RhBACK DOOR SIDE FEMALE, RH [10.2000 -] LF50,RZF50 |
69403-38060 |
US $24.75 |
||
|
69404A
|
69404A
69404-38060 Stopper Sub-Assy, Back Door Side Female, LhBACK DOOR SIDE FEMALE, LH [10.2000 -] LF50,RZF50 |
69404-38060 |
US $24.75 |
||
|
69430C
|
69430C
69430-0B010
Striker Assy, Back Door Lock
[12.1999 -] LF50,RZF50 |
69430-0B010 |
— | ||
|
69461
|
69461
69401-38010 Stopper, Back Door Side Male, Rh[12.1999 -] LF50,RZF50 |
69401-38010 |
US $15.72 |
||
|
69462
|
69462
69402-38010 Stopper, Back Door Side Male, Lh[12.1999 -] LF50,RZF50 |
69402-38010 |
US $15.72 |
||
|
69741A
|
69741A
69741-0B050-B0
Knob, Back Door Lock Control
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
69741-0B050-B0 |
— | ||
|
69751D
|
69751D
69751-0B070-B0
Holder, Door Lock Control Knob(For Back Door)
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
69751-0B070-B0 |
— | ||
|
69783B
|
69783B
69783-0B030-B0
Bezel, Back Door Inside Handle
[12.1999 - 12.2004] LF50,RZF50 BLUISH GRAY,TRIM1# |
69783-0B030-B0 |
— | ||
|
69790
|
69790
69790-0B010
Control Assy, Back Door Lock
[12.1999 -] LF50,RZF50..DLX,GL W(POWER DOOR LOCK) |
69790-0B010 |
— | ||
|
90164T0001
|
90164T0001
90164-T0001
Screw,tapping
|
90164-T0001 |
— | ||
|
9011906469
|
9011906469
90119-06469 New Genuine Part |
90119-06469 |
US $1.60 |
||
|
9011906865
|
9011906865
90119-06865 New Genuine Part |
90119-06865 |
US $1.46 |
||
|
9011908543
|
9011908543
90119-08543
Bolt
|
90119-08543 |
— | ||
| replacement | |||||
|
9011908543
|
9011908543
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960433
|
9015960433
90159-60433 New Genuine Part |
90159-60433 |
US $0.96 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9017608032
|
9017608032
90176-08032 New Genuine Part |
90176-08032 |
US $1.75 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9018906043
|
9018906043
90189-06043 CLIP |
90189-06043 |
from US $0.74 |
||
|
9054109114
|
9054109114
90541-09114 Cushion(For Luggage Compartment Door Panel) |
90541-09114 |
US $1.22 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.42 |
||
