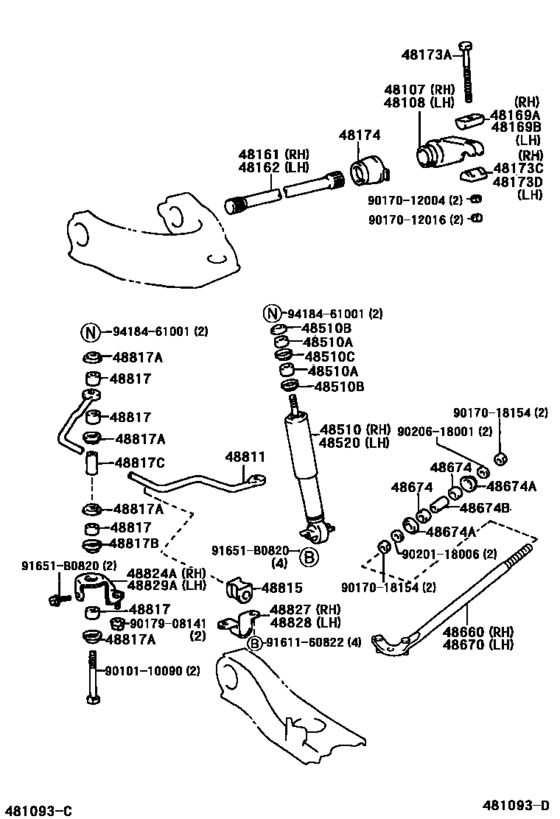

Front Spring & Shock Absorber ([12.1999 - ] (9912- )) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48107
|
48107
48107-27040
Arm Sub-Assy, Anchor, Rh
[12.1999 -] LF50,RZF50 |
48107-27040 |
— | ||
|
48108
|
48108
48108-27030 Arm Sub-Assy, Anchor, Lh[12.1999 -] LF50,RZF50 |
48108-27030 |
US $50.49 |
||
|
48161
|
48161
48161-0B100
Spring, Torsion Bar, Rh
[12.1999 -] LF50,RZF50 |
48161-0B100 |
— | ||
|
48162
|
48162
48162-0B100
Spring, Torsion Bar, Lh
[12.1999 -] LF50,RZF50 |
48162-0B100 |
— | ||
|
48169A
|
48169A
48173-27030 Seat, Anchor Arm Adjuster[12.1999 -] LF50,RZF50 |
48173-27030 |
US $13.54 |
||
|
48169B
|
48169B
48173-27030 Seat, Anchor Arm Adjuster[12.1999 -] LF50,RZF50 |
48173-27030 |
US $13.54 |
||
|
48173A
|
48173A
90101-12059 Bolt, Hexagon(For Anchor Arm Adjusting)[12.1999 -] LF50,RZF50 |
90101-12059 |
US $11.79 |
||
|
48173C
|
48173C
48173-27010 Seat, Anchor Arm Adjuster[12.1999 -] LF50,RZF50 |
48173-27010 |
from US $7.04 |
||
|
48173D
|
48173D
48173-27010 Seat, Anchor Arm Adjuster[12.1999 -] LF50,RZF50 |
48173-27010 |
from US $7.04 |
||
|
48174
|
48174
48175-27010 Cover, Torsion Bar Dust[12.1999 -] LF50,RZF50 |
48175-27010 |
US $8.91 |
||
|
48510
|
48510
48500-0B050
Absorber Assy, Shock, Front Rh
[12.1999 -] LF50,RZF50 MARK 48500-0B050 |
48500-0B050 |
— | ||
|
48510A
|
48510A
90948-01003 Rubber Cushion[12.1999 -] LF50,RZF50 |
90948-01003 |
from US $1.72 |
||
|
48510B
|
48510B
90948-02002 Retainer, Steering Damper Cushion[12.1999 -] LF50,RZF50 |
90948-02002 |
from US $1.74 |
||
|
48510C
|
48510C
90948-02007 Retainer, Steering Damper Cushion[12.1999 -] LF50,RZF50 |
90948-02007 |
from US $1.25 |
||
|
48520
|
48520
48500-0B050
Absorber Assy, Shock, Front Rh
[12.1999 -] LF50,RZF50 MARK 48500-0B050 |
48500-0B050 |
— | ||
|
48660
|
48660
48660-0B020
Bar Assy, Strut, Rh
[12.1999 -] LF50,RZF50 |
48660-0B020 |
— | ||
|
48670
|
48670
48670-0B020
Bar Assy, Strut, Lh
[12.1999 -] LF50,RZF50 |
48670-0B020 |
— | ||
|
48674
|
48674
48674-0B030
Cushion, Strut Bar
[12.1999 -] LF50,RZF50 |
48674-0B030 |
— | ||
|
48674A
|
48674A
90948-02030 Retainer, Cushion(For Strut Bar Cushion)[12.1999 -] LF50,RZF50 |
90948-02030 |
from US $5.75 |
||
|
48674B
|
48674B
90387-18090 Collar(For Strut Bar Cushion)[12.1999 -] LF50,RZF50 |
90387-18090 |
from US $7.29 |
||
|
48811
|
48811
48811-0B020
Bar, Stabilizer, Front
[12.1999 -] LF50,RZF50 |
48811-0B020 |
— | ||
|
48815
|
48815
48815-30100 Bush, Front Stabilizer Bar, No.1[12.1999 -] LF50,RZF50 |
48815-30100 |
from US $8.07 |
||
|
48817
|
48817
90948-01002 Cushion[12.1999 -] LF50,RZF50 |
90948-01002 |
from US $2.75 |
||
|
48817A
|
48817A
90948-02004 Cushion Retainer[12.1999 -] LF50,RZF50 |
90948-02004 |
from US $1.56 |
||
|
48817B
|
48817B
90948-02005 Retainer No.2[12.1999 -] LF50,RZF50 |
90948-02005 |
from US $1.19 |
||
|
48817C
|
48817C
90440-14004 Collar(For Stabilizer Bar)[12.1999 -] LF50,RZF50 |
90440-14004 |
US $9.44 |
||
|
48824A
|
48824A
48824-38040 Bracket, Front Stabilizer, No.1 RhFRONT STABILIZER, NO.1 RH [12.1999 -] LF50,RZF50 |
48824-38040 |
US $19.51 |
||
|
48827
|
48827
48824-38020 Bracket, Front Stabilizer, No.2 RhFRONT STABILIZER, NO.2 RH [12.1999 -] LF50,RZF50 |
48824-38020 |
US $71.49 |
||
|
48828
|
48828
48824-38020 Bracket, Front Stabilizer, No.2 RhFRONT STABILIZER, NO.2 RH [12.1999 -] LF50,RZF50 |
48824-38020 |
US $71.49 |
||
|
48829A
|
48829A
48829-38010 Bracket, Front Stabilizer, No.1 LhFRONT STABILIZER, NO.1 LH [12.1999 -] LF50,RZF50 |
48829-38010 |
US $19.51 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9010110090
|
9010110090
90101-10090 Bolt(For Front Stabilizer) |
90101-10090 |
US $6.08 |
||
|
9017012004
|
9017012004
90170-12004 NUT |
90170-12004 |
from US $1.23 |
||
|
9017012016
|
9017012016
90170-12016 New Genuine Part |
90170-12016 |
US $5.76 |
||
|
9017018154
|
9017018154
90170-18154 New Genuine Part |
90170-18154 |
from US $2.59 |
||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9020118006
|
9020118006
90201-18006 New Genuine Part |
90201-18006 |
US $7.28 |
||
|
9020618001
|
9020618001
90206-18001 WASHER |
90206-18001 |
from US $2.56 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
