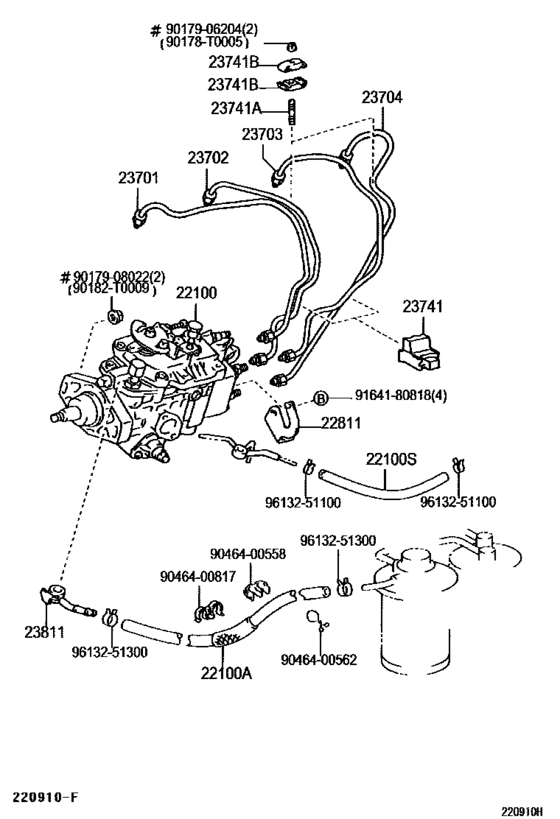

Injection Pump Assembly ([12.1999 - ] (9912- )2L) Diagram Toyota QUALIS
- Year
- 2002 - 2004
- Sales region
- General
- Frame
- LF50
- grade
- GL
- ENGINE
- 2L
- Model
- QUALIS
- From
- 01.2002
- To
- 12.2004
- Vehicle Model
- QUALIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-5D010
Pump Assy, Injection Or Supply
[12.1999 - 09.2002] 2L..LF50..GL |
22100-5D010 |
— | ||
|
22100
|
22100
22100-5D190 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [03.2000 - 12.2004] 2L..LF50 W(EGR) |
22100-5D190 |
US $4,746.56 |
||
|
22100A
|
22100A
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.2000 -] 2L..LF50 *H,L=480,ID=8 |
95333-08060 |
— | ||
|
22100S
|
22100S
23273-54070
Hose, Fuel
[12.1999 -] 2L..LF50 |
23273-54070 |
— | ||
| replacement | |||||
|
22100S
|
22100S
95333-06040 Hose[12.1999 -] 2L..LF50 |
95333-06040 |
from US $11.68 |
||
|
22811
|
22811
22811-05010
Stay, Injection Pump, No.1
[12.1999 - 09.2002] 2L..LF50..GL (L) |
22811-05010 |
— | ||
|
22811
|
22811
22811-54042 Stay, Injection Pump, No.1[12.1999 - 12.2004] 2L..LF50 (J) |
22811-54042 |
US $6.99 |
||
|
23701
|
23701
23701-54140 Pipe Sub-Assy, Injection, No.1[12.1999 - 12.2004] 2L..LF50 |
23701-54140 |
US $25.99 |
||
|
23702
|
23702
23702-54140 Pipe Sub-Assy, Injection, No.2[12.1999 - 12.2004] 2L..LF50 |
23702-54140 |
from US $25.99 |
||
|
23703
|
23703
23703-54100 Pipe Sub-Assy, Injection, No.3[12.1999 - 12.2004] 2L..LF50 |
23703-54100 |
US $25.99 |
||
| replacement | |||||
|
23703
|
23703
23703-05011
Pipe Sub-Assy, Injection, No.3
[12.1999 - 12.2004] 2L..LF50 |
23703-05011 |
— | ||
|
23704
|
23704
23704-54100 Pipe Sub-Assy, Injection, No.4[12.1999 - 12.2004] 2L..LF50 |
23704-54100 |
from US $25.99 |
||
| replacement | |||||
|
23704
|
23704
23704-05010
Pipe Sub-Assy, Injection, No.4
[12.1999 - 12.2004] 2L..LF50 |
23704-05010 |
— | ||
|
23741
|
23741
23741-54030 Clamp, Injection Pipe, No.1[12.1999 - 12.2004] 2L..LF50 |
23741-54030 |
US $7.43 |
||
|
23741A
|
23741A
90080-11036 Bolt, Stud(For Intake Manifold To Glow Plug Connector No.1)[12.1999 - 03.2004] 2L..LF50 (L) |
90080-11036 |
US $1.60 |
||
|
23741A
|
23741A
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover)[12.1999 - 12.2004] 2L..LF50 (J) |
90116-06095 |
US $1.44 |
||
|
23741B
|
23741B
23741-56010 Clamp, Injection Pipe, No.1[12.1999 - 12.2004] 2L..LF50 |
23741-56010 |
from US $6.49 |
||
|
23811
|
23811
23811-05030 Pipe, Fuel(For Fuel Filter To Injection Pump)[12.1999 - 03.2004] 2L..LF50 (L) |
23811-05030 |
US $20.38 |
||
|
23811
|
23811
23811-54172 Pipe, Fuel(For Fuel Filter To Injection Pump)[12.1999 - 12.2004] 2L..LF50 (J) |
23811-54172 |
US $29.41 |
||
|
90178T0005
|
90178T0005
90178-T0005
NUT
|
90178-T0005 |
— | ||
|
90182T0009
|
90182T0009
90182-T0009
New Genuine Part
|
90182-T0009 |
— | ||
|
9017906204
|
9017906204
90179-06204 NUT |
90179-06204 |
US $1.92 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046400558
|
9046400558
90464-00558 Clip Or Clamp (For Heater Water Hose) |
90464-00558 |
US $2.56 |
||
|
9046400562
|
9046400562
90464-00562 Clip(For Deck Trim Rear Cover) |
90464-00562 |
US $1.31 |
||
|
9046400817
|
9046400817
90464-00817 Clamp |
90464-00817 |
US $1.46 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.60 |
||
