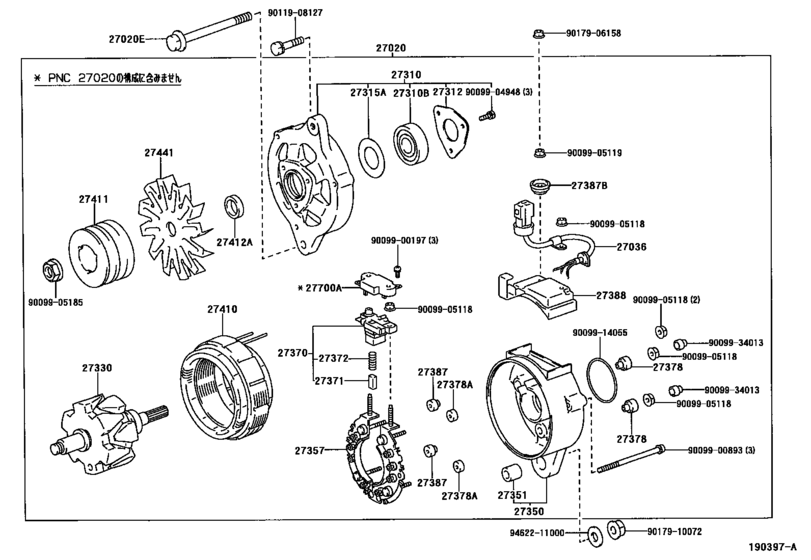

Alternator ([05.1995 - ] 12V 60A (9505- )3L,5L..MTM) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-54393
Alternator Assy
[05.1995 -] 3L,5L..LH82,LY15#..MTM １２Ｖ ６０Ａ |
27020-54393 |
— | ||
|
27020E
|
27020E
90105-10239 Bolt(For Alternator)[12.1998 -] 3L,5L..LH8#,LY15# |
90105-10239 |
US $5.53 |
||
|
27036
|
27036
27036-54320
Terminal Sub-Assy, Lead Wire, Alternator
[05.1995 -] 3L,5L..LH82,LY15#..MTM |
27036-54320 |
— | ||
|
27310
|
27310
27310-54131
Frame Assy, Drive End, Alternator
[05.1995 -] 3L,5L..LH8#,LY15# |
27310-54131 |
— | ||
|
27310B
|
27310B
90099-10137 Bearing(For Alternator Drive End Frame)[05.1995 -] 3L,5L..LH8#,LY15# |
90099-10137 |
US $12.58 |
||
|
27312
|
27312
27312-57060
Plate, Bearing Retainer, Alternator
[05.1995 -] 3L,5L..LH8#,LY15# |
27312-57060 |
— | ||
|
27315A
|
27315A
27315-57060
Cover, Alternator Felt, Inner No.1
[05.1995 -] 3L,5L..LH8#,LY15# |
27315-57060 |
— | ||
|
27330
|
27330
27330-54262
Rotor Assy, Alternator
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27330-54262 |
— | ||
|
27350
|
27350
27350-54130
Frame Assy, Rectifier End
[05.1995 -] 3L,5L..LH8#,LY15# |
27350-54130 |
— | ||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[05.1995 -] 3L,5L..LH8#,LY15# |
27351-56013 |
— | ||
|
27357
|
27357
27353-54393
Holder, Alternator, W/rectifier
[09.1996 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27353-54393 |
— | ||
|
27370
|
27370
27373-64170
Holder Assy, Alternator Brush
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27373-64170 |
— | ||
|
27371
|
27371
27371-54412 Brush, Alternator[05.1995 -] 3L,5L..LH8#,LY15# |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[05.1995 -] 3L,5L..LH8#,LY15# |
27372-56070 |
— | ||
|
27378
|
27378
27378-45020
Insulator, Alternator, No.1
[05.1995 -] 3L,5L..LH8#,LY15# |
27378-45020 |
— | ||
|
27378A
|
27378A
27378-54010
Insulator, Alternator, No.2
[05.1995 -] 3L,5L..LH8#,LY15# |
27378-54010 |
— | ||
|
27387
|
27387
27387-54010
Insulator, Terminal
[05.1995 -] 3L,5L..LH8#,LY15# |
27387-54010 |
— | ||
|
27387B
|
27387B
27387-54390
Insulator, Alternator Terminal
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27387-54390 |
— | ||
|
27388
|
27388
27388-54320
Cover, Alternator Brush
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27388-54320 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27410-43040 |
— | ||
|
27411
|
27411
27411-54351
Pulley, Alternator
[05.1995 -] 3L,5L..LH8#,LY15# |
27411-54351 |
— | ||
|
27412A
|
27412A
27412-57060
Collar Or Nut(For Alternator Drive End Frame)
[05.1995 -] 3L,5L..LH8#,LY15# |
27412-57060 |
— | ||
|
27441
|
27441
27441-64030
Fan, Alternator
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27441-64030 |
— | ||
|
27700A
|
27700A
27700-64040 Regulator Assy, Generator[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27700-64040 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-64110
Regulator Assy, Generator
[05.1995 -] 3L,5L..LY15#; 3L,5L..LH8#..MTM ﾔﾏﾄｳﾝﾕ ｼﾖｳ |
27700-64110 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900893
|
9009900893
90099-00893
BOLT
|
90099-00893 |
— | ||
|
9009904948
|
9009904948
90099-04948
New Genuine Part
|
90099-04948 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009914055
|
9009914055
90099-14055
Packing, Vacuum Pump
|
90099-14055 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9011908127
|
9011908127
90119-08127 BOLT |
90119-08127 |
US $1.14 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910072
|
9017910072
90179-10072 Nut (For Differential Side Gear Shaft) |
90179-10072 |
from US $0.94 |
||
|
9462211000
|
9462211000
94622-11000 WASHER |
94622-11000 |
from US $1.42 |
||
