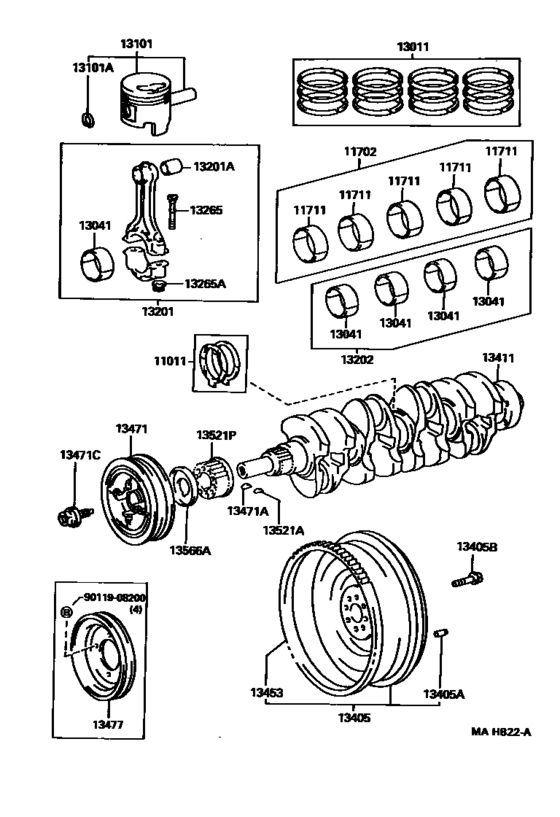

Crankshaft & Piston ([05.1999 - ] (9505-9905)3L ; (9905- )5L) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-54020 Washer Set, Crankshaft Thrust[05.1995 -] 3L,5L..LH8#,LY15# ＳＴＤ |
11011-54020 |
from US $17.02 |
||
|
11011
|
11011
11012-54020 Washer Set, Crankshaft Thrust[05.1995 -] 3L,5L..LH8#,LY15# Ｏ／Ｓ ０．１２５ |
11012-54020 |
US $17.30 |
||
|
11011
|
11011
11013-54020 Washer Set, Crankshaft Thrust[05.1995 -] 3L,5L..LH8#,LY15# Ｏ／Ｓ ０．２５０ |
11013-54020 |
US $17.30 |
||
|
11702
|
11702
11704-54061
Bearing Set, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．２５ |
11704-54061 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-54081 Bearing Set, Crankshaft (0.25)[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．２５ |
11704-54081 |
from US $112.24 |
||
|
11702
|
11702
11705-54061
Bearing Set, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．５０ |
11705-54061 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-54081 Bearing Set, Crankshaft (0.50)[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．５０ |
11705-54081 |
from US $119.40 |
||
|
11711
|
11711
11701-54061-01
Bearing, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# MARK 1 |
11701-54061-01 |
— | ||
| replacements | |||||
|
11711
|
11711
11701-54081-01 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 3L,5L..LH8#,LY15# MARK 1 |
11701-54081-01 |
from US $18.62 |
||
|
11711
|
11711
11701-51081-01
Bearing, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# MARK 1 |
11701-51081-01 |
— | ||
|
11711
|
11711
11701-54061-02
Bearing, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# MARK 2 |
11701-54061-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-54081-02 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 3L,5L..LH8#,LY15# MARK 2 |
11701-54081-02 |
from US $18.84 |
||
|
11711
|
11711
11701-54061-03
Bearing, Crankshaft
[05.1995 -] 3L,5L..LH8#,LY15# MARK 3 |
11701-54061-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-54081-03 Bearing, CrankshaftCRANKSHAFT [05.1995 -] 3L,5L..LH8#,LY15# MARK 3 |
11701-54081-03 |
from US $21.14 |
||
|
13011
|
13011
13011-54130 Piston Ring Set (STD)[05.1999 -] 5L..LH82,LY152 ＳＴＤ |
13011-54130 |
US $202.68 |
||
|
13011
|
13011
13013-54130 Ring Set, Piston[05.1999 -] 5L..LH82,LY152 Ｏ／Ｓ ０．５０ |
13013-54130 |
from US $229.01 |
||
|
13041
|
13041
13041-54041-01
Bearing, Connecting Rod
[05.1995 -] 3L,5L..LH8#,LY15# MARK 1 |
13041-54041-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-54042-01 Bearing, Connecting RodCONNECTING ROD [05.1995 -] 3L,5L..LH8#,LY15# MARK 1 |
13041-54042-01 |
from US $13.53 |
||
|
13041
|
13041
13041-54041-02
Bearing, Connecting Rod
[05.1995 -] 3L,5L..LH8#,LY15# MARK 2 |
13041-54041-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-54042-02 Bearing, Connecting RodCONNECTING ROD [05.1995 -] 3L,5L..LH8#,LY15# MARK 2 |
13041-54042-02 |
from US $13.75 |
||
|
13041
|
13041
13041-54041-03 Bearing, Connecting Rod[05.1995 -] 3L,5L..LH8#,LY15# MARK 3 |
13041-54041-03 |
US $35.53 |
||
| replacement | |||||
|
13041
|
13041
13041-54042-03 Bearing, Connecting RodCONNECTING ROD [05.1995 -] 3L,5L..LH8#,LY15# MARK 3 |
13041-54042-03 |
from US $14.78 |
||
|
13101
|
13101
13101-54120-01 Piston Sub-Assy, W/pin[05.1999 -] 5L..LH82,LY152 ＳＴＤ,MARK 1 |
13101-54120-01 |
from US $124.14 |
||
|
13101
|
13101
13101-54120-02 Piston Sub-Assy, W/pin[05.1999 -] 5L..LH82,LY152 ＳＴＤ,MARK 2 |
13101-54120-02 |
from US $100.66 |
||
|
13101
|
13101
13101-54120-03 Piston Sub-Assy, W/pin[05.1999 -] 5L..LH82,LY152 ＳＴＤ,MARK 3 |
13101-54120-03 |
US $163.07 |
||
|
13101
|
13101
13103-54120 Piston Sub-Assy, W/pin[05.1999 -] 5L..LH82,LY152 Ｏ／Ｓ ０．５０ |
13103-54120 |
from US $166.78 |
||
|
13101A
|
13101A
90521-31001 Ring, Hole Snap(For Piston Pin)[05.1995 -] 3L,5L..LH8#,LY15# |
90521-31001 |
US $1.31 |
||
|
13201
|
13201
13201-59106
Rod Sub-Assy, Connecting
[03.1998 -] 3L,5L..LH8#,LY15# |
13201-59106 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-59216 Rod Sub-Assy, ConnectingCONNECTING [03.1998 -] 3L,5L..LH8#,LY15# |
13201-59216 |
from US $154.08 |
||
|
13201A
|
13201A
90999-73115 Bush(For Connecting Rod Small End)[05.1995 -] 3L,5L..LH8#,LY15# |
90999-73115 |
from US $9.43 |
||
|
13202
|
13202
13204-54041
Bearing Set, Connecting Rod
[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．２５ |
13204-54041 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-54042 Bearing Set, Connecting Rod (0.25)[05.1995 -] 3L,5L..LH8#,LY15# Ｕ／Ｓ ０．２５ |
13204-54042 |
from US $63.36 |
||
|
13265
|
13265
13265-54021 Bolt, Connecting Rod[03.1998 -] 3L,5L..LH8#,LY15# |
13265-54021 |
from US $3.71 |
||
|
13265A
|
13265A
90179-10123 Nut, Hexagon(For Connecting Rod Bolt)[05.1995 -] 3L,5L..LH8#,LY15# |
90179-10123 |
from US $0.99 |
||
|
13405
|
13405
13405-54080 Flywheel Sub-Assy[05.1995 -] 3L,5L..LH8#,LY15#..MTM |
13405-54080 |
from US $284.20 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[05.1995 -] 3L,5L..LH8#,LY15#..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-12109 Bolt, Flywheel Setting[05.1995 -] 3L,5L..LH8#,LY15#..MTM |
90105-12109 |
US $4.16 |
||
|
13411
|
13411
13401-54061 Crankshaft[08.1996 -] 3L,5L..LH8#,LY15# |
13401-54061 |
US $1,994.72 |
||
| replacement | |||||
|
13411
|
13411
13401-54100 Crankshaft[08.1996 -] 3L,5L..LH8#,LY15# |
13401-54100 |
from US $1,184.25 |
||
|
13453
|
13453
13453-54010 Gear, Flywheel Ring[05.1995 -] 3L,5L..LH8#,LY15#..MTM |
13453-54010 |
US $129.29 |
||
|
13471
|
13471
13408-54090 Pulley, Crankshaft[08.1996 -] 3L,5L..LH8#,LY15# |
13408-54090 |
from US $139.12 |
||
|
13471A
|
13471A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[05.1995 -] 3L,5L..LH8#,LY15# |
95161-30622 |
from US $1.56 |
||
|
13471C
|
13471C
90901-19028 Bolt(For Crankshaft Pulley Set)[05.1995 -] 3L,5L..LH8#,LY15# |
90901-19028 |
from US $6.92 |
||
|
13477
|
13477
88451-35030 Pulley, Crankshaft, No.2[05.1995 -] 3L,5L..LH8#,LY15# |
88451-35030 |
US $53.05 |
||
|
13521A
|
13521A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[05.1995 -] 3L,5L..LH8#,LY15# |
95161-30622 |
from US $1.56 |
||
|
13521P
|
13521P
13521-54030 Pulley, Crankshaft Timing[05.1995 -] 3L,5L..LH8#,LY15# |
13521-54030 |
from US $41.96 |
||
|
13566A
|
13566A
13566-54040 Guide, Timing Belt[05.1995 -] 3L,5L..LH8#,LY15# |
13566-54040 |
from US $3.90 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
