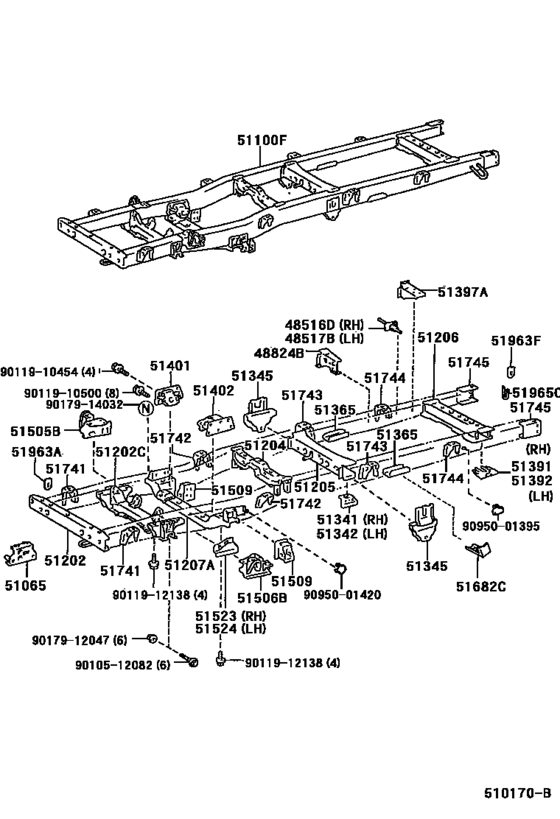

Frame ([05.1995 - ] (9505- )LY15#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48516D
|
48516D
48505-26010 Bracket, Rear Shock Absorber, Upper Rh[05.1995 -] LH8#,LY15# |
48505-26010 |
US $24.32 |
||
|
48517B
|
48517B
48505-26010 Bracket, Rear Shock Absorber, Upper Rh[05.1995 -] LH8#,LY15# |
48505-26010 |
US $24.32 |
||
|
48824B
|
48824B
48824-26060 Bracket, Stabilizer[05.1995 - 09.2000] LH8#,LY15# |
48824-26060 |
US $54.60 |
||
| replacement | |||||
|
48824B
|
48824B
48824-26061 Bracket, Stabilizer[05.1995 - 09.2000] LH8#,LY15# |
48824-26061 |
US $54.60 |
||
|
48824B
|
48824B
48824-26061 Bracket, Stabilizer[09.2000 -] LH82,LY152 |
48824-26061 |
US $54.60 |
||
|
51065
|
51065
51065-26020 Support Sub-Assy, Steering Gear Box[05.1995 -] LH8#,LY15# |
51065-26020 |
US $109.20 |
||
|
51100F
|
51100F
51003-25040 Frame Sub-Assy[05.1995 -] LY15# |
51003-25040 |
US $3,217.76 |
||
|
51202
|
51202
51201-25110 Crossmember Sub-Assy, Frame, No.1[05.1995 -] LH8#,LY15# |
51201-25110 |
US $214.03 |
||
|
51202C
|
51202C
51202-26050 Crossmember Sub-Assy, Front Suspension, Lower[05.1995 -] LY15# |
51202-26050 |
US $481.94 |
||
|
51204
|
51204
51203-26131 Crossmember Sub-Assy, Frame, No.2[05.1995 - 07.1999] LY15# |
51203-26131 |
US $320.32 |
||
| replacement | |||||
|
51204
|
51204
51203-26132 Crossmember Sub-Assy, Frame, No.3[05.1995 - 07.1999] LY15# |
51203-26132 |
US $320.32 |
||
|
51204
|
51204
51203-26132 Crossmember Sub-Assy, Frame, No.3[07.1999 -] LY152 |
51203-26132 |
US $320.32 |
||
|
51205
|
51205
51204-26021 Crossmember Sub-Assy, Frame, No.4[06.1996 -] LH8#,LY15# |
51204-26021 |
US $131.04 |
||
|
51206
|
51206
51209-26040 Crossmember Sub-Assy, Frame, No.5[05.1995 -] LH8#,LY15# |
51209-26040 |
US $163.07 |
||
|
51207A
|
51207A
51207-26010 Member Sub-Assy, Differential Support[05.1995 -] LY15# |
51207-26010 |
US $509.60 |
||
|
51341
|
51341
51342-26020 Gusset, Frame No.4 Crossmember, Rh[05.1995 -] LH8#,LY15# |
51342-26020 |
US $11.07 |
||
|
51342
|
51342
51342-26020 Gusset, Frame No.4 Crossmember, Rh[05.1995 -] LH8#,LY15# |
51342-26020 |
US $11.07 |
||
|
51345
|
51345
51345-26030 Bracket, Rear Spring, Front[05.1995 -] LH8#,LY15# |
51345-26030 |
US $170.35 |
||
|
51365
|
51365
51365-26020 Stopper, Rear Bumper[05.1995 -] LH8#,LY15# |
51365-26020 |
US $15.58 |
||
|
51391
|
51391
51393-26010 Gusset, Frame Rear Crossmember, Rh[05.1995 -] LH8#,LY15# |
51393-26010 |
US $21.69 |
||
|
51392
|
51392
51393-26010 Gusset, Frame Rear Crossmember, Rh[05.1995 -] LH8#,LY15# |
51393-26010 |
US $21.69 |
||
|
51397A
|
51397A
51397-26010 Bracket, Exhaust Pipe Clamp, No.3[05.1995 -] LH8#,LY15# |
51397-26010 |
US $12.52 |
||
|
51401
|
51401
51401-26020 Bracket Sub-Assy, Engine Front Mounting, Rh[05.1995 -] LY15# |
51401-26020 |
US $101.92 |
||
|
51402
|
51402
51402-26010 Bracket Sub-Assy, Engine Front Mounting, Lh[05.1995 -] LY15# |
51402-26010 |
US $101.92 |
||
|
51505B
|
51505B
51505-26021 Support Sub-Assy, Upper Control Arm[05.1995 -] LY15# |
51505-26021 |
US $189.28 |
||
|
51506B
|
51506B
51506-26020 Support Sub-Assy, Upper Control Arm[05.1995 -] LY15# |
51506-26020 |
US $270.82 |
||
|
51509
|
51509
51509-26010 Support Sub-Assy, Stabilizer[05.1995 -] LY15# |
51509-26010 |
US $49.94 |
||
|
51523
|
51523
51523-26030 Reinforcement, Upper Control Arm Support, Rh[05.1995 -] LY15# |
51523-26030 |
US $33.05 |
||
|
51524
|
51524
51524-26030 Reinforcement, Upper Control Arm Support, Lh[05.1995 -] LY15# |
51524-26030 |
US $33.05 |
||
|
51682C
|
51682C
51682-26010 Bracket, Flexible Hose, Lh[05.1995 -] LH8#,LY15# |
51682-26010 |
US $7.43 |
||
|
51741
|
51741
51711-26080 Bracket Sub-Assy, Cab Mounting, No.1 Rh[05.1995 -] LH8#,LY15# |
51711-26080 |
US $27.66 |
||
|
51742
|
51742
51743-26010 Bracket, Rear Body Mounting, No.1[05.1995 -] LH8#,LY15# |
51743-26010 |
US $15.58 |
||
|
51743
|
51743
51711-26080 Bracket Sub-Assy, Cab Mounting, No.1 Rh[05.1995 -] LH8#,LY15# |
51711-26080 |
US $27.66 |
||
|
51744
|
51744
51743-26010 Bracket, Rear Body Mounting, No.1[05.1995 -] LH8#,LY15# |
51743-26010 |
US $15.58 |
||
|
51745
|
51745
51744-26011 Bracket, Body Mounting, No.5[05.1995 -] LH8#,LY15# |
51744-26011 |
US $123.76 |
||
|
51963A
|
51963A
51963-26041 Hook, Transport, Front Rh[05.1995 -] LH8#,LY15# |
51963-26041 |
US $18.78 |
||
|
51963F
|
51963F
51963-26041 Hook, Transport, Front Rh[05.1995 -] LH8#,LY15# |
51963-26041 |
US $18.78 |
||
|
51965C
|
51965C
51965-26031 Hook, Rear[05.1995 -] LH8#,LY15# |
51965-26031 |
US $24.75 |
||
|
9010512082
|
9010512082
90105-12082 Bolt(For Strut Rod) |
90105-12082 |
US $6.08 |
||
|
9011910454
|
9011910454
90119-10454 New Genuine Part |
90119-10454 |
US $2.04 |
||
|
9011910500
|
9011910500
90119-10500 New Genuine Part |
90119-10500 |
US $4.08 |
||
|
9011912138
|
9011912138
90119-12138 New Genuine Part |
90119-12138 |
US $2.48 |
||
|
9017912047
|
9017912047
90179-12047 Nut(For Front Stabilizer Link) |
90179-12047 |
from US $1.21 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
from US $1.19 |
||
|
9095001395
|
9095001395
90950-01395 Plug, Hole(For Frame) |
90950-01395 |
from US $2.16 |
||
|
9095001420
|
9095001420
90950-01420 Plug, Hole(For Frame) |
90950-01420 |
US $1.31 |
||
