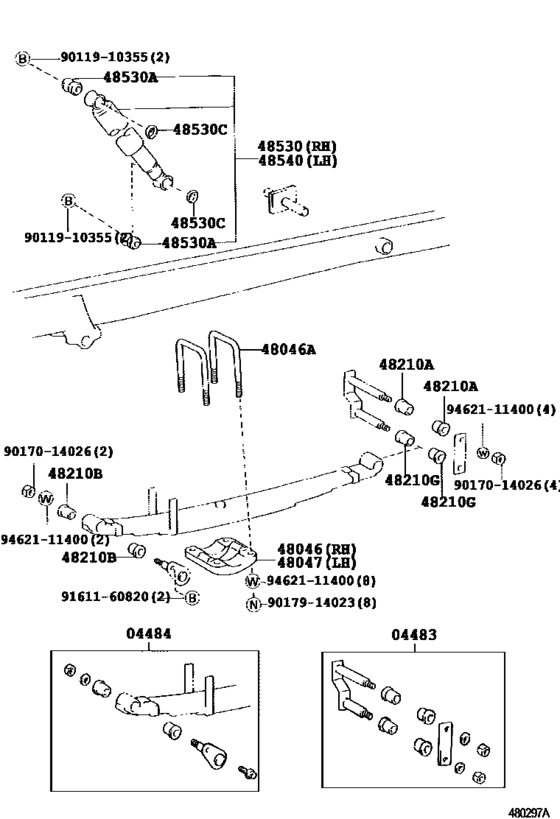

Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LH8#,LY15#) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- LY152
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY
- From
- 05.1999
- To
- 08.2001
- Vehicle Model
- QUICK DELIVERY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-26090 Shackle Kit, Rear Spring[05.1995 - 08.2001] LH8#,LY15# |
04483-26090 |
US $65.37 |
||
|
04484
|
04484
04484-26030 Pin Kit, Rear Spring[05.1995 - 08.2001] LH8#,LY15# |
04484-26030 |
US $30.40 |
||
|
48046
|
48046
48046-26080 Seat Sub-Assy, Spring U Bolt, Rh[05.1995 -] LH8#,LY15# |
48046-26080 |
US $55.91 |
||
|
48046A
|
48046A
90117-14034 Bolt, U(For Rear Spring)[05.1995 -] LY15# 長さ＝２０６ |
90117-14034 |
US $24.46 |
||
|
48047
|
48047
48046-26080 Seat Sub-Assy, Spring U Bolt, Rh[05.1995 -] LH8#,LY15# |
48046-26080 |
US $55.91 |
||
|
48210A
|
48210A
90385-18011 Bush(For Rear Spring Shackle Upper)[05.1995 -] LH8#,LY15# |
90385-18011 |
US $6.24 |
||
|
48210B
|
48210B
90385-18046 Bush(For Front Spring Shackle)[05.1995 -] LH8#,LY15# |
90385-18046 |
from US $2.22 |
||
|
48210G
|
48210G
90385-18046 Bush(For Front Spring Shackle)[05.1995 -] LH8#,LY15# |
90385-18046 |
from US $2.22 |
||
|
48530
|
48530
48531-80556 Absorber Assy, Shock, Rear Rh[07.1996 -] LY15# |
48531-80556 |
US $91.73 |
||
|
48530A
|
48530A
90385-16010 Bush(For Front Shock Absorber Rh)[05.1995 -] LH8#,LY15# |
90385-16010 |
from US $2.67 |
||
|
48530C
|
48530C
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[05.1995 -] LH8#,LY15# |
90948-03004 |
from US $1.37 |
||
|
48540
|
48540
48531-80556 Absorber Assy, Shock, Rear Rh[07.1996 -] LY15# |
48531-80556 |
US $91.73 |
||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
US $3.84 |
||
|
9017014026
|
9017014026
90170-14026 Nut(For Front Support To Front Shock Absorber Rh) |
90170-14026 |
from US $0.96 |
||
|
9017914023
|
9017914023
90179-14023 Nut(For Rear Spring U Bolt) |
90179-14023 |
US $3.52 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9462111400
|
9462111400
94621-11400 WASHER |
94621-11400 |
from US $2.56 |
||
