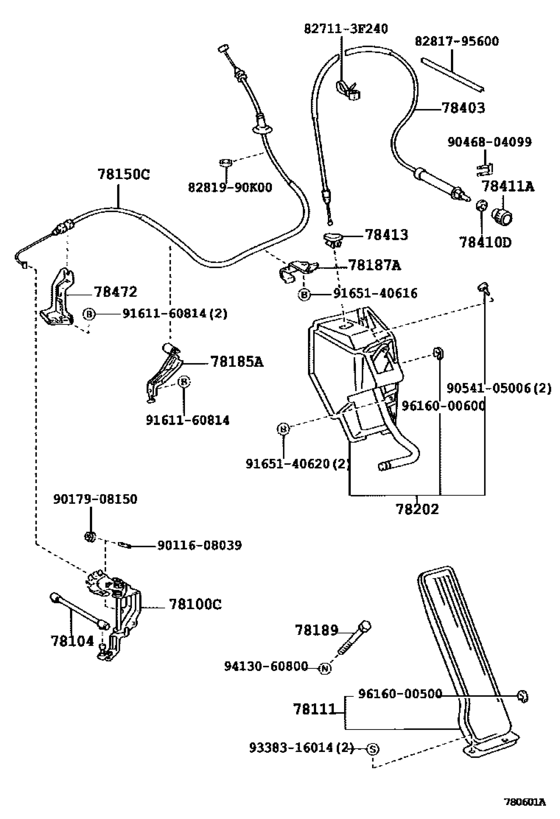

Accelerator Link ([08.2001 - 07.2004] (0108-0407)LY228,270) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- LY228
- grade
- D
- ENGINE
- 5L
- TRANSMISSION
- MTM
- Model
- URBAN SUPPORTER
- From
- 08.2001
- To
- 07.2004
- Vehicle Model
- URBAN SUPPORTER
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100C
|
78100C
78100-25011 Link Assy, Accelerator[08.2001 - 07.2004] LY228,270 |
78100-25011 |
US $54.02 |
||
|
78104
|
78104
78104-22140 Rod Sub-Assy, Accelerator Connecting, No.2[08.2001 - 07.2004] LY228,270 |
78104-22140 |
from US $7.08 |
||
|
78111
|
78111
78110-95410 Pedal, Accelerator[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28# |
78110-95410 |
from US $19.91 |
||
|
78150C
|
78150C
78150-37590 Wire Assy, Accelerator Flexible[08.2001 - 07.2004] LY228,270 |
78150-37590 |
US $68.43 |
||
|
78185A
|
78185A
78185-37040 Clamp, Accelerator Control Cable, No.2[08.2001 - 07.2004] LY228,270 |
78185-37040 |
US $11.36 |
||
|
78187A
|
78187A
78187-36030 Clamp, Accelerator Control Cable, No.4[08.2001 - 07.2004] LY228,270 |
78187-36030 |
US $3.20 |
||
|
78189
|
78189
91131-40855 Bolt, Accelerator Pedal Stopper[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU28# |
91131-40855 |
US $3.49 |
||
|
78202
|
78202
78202-95400 Link, Accelerator[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU281..DSL,LPG |
78202-95400 |
US $106.40 |
||
|
78403
|
78403
78404-37090 Cable Sub-Assy, Throttle Control[08.1999 - 07.2004] BU28#,LY228,270..DSL |
78404-37090 |
US $32.18 |
||
|
78410D
|
78410D
78314-95010 Nut, Choke[08.1999 - 07.2004] BU28#,LY228,270..DSL |
78314-95010 |
from US $1.88 |
||
|
78411A
|
78411A
78411-22010 Knob, Throttle Cable[08.1999 - 07.2004] BU28#,LY228,270..DSL |
78411-22010 |
US $8.91 |
||
|
78413
|
78413
78413-95701 Cover, Throttle Control Cable[08.1999 - 10.2006] BU28#,LY228,270,RZU280,XZU281..DSL,LPG |
78413-95701 |
US $2.18 |
||
|
78472
|
78472
78472-25011 Support, Throttle Control Cable[08.2001 - 07.2004] LY228,270 |
78472-25011 |
US $22.42 |
||
|
827113F240
|
827113F240
82711-3F240 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F240 |
US $3.04 |
||
|
8281990K00
|
8281990K00
82819-90K00 Grommet, Wiring Harness |
82819-90K00 |
US $8.30 |
||
|
8281795600
|
8281795600
82817-95600 Protector, Wiring Harness, No.1 |
82817-95600 |
US $3.93 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9046804099
|
9046804099
90468-04099 New Genuine Part |
90468-04099 |
US $1.22 |
||
|
9054105006
|
9054105006
90541-05006 Cushion (For Accelerator Rod) |
90541-05006 |
US $1.16 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9338316014
|
9338316014
93383-16014
New Genuine Part
|
93383-16014 |
— | ||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $0.84 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
