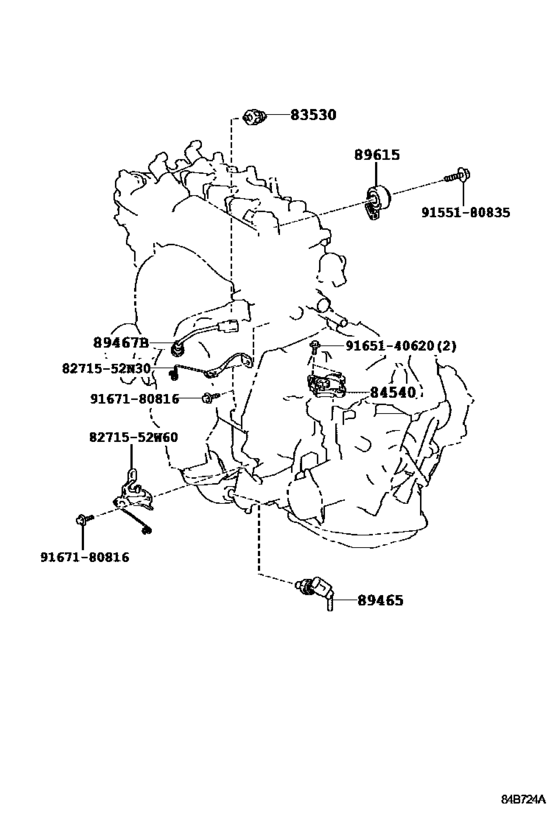

Switch & Relay & Computer ([11.2010 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ (1011- )NSP12#) Diagram Toyota RACTIS
- Year
- 2014 - 2016
- Sales region
- Japan
- Frame
- NSP122
- grade
- X
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 05.2014
- To
- 07.2016
- Fuel Induction
- HTWCB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.2014 -] NCP12#,NSP12# ＤＥＮＳＯ |
83530-28020 |
from US $26.60 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2014 -] NCP12#,NSP12# ＤＥＮＳＯ |
83530-60020 |
from US $25.43 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.2014 -] NCP12#,NSP12# ＤＥＮＳＯ |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2014 -] NCP12#,NSP12# ＹＡＺＡＫＩ |
83530-60020 |
from US $25.43 |
||
|
84540
|
84540
84540-52070 Switch Assy, Neutral Start[05.2014 - 07.2016] NCP12#,NSP12# |
84540-52070 |
from US $112.48 |
||
|
89465
|
89465
89465-52740 Sensor, Oxygen[05.2014 -] NSP12# |
89465-52740 |
from US $96.20 |
||
|
89467B
|
89467B
89467-52240 Sensor, Air Fuel Ratio[05.2014 -] NSP12# |
89467-52240 |
US $156.96 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[05.2014 -] NCP12#,NSP12# |
89615-20090 |
from US $36.02 |
||
|
8271552N30
|
8271552N30
82715-52N30 Bracket,wiring Harness Clamp |
82715-52N30 |
US $4.66 |
||
|
8271552W60
|
8271552W60
82715-52W60 Bracket,wiring Harness Clamp |
82715-52W60 |
US $6.26 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.82 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
