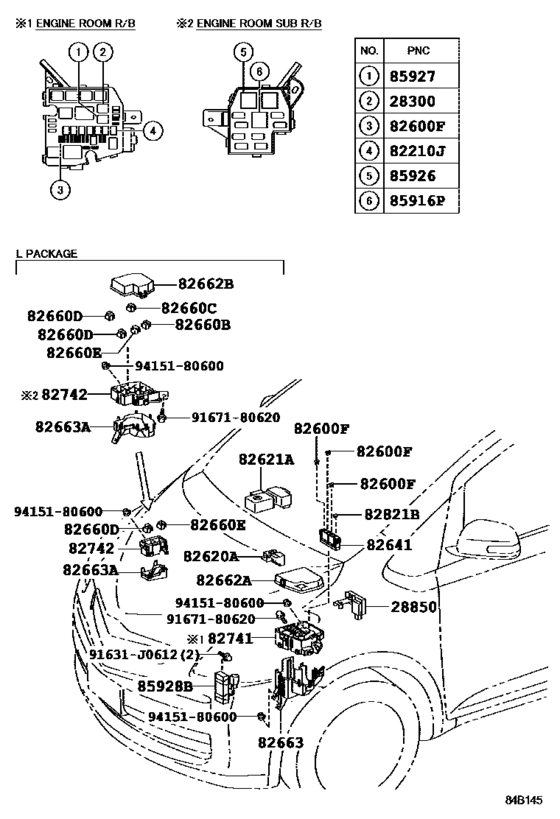

Switch & Relay & Computer ([10.2009 - ] ENGINE ROOM (0910- )) Diagram Toyota RACTIS
- Year
- 2009 - 2010
- Sales region
- General
- Frame
- SCP100
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- DESTINATION
- HON
- From
- 10.2009
- To
- 08.2010
- Gear Shift Type
- CVFC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-28010
Relay Assy, Starter
[10.2009 -] 2SZFE..SCP100 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[10.2009 -] 2SZFE..SCP100 |
28300-21020 |
from US $40.58 |
||
|
28850
|
28850
28850-40010 Sensor Assy, Battery Current[10.2009 - 08.2010] 2SZFE..SCP100 |
28850-40010 |
US $81.40 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[10.2009 - 08.2010] SCP100 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[10.2009 - 08.2010] SCP100 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[10.2009 - 08.2010] SCP100 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[10.2009 - 08.2010] SCP100 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[10.2009 - 08.2010] SCP100 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[10.2009 - 08.2010] SCP100 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[10.2009 - 08.2010] SCP100 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[10.2009 - 08.2010] SCP100 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[10.2009 - 08.2010] SCP100 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82620A
|
82620A
82620-52050 Block Assy, Fusible Link[10.2009 - 08.2010] SCP100 |
82620-52050 |
from US $9.77 |
||
|
82621A
|
82621A
82621-52120 Cover, Fusible Link[10.2009 - 08.2010] SCP100 |
82621-52120 |
US $30.58 |
||
|
82641
|
82641
82641-47020 Relay, Integration No.1[10.2009 - 08.2010] SCP100 |
82641-47020 |
from US $79.92 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[10.2009 - 08.2010] SCP100 L PACKAGE |
82660-0H070 |
US $6.99 |
||
|
82660C
|
82660C
82660-26270 Block Assy, Relay, Engine Room[10.2009 - 08.2010] SCP100 L PACKAGE |
82660-26270 |
US $8.48 |
||
|
82660D
|
82660D
82660-52020 Block Assy, Relay[10.2009 - 08.2010] SCP100 L PACKAGE |
82660-52020 |
US $7.13 |
||
|
82660E
|
82660E
82660-52010 Block Assy, Relay[10.2009 - 08.2010] SCP100 L PACKAGE |
82660-52010 |
US $7.13 |
||
|
82662A
|
82662A
82662-52290 Cover, Relay Block, Upper, No.1[10.2009 -] SCP100 L PACKAGE |
82662-52290 |
US $18.20 |
||
|
82662A
|
82662A
82662-52560 Cover, Relay Block, Upper, No.1[10.2009 -] SCP100 |
82662-52560 |
US $21.69 |
||
|
82662B
|
82662B
82662-52320 Cover, Relay Block, Upper, No.2[10.2009 - 08.2010] SCP100 L PACKAGE |
82662-52320 |
US $17.82 |
||
|
82663
|
82663
82663-52031 Cover, Relay Block, Lower[10.2009 - 08.2010] SCP100 |
82663-52031 |
US $45.25 |
||
|
82663A
|
82663A
82663-52070 Cover, Relay Block, Lower, No.2[10.2009 - 08.2010] SCP100 L PACKAGE |
82663-52070 |
US $13.83 |
||
|
82741
|
82741
82741-52041 Block, Engine Room Relay[10.2009 - 08.2010] SCP100 |
82741-52041 |
US $86.31 |
||
|
82742
|
82742
82741-52060 Block, Engine Room Relay, No.2[10.2009 - 08.2010] SCP100 L PACKAGE |
82741-52060 |
US $25.92 |
||
|
82821B
|
82821B
82821-47090 Cover, Connector[10.2009 - 08.2010] SCP100 |
82821-47090 |
US $0.15 |
||
|
85916P
|
85916P
90987-02025 Relay[10.2009 -] SCP100 L PACKAGE |
90987-02025 |
from US $44.54 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[10.2009 -] SCP100 L PACKAGE |
90987-04010 |
from US $42.71 |
||
|
85927
|
85927
90987-04004 Relay, Starter Cut[10.2009 -] SCP100 |
90987-04004 |
from US $42.71 |
||
|
85928B
|
85928B
85928-52030
Resistor, Cooling Fan
[10.2009 -] SCP100 |
85928-52030 |
— | ||
| replacement | |||||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[10.2009 -] SCP100 |
85928-52032 |
from US $71.90 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
