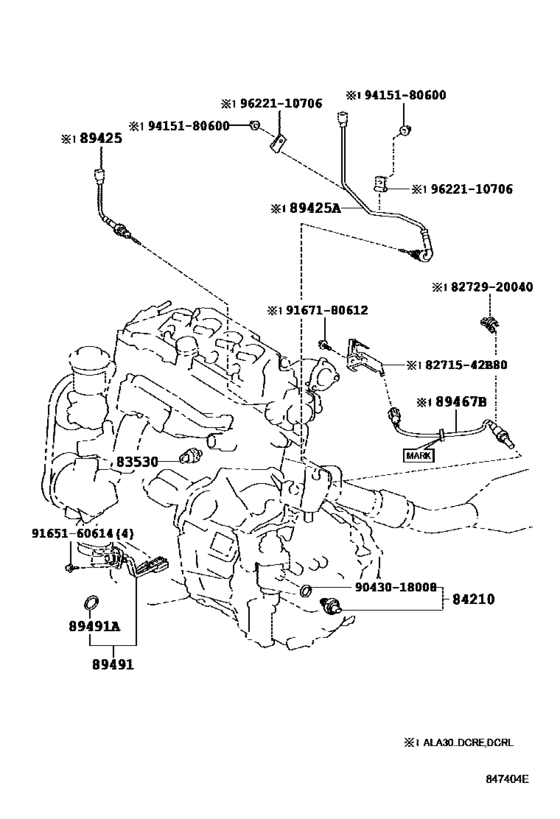

Switch & Relay & Computer ([11.2005 - 12.2008] ENGINE & TRANSMISSION (0511-0812)ALA30) Diagram Toyota RAV4/VANGUARD
- Year
- 2007 - 2010
- Sales region
- General
- Frame
- ALA30
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 01.2007
- To
- 02.2010
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- LHD
- Fuel Induction
- DCRE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[11.2005 - 12.2008] ALA30 |
83530-60010 |
from US $26.29 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2005 - 12.2008] ACA30,ALA30..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2005 - 12.2008] ACA30,ALA30..MTM |
84210-52050 |
from US $20.67 |
||
|
89425
|
89425
89425-20360 Sensor, Exhaust Gas TemperatureEXHAUST GAS TEMPERATURE [11.2005 - 12.2008] ALA30..DCRE,DCRL |
89425-20360 |
US $293.88 |
||
|
89425
|
89425
89425-20380
Sensor, Exhaust Gas Temperature
[12.2008 - 12.2012] ALA3#..DCRE,DCRL |
89425-20380 |
— | ||
|
89425A
|
89425A
89425-20390
Sensor, Exhaust Gas Temperature, No.2
[12.2008 - 12.2012] ALA3#..DCRE,DCRL |
89425-20390 |
— | ||
|
89425A
|
89425A
89425-42030
Sensor, Exhaust Gas Temperature, No.2
[11.2005 - 12.2008] ALA30..DCRE,DCRL |
89425-42030 |
— | ||
|
89467B
|
89467B
89467-42070
Sensor, Air Fuel Ratio
[11.2005 - 12.2008] ALA30..DCRE,DCRL |
89467-42070 |
— | ||
|
89467B
|
89467B
89467-42140
Sensor, Air Fuel Ratio
[12.2008 - 12.2012] ALA3#..6F..(DCRE,DCRL) |
89467-42140 |
— | ||
|
89491
|
89491
89491-20110
Sensor, Engine Oil Level
[11.2005 - 12.2008] ALA30 |
89491-20110 |
— | ||
|
89491
|
89491
89491-20130
Sensor, Engine Oil Level
[12.2008 - 04.2012] ALA3# |
89491-20130 |
— | ||
| replacement | |||||
|
89491
|
89491
89491-20131
Sensor, Engine Oil Level
[12.2008 - 04.2012] ALA3# |
89491-20131 |
— | ||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[11.2005 - 12.2008] ALA30 |
89493-60010 |
from US $2.24 |
||
|
8271542B80
|
8271542B80
82715-42B80
Bracket,wiring Harness Clamp
|
82715-42B80 |
— | ||
|
8272920040
|
8272920040
82729-20040 New Genuine Part |
82729-20040 |
US $2.91 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
|
9622110706
|
9622110706
96221-10706 Clamp, Brake Tube, No.8 |
96221-10706 |
US $5.28 |
||
