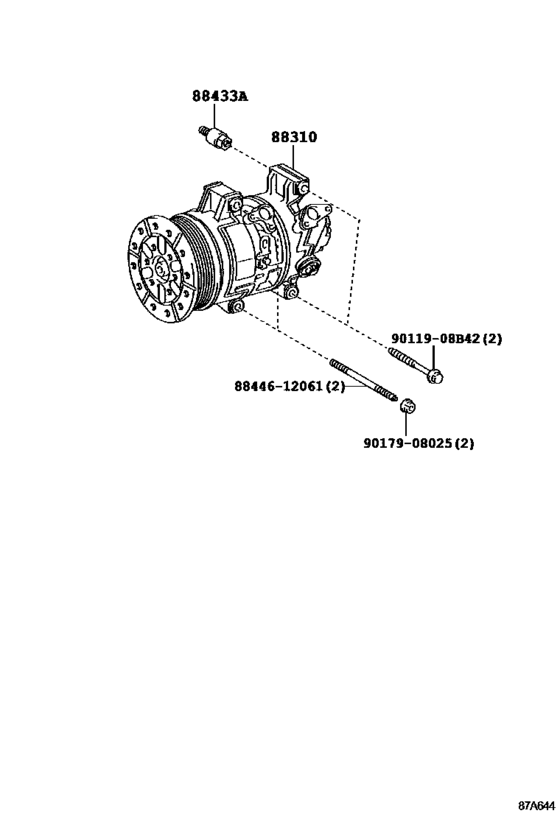

Heating & Air Conditioning - Compressor ([12.2008 - ] (0812- )ALA3#) Diagram Toyota RAV4/VANGUARD
- Year
- 2010 - 2012
- Sales region
- General
- Frame
- ALA35
- grade
- G
- ENGINE
- 2ADFTV
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 02.2010
- To
- 12.2012
- Gear Shift Type
- 6F
- Vehicle Model
- RAV4
- Driver's Position
- RHD
- Fuel Induction
- DCRE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-42250
Compressor Assy, W/pulley
[12.2008 - 12.2012] ALA3# |
88310-42250 |
— | ||
|
88433A
|
88433A
88433-20040
Bracket, Compressor Mounting, No.1
[12.2008 - 12.2012] ALA3# |
88433-20040 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8844612061
|
8844612061
88446-12061
Bolt, Compressor, No.1
|
88446-12061 |
— | ||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
