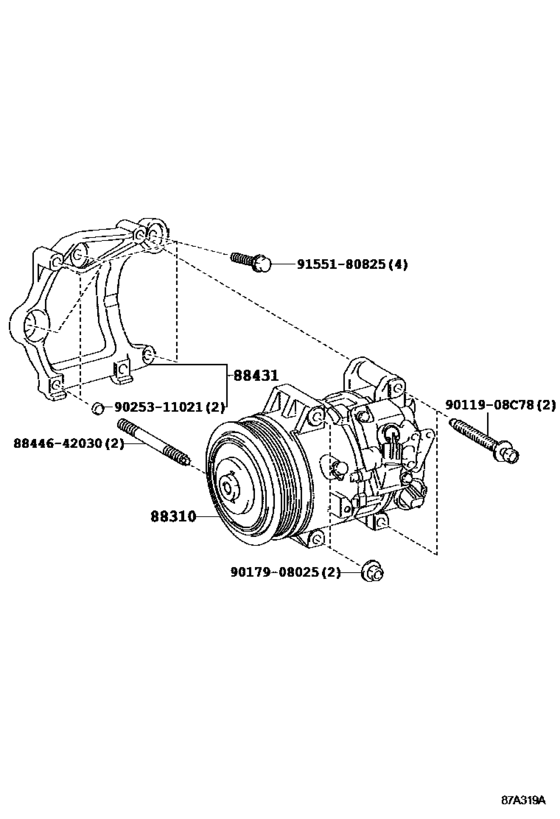

Heating & Air Conditioning - Compressor ([08.2008 - ] (0808- )ASA3#) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- ASA38
- grade
- SPO
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- DESTINATION
- USA
- Model
- RAV4 (JPP)
- From
- 08.2008
- To
- 12.2012
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-42330
Compressor Assy, W/pulley
[08.2008 - 01.2009] ASA3#..JPP |
88310-42330 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-42334 Compressor Assy, W/pulley[08.2008 - 01.2009] ASA3#..JPP |
88310-42334 |
US $1,455.89 |
||
|
88310
|
88310
88310-42331
Compressor Assy, W/pulley
[02.2009 - 08.2010] ASA3#..JPP |
88310-42331 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-42334 Compressor Assy, W/pulley[02.2009 - 08.2010] ASA3#..JPP |
88310-42334 |
US $1,455.89 |
||
|
88310
|
88310
88310-42332
Compressor Assy, W/pulley
[09.2010 - 10.2010] ASA3#..JPP |
88310-42332 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-42334 Compressor Assy, W/pulley[09.2010 - 10.2010] ASA3#..JPP |
88310-42334 |
US $1,455.89 |
||
|
88310
|
88310
88310-42333
Compressor Assy, W/pulley
[11.2010 - 09.2012] ASA3#..JPP |
88310-42333 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-42334 Compressor Assy, W/pulley[11.2010 - 09.2012] ASA3#..JPP |
88310-42334 |
US $1,455.89 |
||
|
88310
|
88310
88310-42334 Compressor Assy, W/pulley[10.2012 - 12.2012] ASA3#..JPP |
88310-42334 |
US $1,455.89 |
||
|
88431
|
88431
12502-36010 Bracket, Compressor Mounting, No.1COMPRESSOR MOUNTING, NO.1 [08.2008 - 12.2012] ASA3#..JPP |
12502-36010 |
US $75.71 |
||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
from US $2.10 |
||
|
8844642030
|
8844642030
88446-42030 Bolt, Cooler |
88446-42030 |
US $2.62 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.50 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
