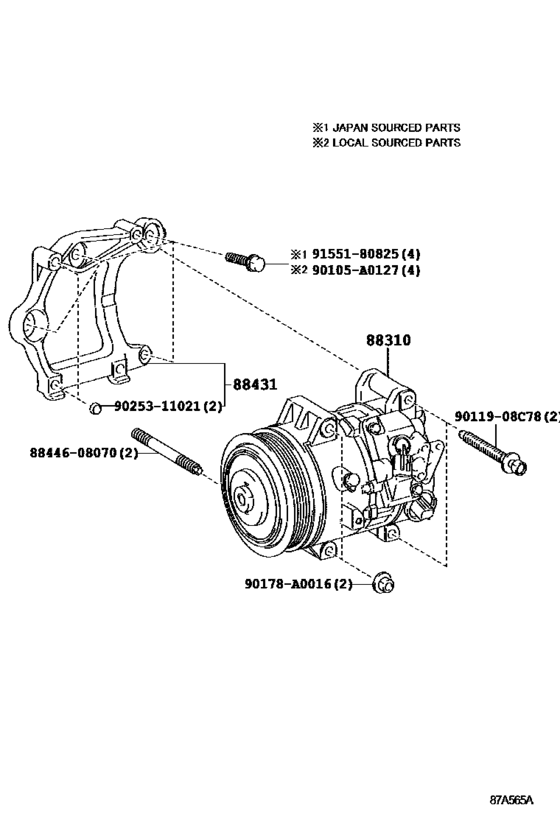

Heating & Air Conditioning - Compressor ([11.2008 - ] (0811- )ASA3#..NAP) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- ASA38
- grade
- LIMD
- ENGINE
- 2ARFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2008
- To
- 01.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-0R010
Compressor Assy, W/pulley
[11.2008 - 05.2009] ASA3#..NAP |
88310-0R010 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-0R014
Compressor Assy, W/pulley
[11.2008 - 05.2009] ASA3#..NAP |
88310-0R014 |
— | ||
|
88310
|
88310
88310-0R011
Compressor Assy, W/pulley
[06.2009 - 08.2010] ASA3#..NAP |
88310-0R011 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-0R014
Compressor Assy, W/pulley
[06.2009 - 08.2010] ASA3#..NAP |
88310-0R014 |
— | ||
|
88310
|
88310
88310-0R012
Compressor Assy, W/pulley
[09.2010 - 02.2011] ASA3#..NAP |
88310-0R012 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-0R014
Compressor Assy, W/pulley
[09.2010 - 02.2011] ASA3#..NAP |
88310-0R014 |
— | ||
|
88310
|
88310
88310-0R013
Compressor Assy, W/pulley
[03.2011 - 09.2012] ASA3#..NAP |
88310-0R013 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-0R014
Compressor Assy, W/pulley
[03.2011 - 09.2012] ASA3#..NAP |
88310-0R014 |
— | ||
|
88310
|
88310
88310-0R014
Compressor Assy, W/pulley
[10.2012 - 01.2013] ASA3#..NAP |
88310-0R014 |
— | ||
|
88431
|
88431
12502-0V040
Bracket, Compressor Mounting, No.1
[11.2012 - 01.2013] ASA3#..NAP (L) |
12502-0V040 |
— | ||
|
88431
|
88431
12502-36010 Bracket, Compressor Mounting, No.1COMPRESSOR MOUNTING, NO.1 [11.2008 - 11.2012] ASA3#..NAP |
12502-36010 |
US $75.71 |
||
|
90105A0127
|
90105A0127
90105-A0127
Bolt(For Cylinder Head Set Sub)
|
90105-A0127 |
— | ||
|
90178A0016
|
90178A0016
90178-A0016
New Genuine Part
|
90178-A0016 |
— | ||
|
9011908C78
|
9011908C78
90119-08C78 Bolt, No.2(For Alternator) |
90119-08C78 |
from US $2.10 |
||
|
8844608070
|
8844608070
88446-08070 Bolt, Idle Pulley |
88446-08070 |
US $2.18 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.50 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
