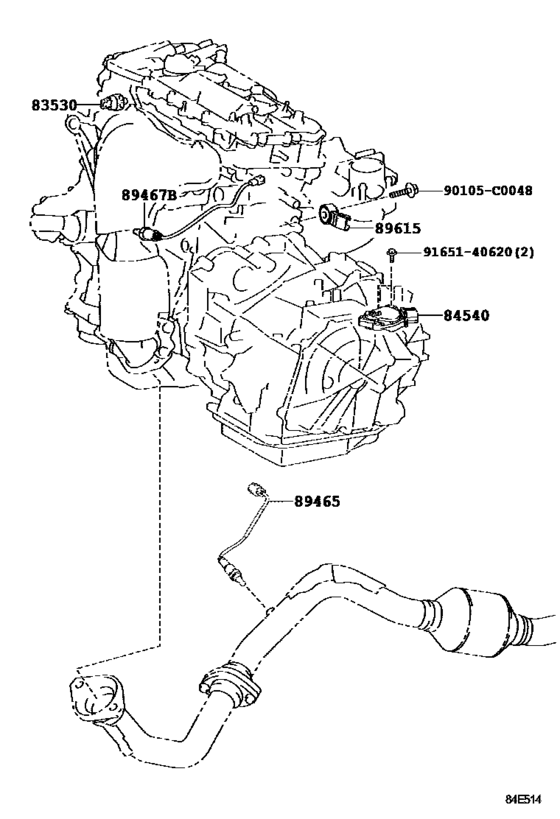

Switch & Relay & Computer ([08.2013 - ] ENGINE & TRANSMISSION (1308- )ASA44) Diagram Toyota RAV4/VANGUARD
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- ASA44
- grade
- M
- ENGINE
- 5ARFE
- TRANSMISSION
- ATM
- Model
- RAV4 (CHINA)
- From
- 08.2013
- Gear Shift Type
- 6FC
- Vehicle Model
- RAV4
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[08.2013 - 07.2016] ASA44,ZSA4#..HTWC DENSO |
83530-28020 |
from US $29.33 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2013 - 07.2016] ASA44,ZSA4#..HTWC DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[08.2013 - 07.2016] ASA44,ZSA4#..HTWC DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [08.2013 - 07.2016] ASA44,ZSA4#..HTWC YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-33010 Switch Assy, Neutral Start[08.2013 - 07.2016] ASA44 |
84540-33010 |
from US $112.48 |
||
|
89465
|
89465
89465-0R060
Sensor, Oxygen
[08.2013 - 07.2016] ASA44 |
89465-0R060 |
— | ||
|
89467B
|
89467B
89467-0R030
Sensor, Air Fuel Ratio
[07.2016 -] ASA44 |
89467-0R030 |
— | ||
|
89467B
|
89467B
89467-0R060
Sensor, Air Fuel Ratio
[08.2013 - 07.2016] ASA44 |
89467-0R060 |
— | ||
|
89615
|
89615
89615-20090 Sensor, Knock Control[08.2013 - 07.2016] ASA44,ZSA4#..HTWC |
89615-20090 |
from US $36.02 |
||
|
90105C0048
|
90105C0048
90105-C0048
New Genuine Part
|
90105-C0048 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
