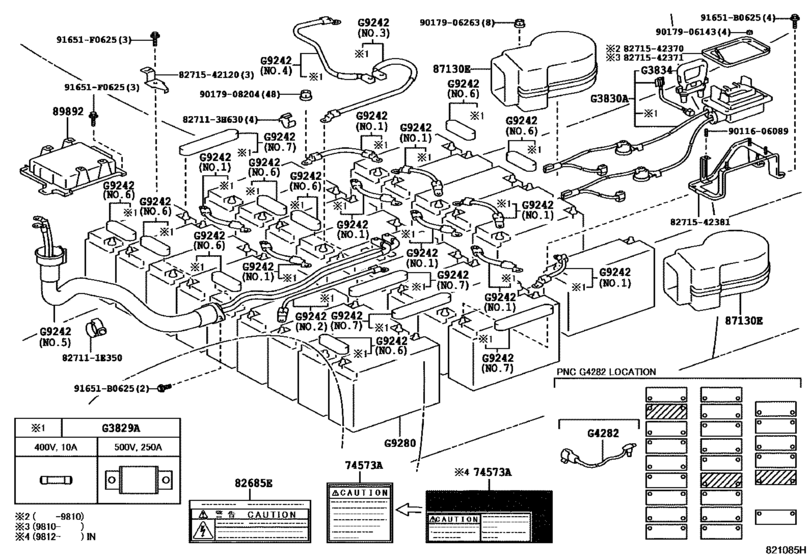

Battery & Battery Cable ([09.1997 - ] EV MAIN BATTERY (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74573A
|
74573A
74573-42050 Label, Electric Vehicle Battery Caution[09.1997 - 12.1998] BEA11 |
74573-42050 |
US $1.89 |
||
| replacement | |||||
|
74573A
|
74573A
74573-42051 Label, Electric Vehicle Battery Caution[09.1997 - 12.1998] BEA11 |
74573-42051 |
US $1.89 |
||
|
74573A
|
74573A
74573-42051 Label, Electric Vehicle Battery Caution[12.1998 - 11.1999] BEA11..CON |
74573-42051 |
US $1.89 |
||
|
82685E
|
82685E
82685-42020 Plate, Service Plug Caution[09.1997 - 10.1998] BEA11 |
82685-42020 |
US $3.93 |
||
| replacement | |||||
|
82685E
|
82685E
82685-42021 Plate, Service Plug Caution[09.1997 - 10.1998] BEA11 |
82685-42021 |
US $3.93 |
||
|
82685E
|
82685E
82685-42021 Plate, Service Plug Caution[10.1998 - 11.1999] BEA11 |
82685-42021 |
US $3.93 |
||
|
87130E
|
87130E
87130-42040
Blower Assy, Battery
[09.1997 - 11.1999] BEA11 |
87130-42040 |
— | ||
|
89892
|
89892
89892-42020 Computer, Battery Sensor[09.1997 - 03.1998] BEA11 |
89892-42020 |
US $3,669.12 |
||
| replacement | |||||
|
89892
|
89892
89892-42030 Computer, Battery Sensor[09.1997 - 03.1998] BEA11 |
89892-42030 |
US $3,669.12 |
||
|
89892
|
89892
89892-42030 Computer, Battery Sensor[03.1998 - 11.1999] BEA11 |
89892-42030 |
US $3,669.12 |
||
|
91651B0625
|
91651B0625
91651-B0625 New Genuine Part |
91651-B0625 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.28 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
US $2.88 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
827113H630
|
827113H630
82711-3H630 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3H630 |
US $2.24 |
||
|
8271542120
|
8271542120
82715-42120 Bracket,wiring Harness Clamp |
82715-42120 |
US $4.95 |
||
|
8271542370
|
8271542370
82715-42370 Bracket,wiring Harness Clamp |
82715-42370 |
US $16.02 |
||
|
8271542371
|
8271542371
82715-42371 Bracket,wiring Harness Clamp |
82715-42371 |
US $17.18 |
||
|
8271542381
|
8271542381
82715-42381 Bracket,wiring Harness Clamp |
82715-42381 |
US $33.49 |
||
|
9011606089
|
9011606089
90116-06089 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06089 |
US $0.87 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
|
9017906263
|
9017906263
90179-06263 Nut (For Rear Wiper Arm Setting) |
90179-06263 |
US $1.89 |
||
| replacement | |||||
|
9017906263
|
9017906263
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
G3829A
|
G3829A
G3829-42070 Fuse, Electric VehicleELECTRIC VEHICLE [09.1997 - 11.1999] BEA11 400V, 1A |
G3829-42070 |
US $4.80 |
||
|
G3829A
|
G3829A
G3829-42080 Fuse, Electric VehicleELECTRIC VEHICLE [09.1997 - 11.1999] BEA11 500V, 250A |
G3829-42080 |
US $182 |
||
|
G3830A
|
G3830A
G3830-42030 Plug Assy, Electric Vehicle Battery[09.1997 - 10.1998] BEA11 |
G3830-42030 |
US $1,000.27 |
||
| replacement | |||||
|
G3830A
|
G3830A
G3830-42031 Plug Assy, Electric Vehicle Battery[09.1997 - 10.1998] BEA11 |
G3830-42031 |
US $1,000.27 |
||
|
G3830A
|
G3830A
G3830-42031 Plug Assy, Electric Vehicle Battery[10.1998 - 11.1999] BEA11 |
G3830-42031 |
US $1,000.27 |
||
|
G3834
|
G3834
G3834-42010 Grip, Service Plug[09.1997 - 10.1998] BEA11 |
G3834-42010 |
US $152.88 |
||
| replacement | |||||
|
G3834
|
G3834
G3830-42031 Plug Assy, Electric Vehicle Battery[09.1997 - 10.1998] BEA11 |
G3830-42031 |
US $1,000.27 |
||
|
G3834
|
G3834
G3834-42020
Grip, Service Plug
[10.1998 - 11.1999] BEA11 |
G3834-42020 |
— | ||
|
G4282
|
G4282
G4282-42010 Sensor, Ev Battery Temperature, No.2[09.1997 - 03.1998] BEA11 |
G4282-42010 |
US $152.88 |
||
| replacement | |||||
|
G4282
|
G4282
G4282-42020 Sensor, Ev Battery Temperature, No.2[09.1997 - 03.1998] BEA11 |
G4282-42020 |
US $152.88 |
||
|
G4282
|
G4282
G4282-42011 Sensor, Ev Battery Temperature, No.2[03.1998 - 04.1999] BEA11 |
G4282-42011 |
US $152.88 |
||
| replacement | |||||
|
G4282
|
G4282
G4282-42020 Sensor, Ev Battery Temperature, No.2[03.1998 - 04.1999] BEA11 |
G4282-42020 |
US $152.88 |
||
|
G4282
|
G4282
G4282-42020 Sensor, Ev Battery Temperature, No.2[04.1999 - 11.1999] BEA11 |
G4282-42020 |
US $152.88 |
||
|
G9242
|
G9242
G9242-42160 Cable, Main BatteryMAIN BATTERY [09.1997 - 11.1999] BEA11 NO.1 |
G9242-42160 |
US $125.22 |
||
|
G9242
|
G9242
G9242-42190 Cable, Main BatteryMAIN BATTERY [09.1997 - 11.1999] BEA11 NO.2 |
G9242-42190 |
US $186.37 |
||
|
G9242
|
G9242
G9242-42200 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.3 |
G9242-42200 |
US $205.30 |
||
| replacement | |||||
|
G9242
|
G9242
G9242-42280 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.3 |
G9242-42280 |
US $205.30 |
||
|
G9242
|
G9242
G9242-42210 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.4 |
G9242-42210 |
US $186.37 |
||
| replacement | |||||
|
G9242
|
G9242
G9242-42290 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.4 |
G9242-42290 |
US $186.37 |
||
|
G9242
|
G9242
G9242-42220 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.5 |
G9242-42220 |
US $716.35 |
||
| replacement | |||||
|
G9242
|
G9242
G9242-42300 Cable, Main Battery[09.1997 - 11.1999] BEA11 NO.5 |
G9242-42300 |
US $716.35 |
||
|
G9242
|
G9242
G9242-42230 Cable, Main BatteryMAIN BATTERY [09.1997 - 11.1999] BEA11 NO.6 |
G9242-42230 |
US $99.01 |
||
|
G9242
|
G9242
G9242-42240 Cable, Main BatteryMAIN BATTERY [09.1997 - 11.1999] BEA11 NO.7 |
G9242-42240 |
US $106.29 |
||
|
G9280
|
G9280
G9280-42010 Battery Assy, Ev[09.1997 - 05.1998] BEA11 |
G9280-42010 |
US $1,456 |
||
| replacement | |||||
|
G9280
|
G9280
G9280-42012 Battery Assy, Ev[09.1997 - 05.1998] BEA11 |
G9280-42012 |
US $2,912 |
||
|
G9280
|
G9280
G9280-42011 Battery Assy, Ev[05.1998 - 08.1998] BEA11 |
G9280-42011 |
US $1,456 |
||
| replacement | |||||
|
G9280
|
G9280
G9280-42012 Battery Assy, Ev[05.1998 - 08.1998] BEA11 |
G9280-42012 |
US $2,912 |
||
|
G9280
|
G9280
G9280-42012 Battery Assy, Ev[08.1998 -] BEA11 |
G9280-42012 |
US $2,912 |
||
