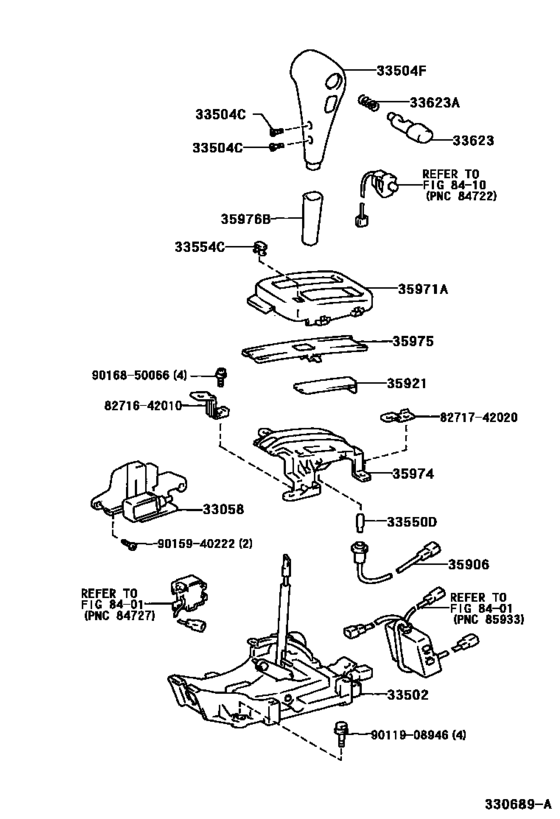

Shift Lever & Retainer ([09.1997 - ] (9709- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1997 - 1999
- Sales region
- U.S.A.
- Frame
- BEA11
- grade
- CON
- ENGINE
- EM
- Model
- RAV4 EV
- From
- 09.1997
- To
- 11.1999
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33058
|
33058
33058-12050 Bracket Sub-Assy, Shift Lock SolenoidSHIFT LOCK SOLENOID [09.1997 - 11.1999] BEA11 |
33058-12050 |
US $91.73 |
||
|
33502
|
33502
33502-42030 Plate Sub-Assy, Shift LeverSHIFT LEVER [09.1997 - 11.1999] BEA11 |
33502-42030 |
US $160.16 |
||
|
33504C
|
33504C
90159-40244
Screw (For Shift Lever Knob Setting)
[09.1997 - 11.1999] BEA11 |
90159-40244 |
— | ||
|
33504F
|
33504F
33542-12230-C0 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.1997 -] BEA11 BLACK,TRIM1# |
33542-12230-C0 |
US $72.80 |
||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[09.1997 - 11.1999] BEA11 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[09.1997 - 11.1999] BEA11 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33554C
|
33554C
33554-12080-C0 Cover, Shift Lock Release ButtonSHIFT LOCK RELEASE BUTTON [09.1997 -] BEA11 BLACK,TRIM1# |
33554-12080-C0 |
US $6.26 |
||
|
33623
|
33623
33623-12120-C0 Button, Shift Lever KnobSHIFT LEVER KNOB [09.1997 -] BEA11 BLACK,TRIM1# |
33623-12120-C0 |
from US $20.53 |
||
|
33623A
|
33623A
90501-07037 Spring, Compression (For Shift Lever Knob Button)[09.1997 - 11.1999] BEA11 |
90501-07037 |
US $2.04 |
||
|
35906
|
35906
35906-12130
Wire Sub-Assy, Indicator Lamp
[09.1997 - 11.1999] BEA11 |
35906-12130 |
— | ||
| replacement | |||||
|
35906
|
35906
35906-12140 Wire Sub-Assy, Indicator Lamp[09.1997 - 11.1999] BEA11 |
35906-12140 |
US $15.74 |
||
|
35921
|
35921
35921-42020 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [09.1997 - 11.1999] BEA11 |
35921-42020 |
US $74.26 |
||
|
35971A
|
35971A
35971-12330-C0 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [09.1997 -] BEA11 BLACK,TRIM1# |
35971-12330-C0 |
US $29.41 |
||
|
35974
|
35974
35974-12161 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [09.1997 - 11.1999] BEA11 |
35974-12161 |
US $29.41 |
||
|
35975
|
35975
35975-12200-C0 Cover, Slide (For Position Indicator)[09.1997 -] BEA11 BLACK,TRIM1# |
35975-12200-C0 |
US $25.33 |
||
|
35976B
|
35976B
35976-12080-C0 Cover, Slide, No.2 (For Position Indicator)[09.1997 -] BEA11 BLACK,TRIM1# |
35976-12080-C0 |
from US $14.57 |
||
|
8271642010
|
8271642010
82716-42010 Bracket, Wiring Harness Clamp, Lh |
82716-42010 |
US $3.20 |
||
|
8271742020
|
8271742020
82717-42020 New Genuine Part |
82717-42020 |
US $3.20 |
||
|
9011908946
|
9011908946
90119-08946
New Genuine Part
|
90119-08946 |
— | ||
| replacement | |||||
|
9011908946
|
9011908946
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
|
9015940222
|
9015940222
90159-40222 New Genuine Part |
90159-40222 |
US $1.60 |
||
|
9016850066
|
9016850066
90168-50066 New Genuine Part |
90168-50066 |
US $1.46 |
||
