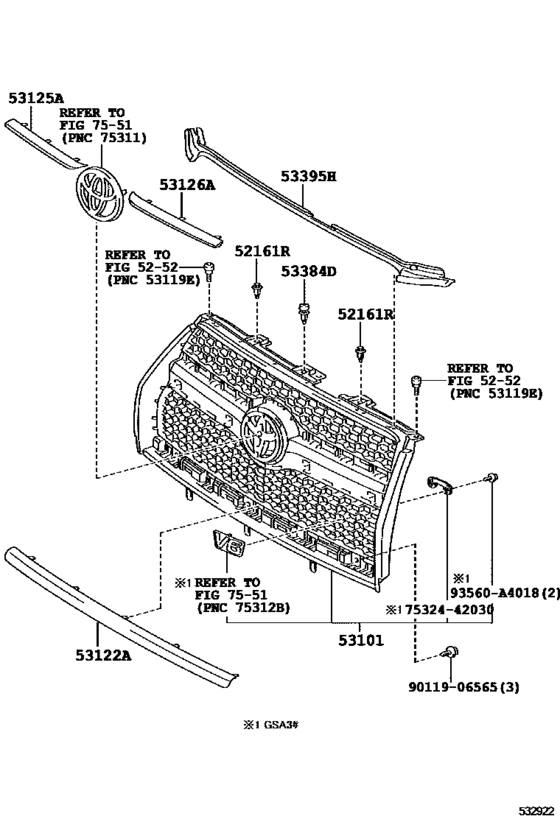

Radiator Grille ([11.2008 - ] (0811- )NAP..LIMD) Diagram Toyota RAV4/VANGUARD
- Year
- 2008 - 2013
- Sales region
- U.S.A.
- Frame
- GSA33
- grade
- LIMD
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- Model
- RAV4 (NAP)
- From
- 11.2008
- To
- 01.2013
- Gear Shift Type
- 5FC
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161R
|
52161R
52161-02020 Clip[11.2008 -] ASA3#,GSA3#..NAP |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161R
|
52161R
52161-16010 Clip[11.2008 -] ASA3#,GSA3#..NAP |
52161-16010 |
from US $1.68 |
||
|
53101
|
53101
53101-0R060
Grille Sub-Assy, Radiator
[11.2008 - 01.2013] GSA3#..NAP..LIMD |
53101-0R060 |
— | ||
|
53122A
|
53122A
53122-42030 Moulding, Radiator Grille, Lower[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53122-42030 |
from US $38.10 |
||
|
53125A
|
53125A
53125-42040 Moulding, Radiator Grille, Center Rh[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53125-42040 |
from US $16.31 |
||
|
53126A
|
53126A
53126-42030 Moulding, Radiator Grille, Center Lh[11.2008 -] ASA3#,GSA3#..NAP..LIMD |
53126-42030 |
US $16.31 |
||
|
53384D
|
53384D
53384-0R010
Cushion, Hood, Center
[11.2008 -] ASA3#,GSA3#..NAP |
53384-0R010 |
— | ||
|
53395H
|
53395H
53395-0R010
Seal, Hood To Radiator Grille
[11.2008 - 01.2009] ASA3#,GSA3#..NAP |
53395-0R010 |
— | ||
| replacement | |||||
|
53395H
|
53395H
53395-0R011
Seal, Hood To Front End Panel
[11.2008 - 01.2009] ASA3#,GSA3#..NAP |
53395-0R011 |
— | ||
|
53395H
|
53395H
53395-0R011
Seal, Hood To Front End Panel
[02.2009 -] ASA3#,GSA3#..NAP |
53395-0R011 |
— | ||
|
93560A4018
|
93560A4018
93560-A4018 SCREW TAPPING |
93560-A4018 |
US $1.60 |
||
|
7532442030
|
7532442030
75324-42030
Retainer, Front Bumper Emblem
|
75324-42030 |
— | ||
|
9011906565
|
9011906565
90119-06565 BOLT WWASHER |
90119-06565 |
US $1.76 |
||
