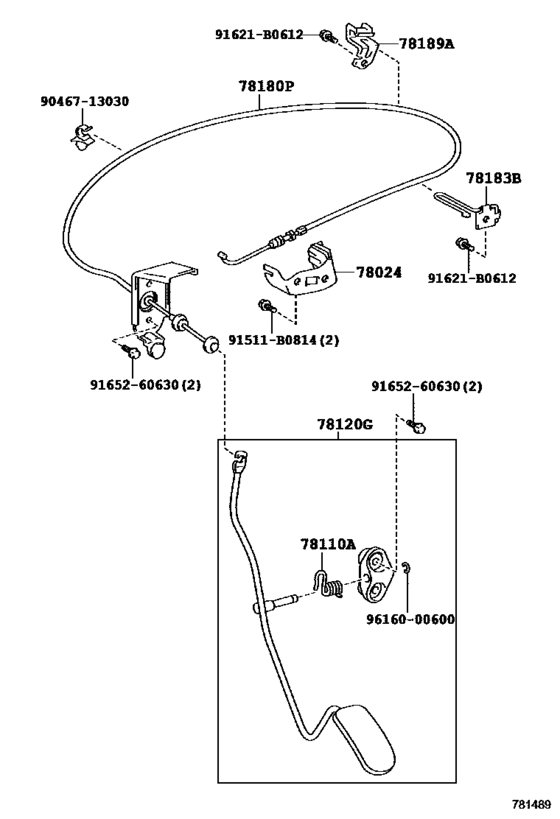

Accelerator Link ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- U.S.A.
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20140 Bracket Sub-Assy, Accelerator Control Cable[11.1995 - 09.1997] SXA1# |
78024-20140 |
US $15.14 |
||
|
78024
|
78024
78024-44020
Bracket Sub-Assy, Accelerator Control Cable
[09.1997 -] SXA1# |
78024-44020 |
— | ||
|
78110A
|
78110A
90959-03049 Spring (For Accelerator Pedal Rod)[11.1995 -] SXA1#..ATM |
90959-03049 |
US $3.35 |
||
|
78120G
|
78120G
78120-42050
Rod Assy, Accelerator Pedal
[11.1995 -] SXA1#..ATM |
78120-42050 |
— | ||
|
78180P
|
78180P
78180-42020
Cable Assy, Accelerator Control
[11.1995 - 09.1997] SXA1# |
78180-42020 |
— | ||
|
78180P
|
78180P
78180-42030 Cable Assy, Accelerator ControlACCELERATOR CONTROL [11.1995 - 08.1996] SXA1# W(CRUISE CONTROL) |
78180-42030 |
US $55.18 |
||
| replacement | |||||
|
78180P
|
78180P
78180-42031 Cable Assy, Accelerator ControlACCELERATOR CONTROL [11.1995 - 08.1996] SXA1# W(CRUISE CONTROL) |
78180-42031 |
US $55.47 |
||
|
78180P
|
78180P
78180-42031 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1996 - 09.1997] SXA1# W(CRUISE CONTROL) |
78180-42031 |
US $55.47 |
||
|
78180P
|
78180P
78180-42060
Cable Assy, Accelerator Control
[09.1997 -] SXA1# |
78180-42060 |
— | ||
|
78180P
|
78180P
78180-42070
Cable Assy, Accelerator Control
[09.1997 -] SXA1# W(CRUISE CONTROL) |
78180-42070 |
— | ||
|
78183B
|
78183B
78183-42011 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [11.1995 - 09.1997] SXA1# |
78183-42011 |
US $4.66 |
||
|
78183B
|
78183B
78186-44010 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE, NO.1 [09.1997 -] SXA1# |
78186-44010 |
US $5.82 |
||
|
78189A
|
78189A
78189-20150 Support, Accelerator Control Cable, No.2ACCELERATOR CONTROL CABLE, NO.2 [11.1995 -] SXA1# |
78189-20150 |
US $5.10 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9046713030
|
9046713030
90467-13030 CLIP |
90467-13030 |
from US $1.42 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
