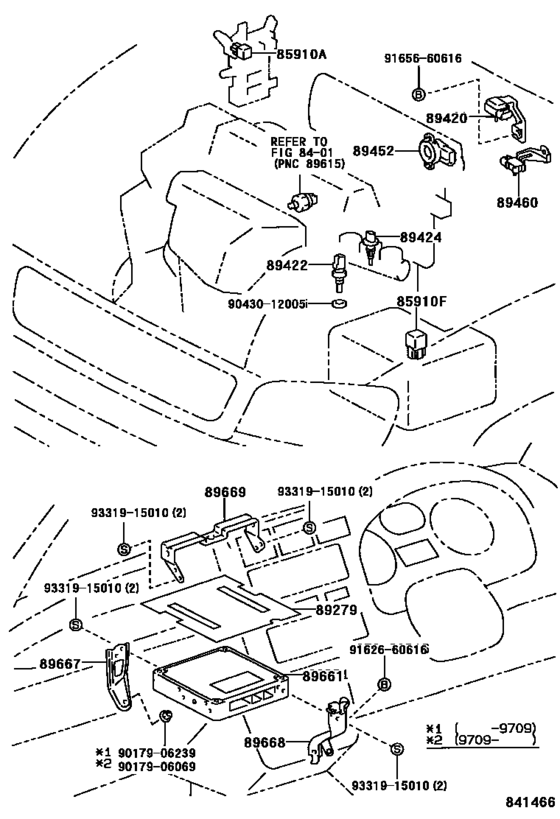

Electronic Fuel Injection System ([11.1995 - ] (9511- )) Diagram Toyota RAV4/VANGUARD
- Year
- 1995 - 2000
- Sales region
- Europe
- Frame
- SXA11
- body
- HT
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- RAV4
- From
- 11.1995
- To
- 08.2000
- No.of Doors
- 4D
- Vehicle Model
- RAV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02009 Relay Assy[11.1995 - 09.1997] SXA1# |
90987-02009 |
from US $33.87 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[09.1997 -] SXA1# |
90987-02012 |
from US $27.11 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[11.1995 -] SXA1# |
90987-02009 |
from US $33.87 |
||
|
89279
|
89279
89279-42010 Cover, Engine Control Computer[11.1995 -] SXA1# |
89279-42010 |
US $13.40 |
||
|
89420
|
89420
89420-0W030
Sensor Assy, Vacuum
[06.1996 - 08.1996] SXA1# DELCO |
89420-0W030 |
— | ||
|
89420
|
89420
89420-0W050
Sensor Assy, Vacuum
[08.1996 - 09.1997] SXA1# DELCO |
89420-0W050 |
— | ||
|
89420
|
89420
89420-42010
Sensor Assy, Vacuum
[11.1995 - 06.1996] SXA1# |
89420-42010 |
— | ||
| replacement | |||||
|
89420
|
89420
89420-0W030
Sensor Assy, Vacuum
[11.1995 - 06.1996] SXA1# |
89420-0W030 |
— | ||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[11.1995 -] SXA1# |
89422-35010 |
from US $40.58 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[11.1995 -] SXA1# |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[09.1997 -] SXA1# |
89452-20130 |
from US $66.88 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[11.1995 - 09.1997] SXA1# |
89452-22090 |
from US $138.98 |
||
|
89460
|
89460
89460-42010 Sensor Assy, Vapor PressureVAPOR PRESSURE [11.1995 - 08.1996] SXA1# |
89460-42010 |
US $189.28 |
||
|
89460
|
89460
89460-42020 Sensor Assy, Vapor PressureVAPOR PRESSURE [08.1996 - 09.1997] SXA1# |
89460-42020 |
US $187.82 |
||
|
89661
|
89661
89661-42140 Computer, Engine ControlENGINE CONTROL [11.1995 - 08.1996] SXA11..ATM |
89661-42140 |
US $1,703.52 |
||
| replacement | |||||
|
89661
|
89661
89661-42262
Computer, Engine Control
[11.1995 - 08.1996] SXA11..ATM |
89661-42262 |
— | ||
|
89661
|
89661
89661-42260
Computer, Engine Control
[08.1996 - 12.1996] SXA11..ATM |
89661-42260 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42262
Computer, Engine Control
[08.1996 - 12.1996] SXA11..ATM |
89661-42262 |
— | ||
|
89661
|
89661
89661-42261
Computer, Engine Control
[12.1996 - 09.1997] SXA11..ATM |
89661-42261 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42262
Computer, Engine Control
[12.1996 - 09.1997] SXA11..ATM |
89661-42262 |
— | ||
|
89661
|
89661
89661-42390
Computer, Engine Control
[09.1997 - 03.1998] SXA10,11..ATM |
89661-42390 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42391
Computer, Engine Control
[09.1997 - 03.1998] SXA10,11..ATM |
89661-42391 |
— | ||
|
89661
|
89661
89661-42391
Computer, Engine Control
[03.1998 - 08.1998] SXA10,11..ATM |
89661-42391 |
— | ||
|
89661
|
89661
89661-42430
Computer, Engine Control
[09.1997 - 03.1998] SXA10,11..ATM CALIFORNIA SPEC |
89661-42430 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42432
Computer, Engine Control
[09.1997 - 03.1998] SXA10,11..ATM CALIFORNIA SPEC |
89661-42432 |
— | ||
|
89661
|
89661
89661-42431
Computer, Engine Control
[03.1998 - 08.1998] SXA10,11..ATM CALIFORNIA SPEC |
89661-42431 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42432
Computer, Engine Control
[03.1998 - 08.1998] SXA10,11..ATM CALIFORNIA SPEC |
89661-42432 |
— | ||
|
89661
|
89661
89661-42440
Computer, Engine Control
[05.1997 - 09.1997] SXA11..ATM TAIWAN SPEC |
89661-42440 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42441
Computer, Engine Control
[05.1997 - 09.1997] SXA11..ATM TAIWAN SPEC |
89661-42441 |
— | ||
|
89661
|
89661
89661-42450
Computer, Engine Control
[09.1997 - 03.1998] SXA11..ATM TAIWAN SPEC |
89661-42450 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42451
Computer, Engine Control
[09.1997 - 03.1998] SXA11..ATM TAIWAN SPEC |
89661-42451 |
— | ||
|
89661
|
89661
89661-42451
Computer, Engine Control
[03.1998 - 08.1998] SXA11..ATM TAIWAN SPEC |
89661-42451 |
— | ||
|
89661
|
89661
89661-42510
Computer, Engine Control
[08.1998 - 08.1999] SXA10,11..ATM |
89661-42510 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42512
Computer, Engine Control
[08.1998 - 08.1999] SXA10,11..ATM |
89661-42512 |
— | ||
|
89661
|
89661
89661-42511
Computer, Engine Control
[08.1999 - 10.1999] SXA10,11..ATM |
89661-42511 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42512
Computer, Engine Control
[08.1999 - 10.1999] SXA10,11..ATM |
89661-42512 |
— | ||
|
89661
|
89661
89661-42512
Computer, Engine Control
[10.1999 -] SXA10,11..ATM |
89661-42512 |
— | ||
|
89661
|
89661
89661-42550
Computer, Engine Control
[08.1998 - 08.1999] SXA10,11..ATM CALIFORNIA SPEC |
89661-42550 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42553
Computer, Engine Control
[08.1998 - 08.1999] SXA10,11..ATM CALIFORNIA SPEC |
89661-42553 |
— | ||
|
89661
|
89661
89661-42551
Computer, Engine Control
[08.1999 - 11.1999] SXA10,11..ATM CALIFORNIA SPEC |
89661-42551 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42553
Computer, Engine Control
[08.1999 - 11.1999] SXA10,11..ATM CALIFORNIA SPEC |
89661-42553 |
— | ||
|
89661
|
89661
89661-42552
Computer, Engine Control
[11.1999 -] SXA10,11..ATM CALIFORNIA SPEC |
89661-42552 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42553
Computer, Engine Control
[11.1999 -] SXA10,11..ATM CALIFORNIA SPEC |
89661-42553 |
— | ||
|
89661
|
89661
89661-42600
Computer, Engine Control
[08.1998 - 08.1999] SXA11..ATM TAIWAN SPEC |
89661-42600 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42602
Computer, Engine Control
[08.1998 - 08.1999] SXA11..ATM TAIWAN SPEC |
89661-42602 |
— | ||
|
89661
|
89661
89661-42601
Computer, Engine Control
[08.1999 - 10.1999] SXA11..ATM TAIWAN SPEC |
89661-42601 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-42602
Computer, Engine Control
[08.1999 - 10.1999] SXA11..ATM TAIWAN SPEC |
89661-42602 |
— | ||
|
89661
|
89661
89661-42602
Computer, Engine Control
[10.1999 -] SXA11..ATM TAIWAN SPEC |
89661-42602 |
— | ||
|
89667
|
89667
89667-42010 Bracket, Engine Control Computer[11.1995 - 09.1997] SXA1# |
89667-42010 |
US $9.90 |
||
|
89667
|
89667
89667-42020 Bracket, Engine Control Computer[09.1997 -] SXA1# |
89667-42020 |
US $9.90 |
||
|
89668
|
89668
89668-42010 Bracket, Engine Control Computer, No.2[11.1995 -] SXA1# |
89668-42010 |
US $14.27 |
||
|
89669
|
89669
89669-42010 Bracket, Engine Control Computer, No.3[11.1995 - 09.1997] SXA1# |
89669-42010 |
US $12.38 |
||
|
89669
|
89669
89669-42020 Bracket, Engine Control Computer, No.3[09.1997 -] SXA1# |
89669-42020 |
US $9.03 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9162660616
|
9162660616
91626-60616
New Genuine Part
|
91626-60616 |
— | ||
| replacement | |||||
|
9162660616
|
9162660616
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165660616
|
9165660616
91656-60616
BOLT
|
91656-60616 |
— | ||
| replacement | |||||
|
9165660616
|
9165660616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
