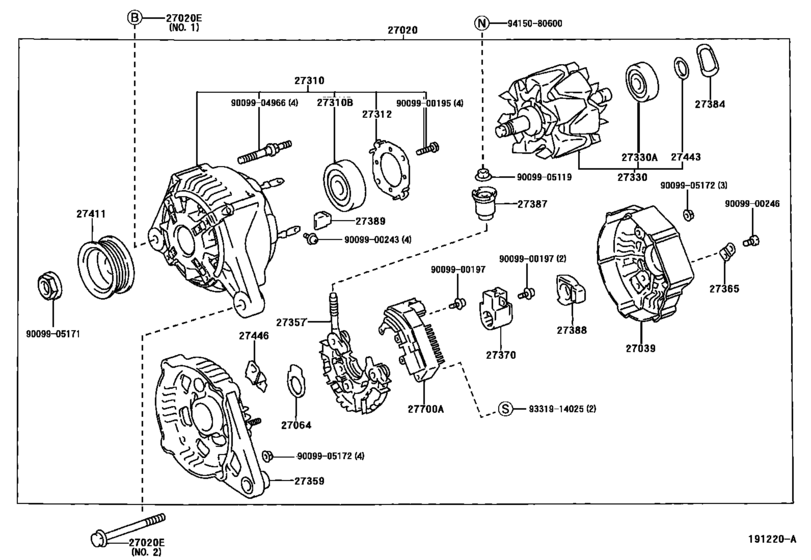

Alternator ([05.2000 - 07.2003] 12V 90A (0005-0307)1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-22130 Alternator Assy[05.2000 - 07.2003] 1ZZFE..ZCA2# 12V 90A |
27060-22130 |
US $1,732.64 |
||
|
27020E
|
27020E
90105-10075 Bolt(For Alternator)[05.2000 - 07.2003] 1ZZFE..ZCA2# NO.2 |
90105-10075 |
from US $1.56 |
||
|
27020E
|
27020E
91511-80830 Bolt(For Alternator)[05.2000 - 07.2003] 1ZZFE..ZCA2# NO.1 |
91511-80830 |
US $3.20 |
||
|
27039
|
27039
27039-22050
Cover, Alternator Rear End
[01.2001 - 07.2003] 1ZZFE..ZCA2# |
27039-22050 |
— | ||
|
27039
|
27039
27039-46190
Cover, Alternator Rear End
[05.2000 - 01.2001] 1ZZFE..ZCA2# |
27039-46190 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-22050
Cover, Alternator Rear End
[05.2000 - 01.2001] 1ZZFE..ZCA2# |
27039-22050 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27064-42010 |
from US $2.10 |
||
|
27310
|
27310
27310-22060
Frame Assy, Drive End, Alternator
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
27310-22060 |
— | ||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
90099-10219 |
from US $16.57 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27312-42010 |
— | ||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2#..MTM |
27330-74550 |
US $176.47 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-22070
Holder, Alternator, W/rectifier
[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2#..MTM |
27357-22070 |
— | ||
|
27359
|
27359
27359-22040
Frame, Alternator Rectifier End
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
27359-22040 |
— | ||
|
27365
|
27365
27365-55080
Plate, Terminal
[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27365-55080 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42021 Insulator, Terminal[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27387-42021 |
US $2.42 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27388-42010 |
US $10.66 |
||
|
27389
|
27389
27389-42010
Insulator, Terminal
[05.2000 - 07.2003] 1AZFE,1ZZFE..ACA2#,ZCA2# |
27389-42010 |
— | ||
|
27411
|
27411
27411-50050 Pulley, Alternator[05.2000 - 07.2003] 1ZZFE..ZCA2# |
27411-50050 |
US $21.10 |
||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-22040
Clip, Alternator Cord
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
27446-22040 |
— | ||
|
27700A
|
27700A
27700-46060 Regulator Assy, Generator[05.2000 - 07.2003] 1AZFE..ACA2#..ATM..EUR;1AZFE,1ZZFE..ACA2#,ZCA2#..MTM |
27700-46060 |
US $279.55 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
