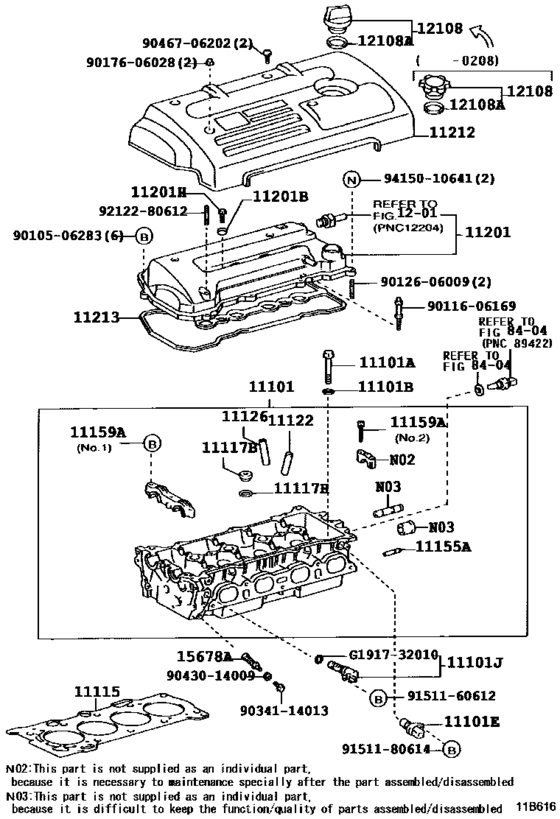

Cylinder Head ([05.2000 - ] (0005- )1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-22051
Head Sub-Assy, Cylinder
[05.2000 - 06.2002] 1ZZFE..ZCA2# |
11101-22051 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-22052 Head Sub-Assy, Cylinder[05.2000 - 06.2002] 1ZZFE..ZCA2# |
11101-22052 |
US $1,790.88 |
||
|
11101
|
11101
11101-22052 Head Sub-Assy, Cylinder[06.2002 - 07.2003] 1ZZFE..ZCA2# |
11101-22052 |
US $1,790.88 |
||
|
11101A
|
11101A
90910-02134
Bolt(For Cylinder Head Set)
[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90910-02134 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02152 Bolt(For Cylinder Head Set)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90910-02152 |
from US $6.12 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90201-10344 |
from US $1.03 |
||
|
11101E
|
11101E
90919-05026 Sensor, Position[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90919-05026 |
from US $75.48 |
||
|
11101J
|
11101J
15330-22010
Valve Assy, Camshaft Timing Oil Control
[05.2000 - 03.2001] 1ZZFE..ZCA2# |
15330-22010 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-22030
Valve Assy, Camshaft Timing Oil Control
[05.2000 - 03.2001] 1ZZFE..ZCA2# |
15330-22030 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-22050 Valve Assy, Camshaft Timing Oil Control[05.2000 - 03.2001] 1ZZFE..ZCA2# |
15330-22050 |
from US $74.80 |
||
|
11101J
|
11101J
15330-22030
Valve Assy, Camshaft Timing Oil Control
[03.2001 - 07.2003] 1ZZFE..ZCA2# |
15330-22030 |
— | ||
| replacement | |||||
|
11101J
|
11101J
15330-22050 Valve Assy, Camshaft Timing Oil Control[03.2001 - 07.2003] 1ZZFE..ZCA2# |
15330-22050 |
from US $74.80 |
||
|
11115
|
11115
11115-22040
Gasket, Cylinder Head
[05.2000 - 07.2002] 1ZZFE..ZCA2# |
11115-22040 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-22050 Gasket, Cylinder Head[05.2000 - 07.2002] 1ZZFE..ZCA2# |
11115-22050 |
from US $48.63 |
||
|
11115
|
11115
11115-22041
Gasket, Cylinder Head
[07.2002 - 02.2003] 1ZZFE..ZCA2# |
11115-22041 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-22050 Gasket, Cylinder Head[07.2002 - 02.2003] 1ZZFE..ZCA2# |
11115-22050 |
from US $48.63 |
||
|
11115
|
11115
11115-22050 Gasket, Cylinder Head[02.2003 - 07.2003] 1ZZFE..ZCA2# |
11115-22050 |
from US $48.63 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90341-20002 |
from US $2.88 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90430-20004 |
from US $0.99 |
||
|
11122
|
11122
11122-20020
Bush, Intake Valve Guide
[10.2001 - 07.2003] 1ZZFE..ZCA2# STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [10.2001 - 07.2003] 1ZZFE..ZCA2# STD |
11122-22040 |
from US $8.46 |
||
|
11122
|
11122
11122-22030 Bush, Intake Valve Guide[05.2000 - 10.2001] 1ZZFE..ZCA2# STD |
11122-22030 |
US $10.19 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[10.2001 - 07.2003] 1ZZFE..ZCA2# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11122
|
11122
11123-22030
Bush, Intake Valve Guide
[05.2000 - 10.2001] 1ZZFE..ZCA2# O/S 0.05 |
11123-22030 |
— | ||
| replacement | |||||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[05.2000 - 10.2001] 1ZZFE..ZCA2# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11122-20020
Bush, Intake Valve Guide
[10.2001 - 07.2003] 1ZZFE..ZCA2# STD |
11122-20020 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [10.2001 - 07.2003] 1ZZFE..ZCA2# STD |
11122-22040 |
from US $8.46 |
||
|
11126
|
11126
11122-22030 Bush, Intake Valve Guide[05.2000 - 10.2001] 1ZZFE..ZCA2# STD |
11122-22030 |
US $10.19 |
||
|
11126
|
11126
11123-20020 Bush, Intake Valve Guide[10.2001 - 07.2003] 1ZZFE..ZCA2# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11123-22030
Bush, Intake Valve Guide
[05.2000 - 10.2001] 1ZZFE..ZCA2# O/S 0.05 |
11123-22030 |
— | ||
| replacement | |||||
|
11126
|
11126
11123-20020 Bush, Intake Valve Guide[05.2000 - 10.2001] 1ZZFE..ZCA2# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11155A
|
11155A
90250-06001 Pin, Straight[07.2003 -] 1ZZFE..ZCA2# |
90250-06001 |
US $1.60 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[05.2000 - 07.2003] 1ZZFE..ZCA2# NO.2 |
90109-06080 |
from US $1.19 |
||
|
11159A
|
11159A
90119-08A29 Bolt(For Head To Camshaft Bearing Cap)[05.2000 - 07.2003] 1ZZFE..ZCA2# NO.1 |
90119-08A29 |
US $1.60 |
||
|
11201
|
11201
11201-22060 Cover Sub-Assy, Cylinder Head[05.2000 - 07.2003] 1ZZFE..ZCA2# |
11201-22060 |
from US $288 |
||
|
11201B
|
11201B
90210-06013 Washer, Seal(For Cylinder Head Cover)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90210-06013 |
from US $0.96 |
||
|
11201H
|
11201H
90105-06202 Bolt(For Cylinder Head Cover)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90105-06202 |
from US $0.88 |
||
|
11212
|
11212
11212-22070
Cover, Cylinder Head, No.2
[05.2000 - 08.2002] 1ZZFE..ZCA2# |
11212-22070 |
— | ||
| replacement | |||||
|
11212
|
11212
11212-22903
Cover, Cylinder Head, No.2
[05.2000 - 08.2002] 1ZZFE..ZCA2# |
11212-22903 |
— | ||
|
11212
|
11212
11212-22130 Cover, Cylinder Head, No.2[08.2002 - 07.2003] 1ZZFE..ZCA2# |
11212-22130 |
US $139.12 |
||
|
11213
|
11213
11213-22050 Gasket, Cylinder Head Cover[05.2000 - 07.2003] 1ZZFE..ZCA2# |
11213-22050 |
from US $21.04 |
||
|
12108
|
12108
12180-21010 Cap Sub-Assy, Oil Filler[08.2002 - 07.2003] 1ZZFE..ZCA2# |
12180-21010 |
from US $12.52 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[05.2000 - 08.2002] 1ZZFE..ZCA2# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90430-37140 |
from US $1.25 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15678-21010 |
from US $5.34 |
||
|
9010506283
|
9010506283
90105-06283 BOLT FLANGE |
90105-06283 |
from US $0.98 |
||
|
9011606169
|
9011606169
90116-06169 BOLT STUD |
90116-06169 |
US $2.80 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.08 |
||
|
9017606028
|
9017606028
90176-06028 Nut, Cap(For Cylinder Head Cover) |
90176-06028 |
from US $1.09 |
||
|
9034114013
|
9034114013
90341-14013 Plug, W/head Taper Screw, No.1 |
90341-14013 |
from US $1.92 |
||
|
9043014009
|
9043014009
90430-14009 Gasket(For Cylinder Head Screw Plug) |
90430-14009 |
from US $1.27 |
||
|
9046706202
|
9046706202
90467-06202 CLIP |
90467-06202 |
from US $0.96 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.12 |
||
|
9212280612
|
9212280612
92122-80612 BOLTSTUD |
92122-80612 |
from US $0.96 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $0.96 |
||
|
G191732010
|
G191732010
G1917-32010 RING O SOLENOID |
G1917-32010 |
from US $2.88 |
||
