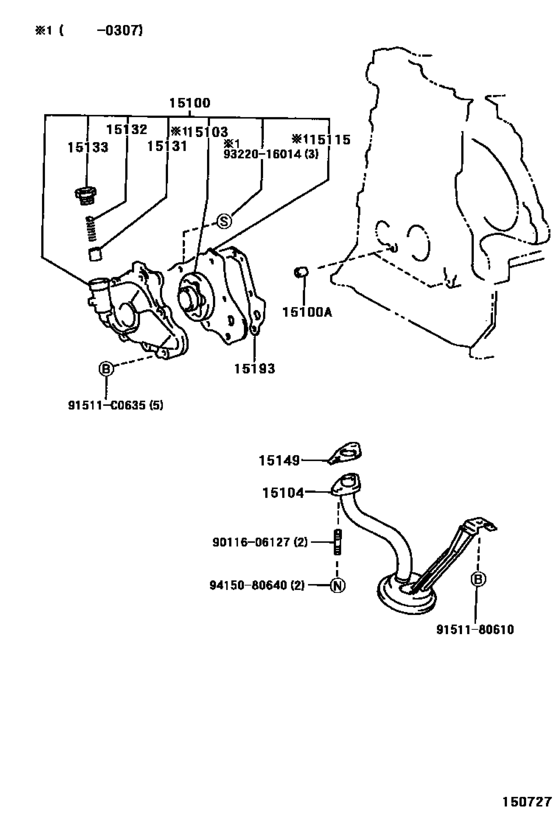

Engine Oil Pump ([05.2000 - ] (0005- )1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-22040 Pump Assy, Oil[05.2000 - 06.2002] 1ZZFE..ZCA2# |
15100-22040 |
US $244.61 |
||
| replacement | |||||
|
15100
|
15100
15100-22041 Pump Assy, Oil[05.2000 - 06.2002] 1ZZFE..ZCA2# |
15100-22041 |
from US $89.06 |
||
|
15100
|
15100
15100-22041 Pump Assy, Oil[06.2002 - 07.2003] 1ZZFE..ZCA2# |
15100-22041 |
from US $89.06 |
||
|
15100A
|
15100A
90253-09003 Pin, Ring(For Oil Pump Set)[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90253-09003 |
US $0.33 |
||
|
15103
|
15103
15103-22040 Gear Set, Oil Pump[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15103-22040 |
US $80.08 |
||
|
15104
|
15104
15104-22022 Strainer Sub-Assy, Oil[05.2000 - 04.2002] 1ZZFE..ZCA2# |
15104-22022 |
US $67.85 |
||
| replacement | |||||
|
15104
|
15104
15104-22023 Strainer Sub-Assy, Oil[05.2000 - 04.2002] 1ZZFE..ZCA2# |
15104-22023 |
from US $41.03 |
||
|
15104
|
15104
15104-22023 Strainer Sub-Assy, Oil[04.2002 - 07.2003] 1ZZFE..ZCA2# |
15104-22023 |
from US $41.03 |
||
|
15115
|
15115
15115-22040 Cover, Oil Pump[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15115-22040 |
US $43.53 |
||
|
15131
|
15131
15131-24010 Valve, Oil Pump Relief[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15131-24010 |
from US $4.19 |
||
|
15132
|
15132
15132-22040 Spring, Oil Pump Relief Valve[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15132-22040 |
US $3.06 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15133-20010 |
US $6.56 |
||
|
15149
|
15149
15149-22010 Gasket, Oil Strainer Flange[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15149-22010 |
US $3.84 |
||
|
15193
|
15193
15197-22010 Gasket, Oil Pump[05.2000 - 07.2003] 1ZZFE..ZCA2# |
15197-22010 |
from US $5.30 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT, FLANGE |
91511-C0635 |
from US $1.60 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9151180610
|
9151180610
91511-80610 New Genuine Part |
91511-80610 |
US $0.73 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
from US $0.78 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $1.93 |
||
