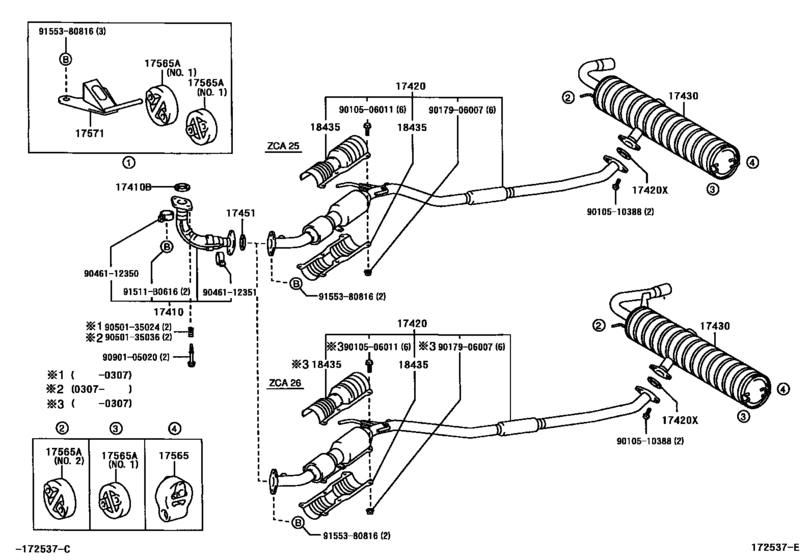

Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-22150 Pipe Assy, Exhaust, Front[05.2000 - 07.2003] 1ZZFE..ZCA2# |
17410-22150 |
US $168.90 |
||
|
17410B
|
17410B
17451-16030 Gasket, Exhaust Pipe[05.2000 - 07.2003] 1ZZFE..ZCA2# |
17451-16030 |
from US $25.29 |
||
|
17420
|
17420
17420-22030 Pipe Assy, Exhaust, Center[05.2000 - 07.2003] 1ZZFE..ZCA26 *114=TOYOTA/CD3T85/Y |
17420-22030 |
US $1,572.48 |
||
|
17420X
|
17420X
90917-06062 Gasket, Exhaust Pipe[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
90917-06062 |
from US $6.10 |
||
| replacement | |||||
|
17420X
|
17420X
90080-43034 Gasket, Exhaust Pipe[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
90080-43034 |
US $32.67 |
||
|
17430
|
17430
17430-22160
Pipe Assy, Exhaust, Tail
[05.2000 - 05.2001] 1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN |
17430-22160 |
— | ||
| replacements | |||||
|
17430
|
17430
17430-22918 Pipe Assy, Exhaust, Tail[05.2000 - 05.2001] 1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN |
17430-22918 |
US $496.20 |
||
|
17430
|
17430
17565-64180 Support, Exhaust Pipe, No.3[05.2000 - 05.2001] 1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN |
17565-64180 |
US $15.52 |
||
|
17430
|
17430
17430-22161
Pipe Assy, Exhaust, Tail
[05.2001 - 08.2001] 1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN |
17430-22161 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-22918 Pipe Assy, Exhaust, Tail[05.2001 - 08.2001] 1ZZFE..ZCA26;1AZFE..ACA21..GCC,GEN |
17430-22918 |
US $496.20 |
||
|
17451
|
17451
90917-06074 Gasket, Exhaust Pipe, Center[05.2000 - 07.2003] 1ZZFE..ZCA2# |
90917-06074 |
from US $6.94 |
||
|
17565
|
17565
17565-15070 Support, Exhaust Pipe, No.3[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
17565-15070 |
from US $7.39 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[12.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# NO.1 |
17565-46040 |
from US $13.38 |
||
|
17565A
|
17565A
17565-64180 Support, Exhaust Pipe, No.3[12.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# NO.2 |
17565-64180 |
US $15.52 |
||
|
17571
|
17571
17571-28070 Bracket, Exhaust Pipe Support, No.1[05.2000 - 07.2003] 1AZFE,1CDFTV,1ZZFE..ACA2#,CLA2#,ZCA2# |
17571-28070 |
US $27.96 |
||
|
18435
|
18435
18435-22010 Protector, Catalytic Converter[05.2000 - 07.2003] 1ZZFE..ZCA2# |
18435-22010 |
US $87.36 |
||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
US $0.96 |
||
|
9010510388
|
9010510388
90105-10388 BOLT |
90105-10388 |
from US $0.96 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112350
|
9046112350
90461-12350 Clamp, Exhaust Pipe |
90461-12350 |
US $7.36 |
||
|
9046112351
|
9046112351
90461-12351 New Genuine Part |
90461-12351 |
US $9.09 |
||
|
9050135024
|
9050135024
90501-35024 SPRING COMPRESSION |
90501-35024 |
from US $4.52 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.86 |
||
