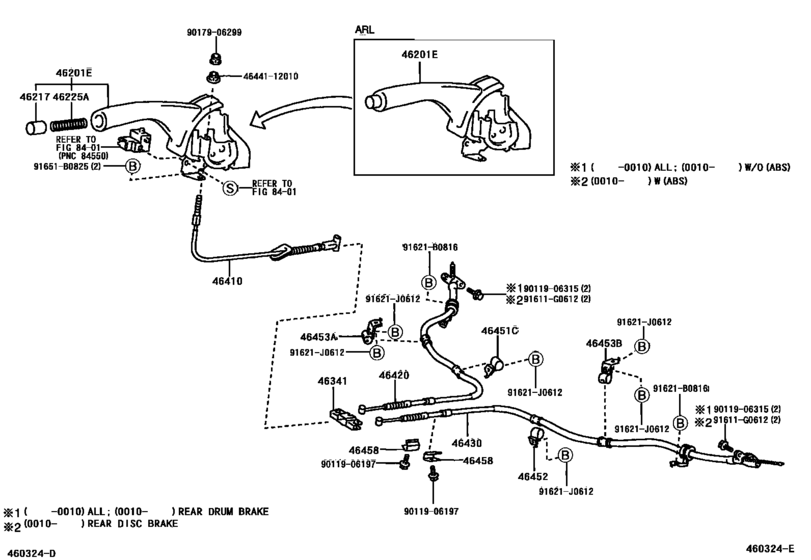

Parking Brake & Cable ([05.2000 - ] (0005- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-42070-C0 Lever Sub-Assy, Parking BrakePARKING BRAKE [05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..LHD BLACK,TRIM14,15 |
46201-42070-C0 |
US $77.17 |
||
|
46217
|
46217
46217-16030-C0 Knob, Parking Brake Release Rod[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN BLACK,TRIM14,15 |
46217-16030-C0 |
US $3.20 |
||
|
46225A
|
46225A
90501-10132 Spring, Compression(For Parking Brake Pawl Rod)[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2#..EUR,GCC,GEN |
90501-10132 |
US $2.04 |
||
|
46341
|
46341
46341-42010 Equalizer, Parking Brake[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46341-42010 |
US $7.86 |
||
|
46410
|
46410
46410-42040 Cable Assy, Parking Brake, No.1[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46410-42040 |
US $32.15 |
||
|
46420
|
46420
46420-42070 Cable Assy, Parking Brake, No.2[05.2000 - 07.2003] ACA21,CLA21,ZCA26 W(REAR DISC BRAKE) |
46420-42070 |
US $62.46 |
||
|
46420
|
46420
46420-42090 Cable Assy, Parking Brake, No.2[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN |
46420-42090 |
US $62.46 |
||
|
46430
|
46430
46430-42070 Cable Assy, Parking Brake, No.3[05.2000 - 07.2003] ACA21,CLA21,ZCA26 W(REAR DISC BRAKE) |
46430-42070 |
US $62.46 |
||
|
46430
|
46430
46430-42090 Cable Assy, Parking Brake, No.3[05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR,GCC,GEN |
46430-42090 |
US $60.63 |
||
|
46451C
|
46451C
46451-42090 Bracket, Parking Brake Cable Support, No.1[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
46451-42090 |
US $4.22 |
||
|
46452
|
46452
46452-42080 Bracket, Parking Brake Cable Support, No.2[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
46452-42080 |
US $4.22 |
||
|
46453A
|
46453A
46451-42100 Bracket, Cable Support, No.3[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
46451-42100 |
US $6.99 |
||
|
46453B
|
46453B
46452-42090 Bracket, Cable Support, No.3[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
46452-42090 |
US $6.99 |
||
|
46458
|
46458
46458-28010 Retainer, Cable[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
46458-28010 |
US $3.68 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
4644112010
|
4644112010
46441-12010 Nut, Wire Adjusting, No.1 |
46441-12010 |
US $2.56 |
||
|
9011906197
|
9011906197
90119-06197 New Genuine Part |
90119-06197 |
US $0.87 |
||
|
9011906315
|
9011906315
90119-06315 BOLT |
90119-06315 |
from US $0.96 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
