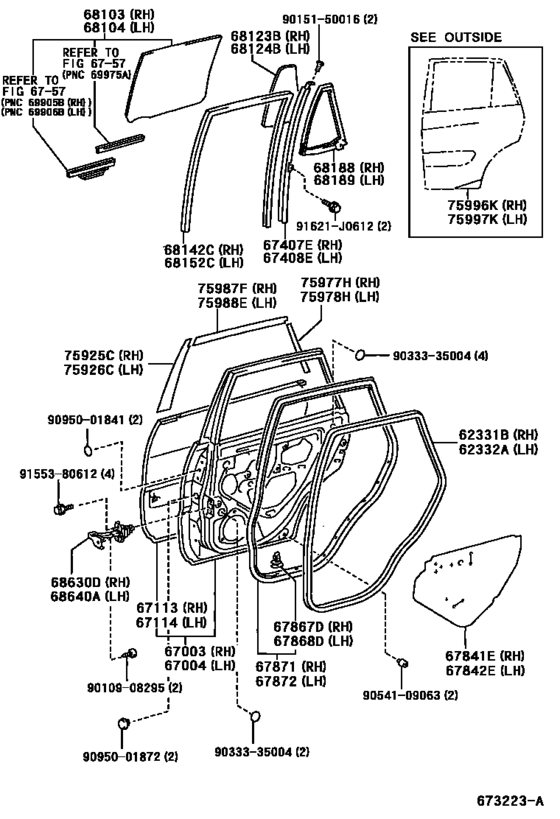

Rear Door Panel & Glass ([07.2003 - ] (0307- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62331B
|
62331B
62331-42010-B0 Weatherstrip, Rear Door Opening Trim, Rh[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62331-42010-B0 |
US $138.32 |
||
| replacement | |||||
|
62331B
|
62331B
62331-42020-B0 Weatherstrip, Rear Door Opening Trim, Rh[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62331-42020-B0 |
US $145.02 |
||
|
62331B
|
62331B
62331-42020-B0 Weatherstrip, Rear Door Opening Trim, Rh[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
62331-42020-B0 |
US $145.02 |
||
|
62332A
|
62332A
62332-42010-B0 Weatherstrip, Rear Door Opening Trim, Lh[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62332-42010-B0 |
US $138.32 |
||
| replacement | |||||
|
62332A
|
62332A
62332-42020-B0
Weatherstrip, Rear Door Opening Trim, Lh
[05.2000 - 07.2003] ACA21..ARL BLUE GRAY,TRIM1#; ACA21,CLA21,ZCA26..EUR,GCC,GEN BLUE GRAY,TRIM14,15 |
62332-42020-B0 |
— | ||
|
62332A
|
62332A
62332-42020-B0
Weatherstrip, Rear Door Opening Trim, Lh
[07.2003 - 11.2005] ACA21,23,CLA21,ZCA26 DK.GRAY,TRIM1# |
62332-42020-B0 |
— | ||
|
67003
|
67003
67003-42040 Panel Sub-Assy, Rear Door, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67003-42040 |
from US $854.67 |
||
|
67003
|
67003
67003-42050 Panel Sub-Assy, Rear Door, Rh[08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(OVER FENDER) |
67003-42050 |
US $854.67 |
||
|
67004
|
67004
67004-42040 Panel Sub-Assy, Rear Door, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67004-42040 |
US $854.67 |
||
|
67004
|
67004
67004-42050 Panel Sub-Assy, Rear Door, Lh[08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(OVER FENDER) |
67004-42050 |
US $854.67 |
||
|
67113
|
67113
67113-42030 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67113-42030 |
US $346.53 |
||
|
67113
|
67113
67113-42040 Panel, Rear Door, Outer RhREAR DOOR, OUTER RH [08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(OVER FENDER) |
67113-42040 |
US $346.53 |
||
|
67114
|
67114
67114-42030 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67114-42030 |
US $346.53 |
||
|
67114
|
67114
67114-42040 Panel, Rear Door, Outer LhREAR DOOR, OUTER LH [08.2002 - 07.2003] ACA21,CLA21,ZCA26 W(OVER FENDER) |
67114-42040 |
US $346.53 |
||
|
67407E
|
67407E
67407-42020 Bar Sub-Assy, Rear Door Window Division, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67407-42020 |
US $47.17 |
||
|
67408E
|
67408E
67408-42020 Bar Sub-Assy, Rear Door Window Division, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67408-42020 |
US $47.17 |
||
|
67841E
|
67841E
67841-42030 Cover, Rear Door Service Hole, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67841-42030 |
US $11.79 |
||
|
67842E
|
67842E
67841-42030 Cover, Rear Door Service Hole, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67841-42030 |
US $11.79 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67867-12150 |
from US $1.60 |
||
|
67871
|
67871
67871-42020
Weatherstrip, Rear Door, Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67871-42020 |
— | ||
|
67872
|
67872
67872-42020
Weatherstrip, Rear Door, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
67872-42020 |
— | ||
|
68103
|
68103
68103-42080 Glass Sub-Assy, Rear Door, Rh[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=3.5,GREEN |
68103-42080 |
US $227.14 |
||
|
68103
|
68103
68103-42090 Glass Sub-Assy, Rear Door, Rh[07.2003 -] ACA21,CLA21,ZCA26..EUR *TT,T=3.5,DARK GRAY |
68103-42090 |
US $250.43 |
||
|
68103
|
68103
68113-42050
Glass Sub-Assy, Rear Door, Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68113-42050 |
— | ||
| replacement | |||||
|
68103
|
68103
68113-42080 Glass Sub-Assy, Rear Door, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68113-42080 |
US $206.75 |
||
|
68104
|
68104
68104-42080 Glass Sub-Assy, Rear Door, Lh[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=3.5,GREEN |
68104-42080 |
US $227.14 |
||
|
68104
|
68104
68104-42090 Glass Sub-Assy, Rear Door, Lh[07.2003 -] ACA21,CLA21,ZCA26..EUR *TT,T=3.5,DARK GRAY |
68104-42090 |
US $250.43 |
||
|
68104
|
68104
68114-42050
Glass Sub-Assy, Rear Door, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68114-42050 |
— | ||
| replacement | |||||
|
68104
|
68104
68114-42080 Glass Sub-Assy, Rear Door, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68114-42080 |
US $206.75 |
||
|
68123B
|
68123B
68123-42050
Glass, Rear Door Quarter Window, Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68123-42050 |
— | ||
| replacement | |||||
|
68123B
|
68123B
68123-42070
Glass, Rear Door Quarter Window, Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68123-42070 |
— | ||
|
68123B
|
68123B
68123-42070
Glass, Rear Door Quarter Window, Rh
[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=3.5,GREEN |
68123-42070 |
— | ||
|
68123B
|
68123B
68123-42080 Glass, Rear Door Quarter Window, Rh[07.2003 -] ACA21,CLA21,ZCA26..EUR *TT,T=3.5,DARK GRAY |
68123-42080 |
US $78.62 |
||
|
68124B
|
68124B
68124-42060
Glass, Rear Door Quarter Window, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68124-42060 |
— | ||
| replacement | |||||
|
68124B
|
68124B
68124-42080 Glass, Rear Door Quarter Window, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 *UVCTT,T=3.5,GREEN |
68124-42080 |
US $70.62 |
||
|
68124B
|
68124B
68124-42080 Glass, Rear Door Quarter Window, Lh[07.2003 -] ACA21,23,CLA21,ZCA26 *UVCT,T=3.5,GREEN |
68124-42080 |
US $70.62 |
||
|
68124B
|
68124B
68124-42090 Glass, Rear Door Quarter Window, Lh[07.2003 -] ACA21,CLA21,ZCA26..EUR *TT,T=3.5,DARK GRAY |
68124-42090 |
US $78.62 |
||
|
68142C
|
68142C
68142-42020 Run, Rear Door Glass, Rh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68142-42020 |
US $41.06 |
||
| replacement | |||||
|
68142C
|
68142C
68142-42021 Run, Rear Door Glass, Rh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68142-42021 |
US $41.06 |
||
|
68142C
|
68142C
68142-42021 Run, Rear Door Glass, Rh[06.2001 - 07.2003] ACA21,CLA21,ZCA26 |
68142-42021 |
US $41.06 |
||
|
68152C
|
68152C
68152-42020 Run, Rear Door Glass, Lh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68152-42020 |
US $41.06 |
||
| replacement | |||||
|
68152C
|
68152C
68152-42021 Run, Rear Door Glass, Lh[05.2000 - 06.2001] ACA21,CLA21,ZCA26 |
68152-42021 |
US $41.06 |
||
|
68152C
|
68152C
68152-42021 Run, Rear Door Glass, Lh[06.2001 - 07.2003] ACA21,CLA21,ZCA26 |
68152-42021 |
US $41.06 |
||
|
68188
|
68188
68188-42020 Weatherstrip, Rear Door Quarter Window, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
68188-42020 |
from US $6.44 |
||
|
68189
|
68189
68189-42020
Weatherstrip, Rear Door Quarter Window, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
68189-42020 |
— | ||
|
68630D
|
68630D
68630-42020
Check Assy, Rear Door, Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
68630-42020 |
— | ||
|
68640A
|
68640A
68640-42020
Check Assy, Rear Door, Lh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
68640-42020 |
— | ||
|
75925C
|
75925C
75925-42010 Tape, Black Out, No.3 Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75925-42010 |
US $54.16 |
||
|
75926C
|
75926C
75926-42010 Tape, Black Out, No.3 Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75926-42010 |
US $54.16 |
||
|
75977H
|
75977H
75977-42010 Stripe, Rear Door Outside, Lower Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75977-42010 |
US $29.27 |
||
|
75978H
|
75978H
75978-42010 Stripe, Rear Door Outside, Lower Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75978-42010 |
US $29.27 |
||
|
75987F
|
75987F
75987-42010 Stripe, Rear Door, Outside, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75987-42010 |
US $39.02 |
||
|
75988E
|
75988E
75988-42010 Stripe, Rear Door, Outside Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
75988-42010 |
US $38.85 |
||
|
75996K
|
75996K
75996-42070 Stripe, Rear Body, RhREAR BODY, RH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR |
75996-42070 |
US $34.36 |
||
|
75997K
|
75997K
75997-42070 Stripe, Rear Body, LhREAR BODY, LH [05.2000 - 07.2003] ACA21,CLA21,ZCA26..EUR |
75997-42070 |
from US $33.89 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.90 |
||
|
9015150016
|
9015150016
90151-50016 New Genuine Part |
90151-50016 |
US $1.28 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.12 |
||
|
9054109063
|
9054109063
90541-09063 Cushion, Front Door Panel |
90541-09063 |
US $3.20 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.76 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
