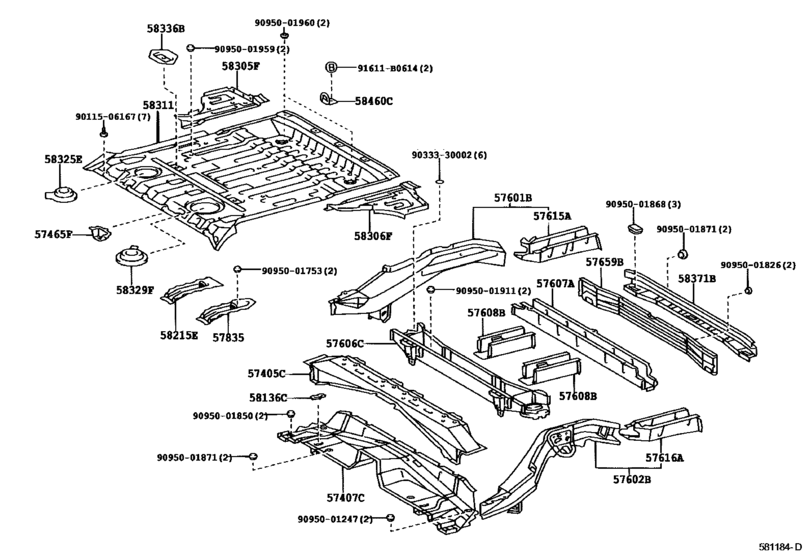

Rear Floor Panel & Rear Floor Member ([05.2000 - ] 5D (0005- )ACA21,23,CLA21,ZCA26) Diagram Toyota RAV4/VANGUARD
- Year
- 2000 - 2005
- Sales region
- Europe
- Frame
- ZCA26
- ENGINE
- 1ZZFE
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- RAV4
- From
- 05.2000
- To
- 11.2005
- Vehicle Model
- RAV4
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57405C
|
57405C
57405-42020 Member Sub-Assy, Center Floor Cross, Rear[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57405-42020 |
US $241.70 |
||
|
57407C
|
57407C
57407-42010 Member Sub-Assy, Center Floor Cross, No.1[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57407-42010 |
US $251.89 |
||
|
57465F
|
57465F
57465-42020 Gusset, Center Floor Crossmember[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57465-42020 |
US $11.21 |
||
|
57601B
|
57601B
57601-42090
Member Sub-Assy, Rear Floor Side, Front Rh
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57601-42090 |
— | ||
|
57602B
|
57602B
57602-42090 Member Sub-Assy, Rear Floor Side, Front Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57602-42090 |
US $391.66 |
||
|
57606C
|
57606C
57606-42070 Member Sub-Assy, Rear Floor Cross, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
57606-42070 |
US $326.14 |
||
|
57607A
|
57607A
57607-42050
Member Sub-Assy, Rear Floor Cross, No.3
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
57607-42050 |
— | ||
|
57608B
|
57608B
57608-42020 Member Sub-Assy, Rear Floor Cross, No.4[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
57608-42020 |
US $68 |
||
|
57615A
|
57615A
57615-42903 Member, Rear Floor Side, Rear Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57615-42903 |
US $119.39 |
||
|
57616A
|
57616A
57616-42903 Member, Rear Floor Side, Rear Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57616-42903 |
US $119.39 |
||
|
57659B
|
57659B
57659-42030
Member, Rear Floor Cross, Rear Inner
[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
57659-42030 |
— | ||
|
57835
|
57835
57835-42010
Reinforcement, Rear No.1 Seat Leg, Rear No.1
[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57835-42010 |
— | ||
| replacement | |||||
|
57835
|
57835
57835-42011 Reinforcement, Rear No.1 Seat Leg, Rear No.1[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
57835-42011 |
US $33.05 |
||
|
58136C
|
58136C
58136-51010 Cover, Front Floor Hole[05.2000 - 09.2000] ACA21,ZCA26 |
58136-51010 |
US $2.04 |
||
|
58215E
|
58215E
58215-42030 Bracket, Rear Seat Mounting, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58215-42030 |
US $44.12 |
||
| replacement | |||||
|
58215E
|
58215E
58215-42031 Bracket, Rear Seat Mounting, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58215-42031 |
US $44.12 |
||
|
58305F
|
58305F
58305-42020 Panel Sub-Assy, Rear Floor Side, Rh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58305-42020 |
from US $58.24 |
||
|
58306F
|
58306F
58306-42040 Panel Sub-Assy, Rear Floor Side, Lh[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58306-42040 |
US $58.24 |
||
|
58311
|
58311
58311-42900 Pan, Rear Floor[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58311-42900 |
US $381.47 |
||
| replacement | |||||
|
58311
|
58311
58311-42902 Pan, Rear Floor[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58311-42902 |
US $382.93 |
||
|
58311
|
58311
58311-42902 Pan, Rear Floor[01.2004 -] ACA21,23,CLA21,ZCA26 |
58311-42902 |
US $382.93 |
||
|
58325E
|
58325E
58325-42030 Cover, Rear Floor Service Hole[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
58325-42030 |
US $14.71 |
||
|
58329F
|
58329F
58329-42030 Cover, Rear Floor Service Hole, No.2[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
58329-42030 |
US $17.65 |
||
|
58336B
|
58336B
58336-42040 Reinforcement, Rear Floor Pan[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
58336-42040 |
US $14.41 |
||
|
58371B
|
58371B
58371-42030 Panel, Body Lower Back, Outer[05.2000 - 07.2003] ACA2#,CLA2#,ZCA2# |
58371-42030 |
US $160.45 |
||
|
58460C
|
58460C
58460-35012 Striker Assy, Luggage Hold Belt[05.2000 - 07.2003] ACA21,CLA21,ZCA26 |
58460-35012 |
from US $10.88 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.88 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $1.31 |
||
|
9095001753
|
9095001753
90950-01753 Plug, Hole(For Rear Body Side Panel) |
90950-01753 |
US $1.46 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001850
|
9095001850
90950-01850 PLUG HOLE |
90950-01850 |
US $0.64 |
||
|
9095001868
|
9095001868
90950-01868 PLUG HOLE |
90950-01868 |
US $4.22 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
from US $1.60 |
||
|
9095001911
|
9095001911
90950-01911 New Genuine Part |
90950-01911 |
US $0.80 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $1.92 |
||
|
9095001960
|
9095001960
90950-01960 Plug, Hole(For Floor Panel) |
90950-01960 |
from US $1.92 |
||
